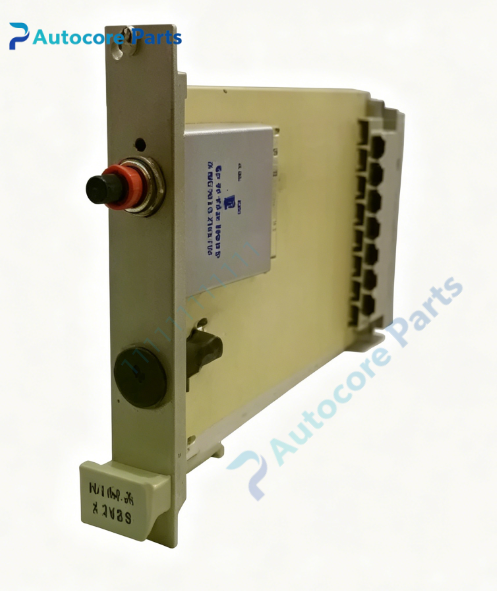

HIMA F7120 Safety Processor Module

Technical Specifications

Model:F7120

Brand:HIMA

Safety certification:SIL3,IEC61508,TÜV certified

Power supply:24V DC

Architecture:1oo2 redundant fail-safe

Diagnosis:Hardware watchdog,periodic comprehensive hardware self-test

Mounting:Plug-in subrack installation

Protection class:IP20

Operating temperature:-20~+60℃

Relative humidity:5~95% non-condensing

Weight:0.47kg

Certification:CE

System compatibility

Designed for HIMA HIQuad safety system,runs safety application program,processes I/O signals and executes safety interlock logic,widely used in petrochemical,chemical plant ESD emergency shutdown and F&G fire gas protection system.

Function

SIL3 redundant safety processor module.It executes safety logic program,collects field I/O data and outputs safety control commands.It is equipped with hardware watchdog and continuous self-test.When hardware fault or safety trip triggered,the module automatically enters predefined safe state.

Installation

Plug into HIQuad rack backplane,match with HIQuad I/O and communication modules,download safety project via SILworX engineering software.

Interface

‑Backplane safety bus connector

‑LED indicators for run,fault and communication status

Circuit feature

1oo2 fail-safe safety architecture,continuous hardware self-test,strong anti-electromagnetic interference,meets SIL3 functional safety requirements for hazardous industrial environment.

Feature

HIQuad series SIL3 safety processor module F7120. Common faults:firmware failure,backplane contact failure,communication circuit damage.Confirm firmware version and rack compatibility before replacement.

Diagnostic

Internal hardware fault or communication error triggers fault alarm;controller executes safety interlock logic.

Built‑in function

F7120 performs safety logic calculation and SOE sequence of event recording for SIS safety instrumented system emergency shutdown protection,widely used for process plant safety spare replacement.

Product Brief

F7120 belongs to HIMA HIQuad family,plug-in SIL3 redundant safety processor module for HIQuad safety subrack. Verify rack compatibility before ordering.Test safety logic and self-diagnosis function during commissioning. ESD anti‑static protection shall be followed during installation.
