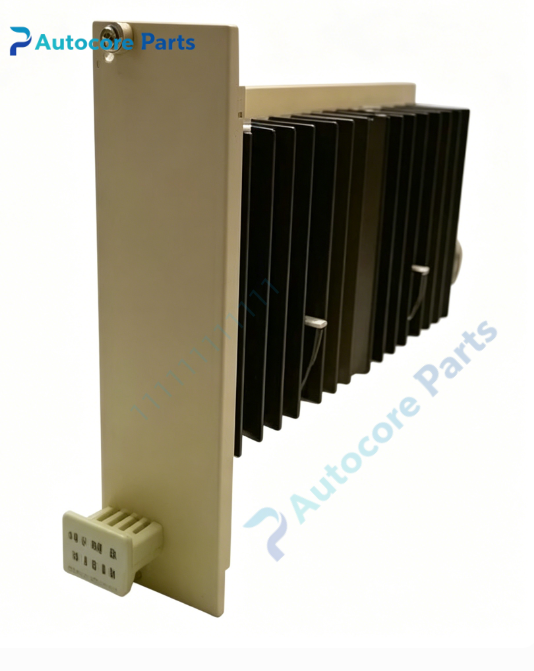

HIMA F711 Safety Power Supply Module

Technical Specifications

Model:F7119

Brand:HIMA

Safety certification:SIL3,IEC61508,TÜV certified

Output:24V DC

Protection:Overvoltage,overcurrent,short circuit protection

Diagnosis:Built-in power fault self-monitoring

Mounting:Plug-in subrack installation

Protection class:IP20

Power supply:24V DC

Operating temperature:-20~+60℃

Relative humidity:5~95% non-condensing

Weight:0.44kg

Certification:CE

System compatibility

Designed for HIMA HIQuad safety rack,supplies stable 24V DC power to CPU and I/O modules,widely used in petrochemical,chemical plant ESD emergency shutdown and F&G fire gas protection system.

Function

SIL3 safety power supply module.It provides regulated 24V DC power for all rack internal modules.It continuously monitors power status and executes self-diagnosis.When overvoltage,overcurrent or short circuit detected,the module triggers fault alarm.

Installation

Plug into HIQuad rack backplane,match with HIQuad CPU and I/O modules.

Interface

‑Backplane safety bus connector

‑LED indicators for run and fault status

Circuit feature

Dual monitoring circuit,continuous hardware self-test,strong anti-electromagnetic interference,meets SIL3 functional safety requirements for hazardous industrial environment.

Feature

HIQuad series SIL3 safety power supply F7119. Common faults:output circuit damage,backplane contact failure,power component aging.Confirm rack compatibility before replacement.

Diagnostic

Power output abnormality or internal hardware fault triggers fault alarm;controller executes safety interlock logic.

Built‑in function

F7119 supplies reliable 24V DC power for SIS safety instrumented system emergency shutdown protection,widely used for process plant safety spare replacement.

Product Brief

F7119 belongs to HIMA HIQuad family,plug-in SIL3 safety power supply module for HIQuad safety subrack. Verify rack compatibility before ordering.Test power output and fault diagnosis function during commissioning. ESD anti‑static protection shall be followed during installation.
