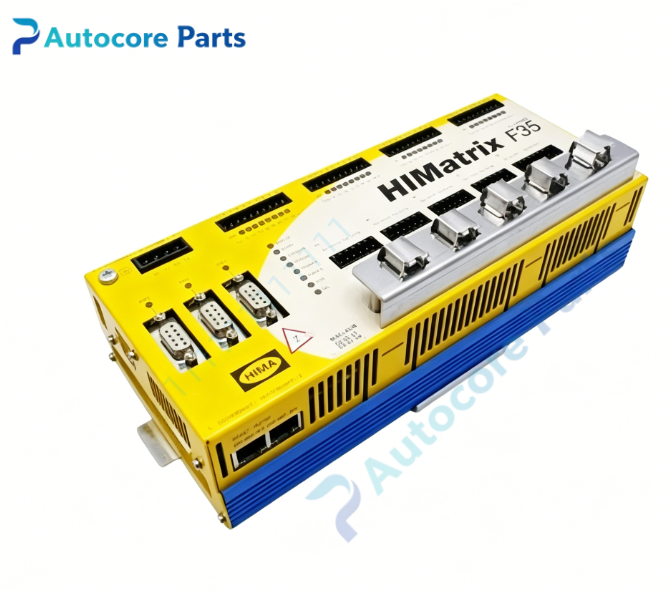

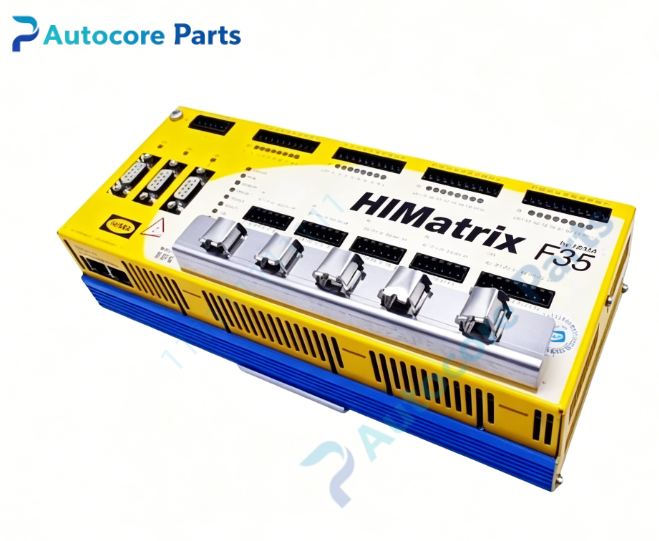

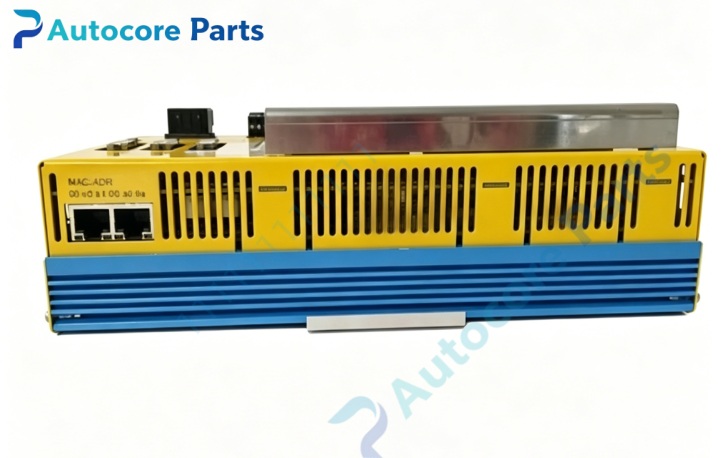

HIMA F35 HIMatrix Compact Safety Controller

Technical Specifications

Model:F35

Brand:HIMA

Safety certification:SIL3,IEC61508,TÜV certified,PL e Cat.4

I/O:24 digital input,8 analog input,8 digital output,2 counter(100kHz)

Communication:4×100Base-TX Ethernet switch,3 fieldbus interfaces

Diagnosis:Full hardware self-diagnosis,loop monitoring

Mounting:Compact metal housing

Protection class:IP20

Power supply:24V DC

Operating temperature:-20~+60℃

Relative humidity:5~95% non-condensing

Weight:0.85kg

Certification:CE

System compatibility

HIMA HIMatrix standalone compact safety controller,widely used in petrochemical,oil & gas ESD emergency shutdown,BMS burner management and F&G fire and gas protection system,supports ATEX Zone2 application.

Function

SIL3 compact safety controller with fully integrated I/O.It executes safety logic program,collects analog and digital field signals,processes counter signals and outputs safety control commands.It supports SOE event sequence recording,multi-task programming and safe ethernet communication.In case of fault or safety trip,the controller enters predefined safe state automatically.

Installation

Mount on cabinet rail,wire field sensors and actuators to the integrated terminals,program and download via SILworX engineering software.

Interface

‑Integrated I/O terminal block

‑4 ethernet ports

‑Fieldbus connectors

‑LED indicators for status and fault

Circuit feature

Dual-core fail-safe safety architecture,continuous hardware self-test,strong anti-electromagnetic interference,meets SIL3 functional safety requirements for hazardous industrial area.

Feature

HIMatrix F35 all-in-one compact safety controller. Common faults:internal logic failure,communication port damage,terminal connector failure.Confirm firmware version before replacement.

Diagnostic

Hardware fault,signal circuit error triggers alarm and safe state;controller executes safety interlock logic.

Built‑in function

F35 executes safety logic,signal acquisition and safety output control for SIS safety instrumented system emergency shutdown,widely used for process plant safety spare replacement.

Product Brief

F35 belongs to HIMA HIMatrix series,all-in-one SIL3 compact safety controller with built-in analog,digital,counter I/O and ethernet switch.Verify application and firmware before ordering.Test logic,communication and diagnosis function during commissioning.
