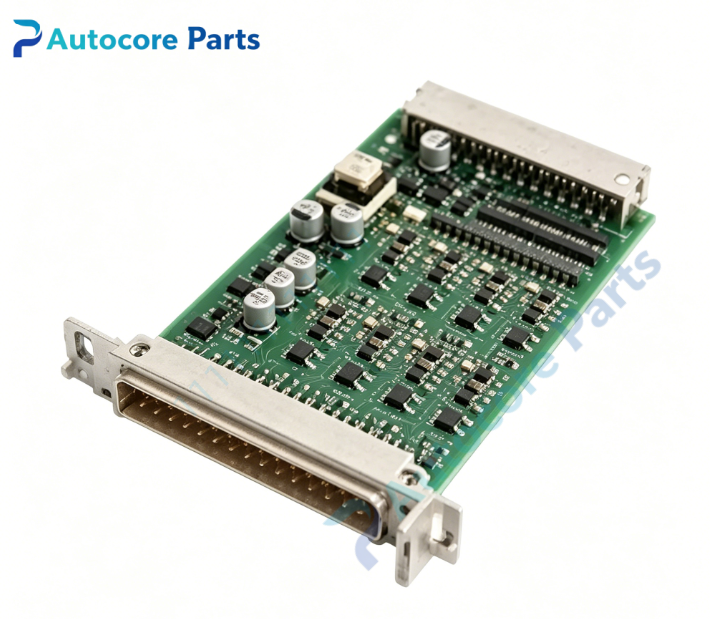

HIMA F343034 Safety Relay Output Module

Technical Specifications

Model:F343034

Brand:HIMA

Safety certification:SIL3,IEC61508,TÜV certified

Channel:4-channel safety relay output

Output type:Relay contact,switching voltage up to 250V AC /110V DC,10mA~4A per channel

Diagnosis:Contact status monitoring and periodic self-test

Mounting:Plug-in subrack installation,4TE width

Protection class:IP20

Power supply:24V DC

Operating temperature:-20~+60℃

Relative humidity:5~95% non-condensing

Weight:0.42kg

Certification:CE

System compatibility

Special variant version of F3430,designed for HIMA HIQuad H41q / H51q safety system,used for safety shutdown circuit control,widely used in petrochemical,chemical plant ESD emergency shutdown and F&G fire gas protection system.

Function

SIL3 4-channel safety relay output module.It receives safety shutdown commands from HIQuad controller,uses relay contacts to switch field safety circuits,supports contact wear monitoring and continuous fault diagnosis for wire break,short circuit and overload.When safety trip triggered,module will switch contacts to safe state for fail-safe protection.

Installation

Plug into HIQuad H41q/H51q rack backplane,wire field safety loads to module terminals,complete hardware configuration via ELOPII engineering software.

Interface

‑4 channels relay contact terminals

‑Backplane safety bus connector

‑LED indicators for channel status and fault

Circuit feature

1oo2 fail-safe safety architecture,periodic hardware self-test,strong anti-electromagnetic interference,meets SIL3 functional safety requirements for hazardous industrial environment.

Feature

HIQuad series special variant SIL3 4-channel safety relay module F343034. Common faults:relay contact aging,internal circuit failure,connector pin failure.Confirm H41q/H51q rack firmware version before replacement.

Diagnostic

Module or wiring fault triggers channel fault alarm;controller executes safety interlock logic.

Built‑in function

F343034 provides relay contact switching for SIS safety instrumented system emergency shutdown protection,widely used for chemical and power plant safety spare replacement.

Product Brief

F343034 belongs to HIMA HIQuad I/O family,plug-in 4-channel SIL3 safety relay output module (special variant of F3430) for H41q/H51q safety subrack. Verify rack compatibility before ordering. Test relay action and fault diagnosis function during commissioning. ESD anti‑static protection shall be followed during installation.
