Extreme Networks X670V Ethernet Switch

Technical SpecificationsModel: X670V Brand: Extreme Networks Product Type: Layer2 / Layer3 10G Managed Top-of-Rack Switch Mounting:19-inch 1U rack mount Operating temperature:0℃ ~ +40℃ Storage temperature:-40℃ ~ +70℃ Relative humidity:10%~90%, non-condensing Available models:

• X670V-48x：48×SFP+ 10G fiber ports

• X670V-48t：48×10GBASE-T copper ports

• Rear VIM expansion slot for uplink/stacking Other ports:

• 1 × RJ45 console port

• 1 × 10/100/1000M out-of-band management port

• 1 × USB port Power supply: Dual hot-swappable AC / DC PSU Cooling: Hot-swappable fan tray, airflow direction selectable Switching capacity: 960 Gbps Forwarding rate: 720 Mpps Weight:6.8 kg

System compatibilityX670V belongs to Extreme X670 series, running ExtremeXOS operating system. Supports SummitStack stacking. Compatible with Extreme X440, X460-G2, WM3700 wireless controller, VSP core switches. Compatible with Extreme SFP+ /QSFP+ optical transceivers and AOC cables. Widely used for data center ToR, enterprise core and metropolitan network spare replacement.

FunctionX670V is high-performance 10G top-of-rack switch. It performs Layer2 switching, VLAN, STP/RSTP, QoS, ACL, IPv4/IPv6 Layer3 routing, VXLAN and data center DCB functions. It supports high-speed stacking and link aggregation. It monitors port link status, transceiver optical power, fan speed, internal temperature and power status. It triggers alarms for port down, link failure, over-temperature or PSU failure. Used to replace defective 10G ToR switches in data center fabric.

InstallationPower off chassis before installation. Mount X670V into 19-inch rack. Install SFP+ transceivers into ports. Insert VIM module for uplink if needed. Connect power, Ethernet/fiber cables and console cable. Configure ExtremeXOS, VLAN and routing policy. Verify port link and network traffic before putting into production.

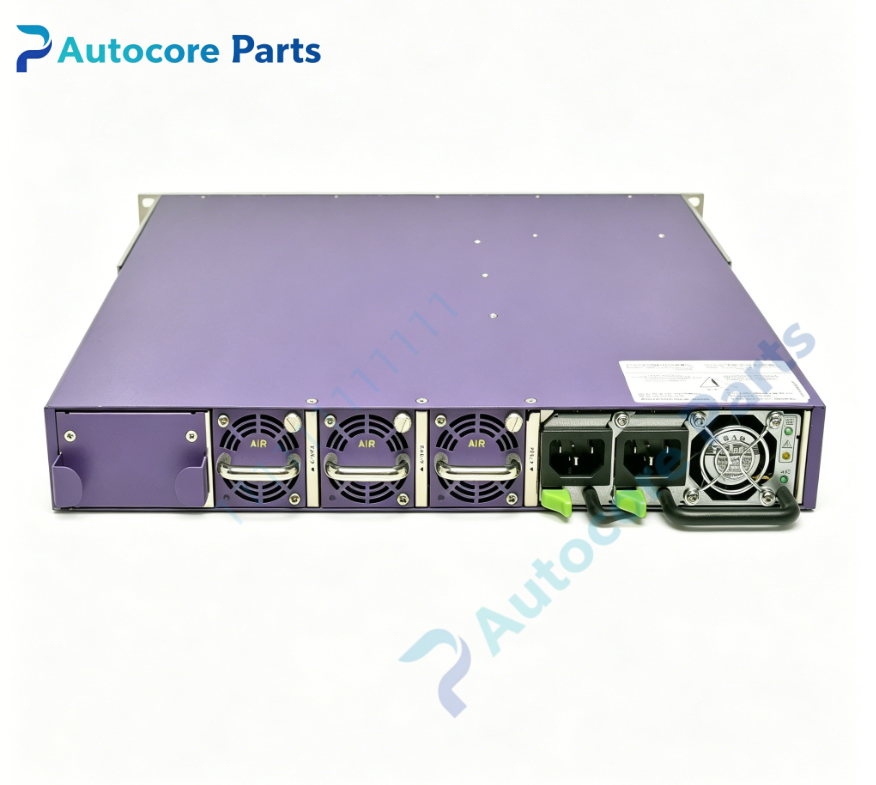

Interface48×10G ports(SFP+ or RJ45 based on variant), rear VIM slot, RJ45 console port, out-of-band management port, USB port, dual power slots, fan vents, LED status indicators for Extreme Networks X670V.

FeatureOriginal Extreme Networks X670V 10G high-density switch, wire-speed non-blocking forwarding, ExtremeXOS OS, redundant hot-swappable power and fans, advanced data center features, stacking capability, built-in self-diagnostic function. This spare supports data center top-of-rack deployment.

DiagnosticSwitch no power LED: check AC/DC input and PSU installation. Port link down: verify cable/transceiver insertion, optical power and port admin status. Link flapping: inspect fiber/cable routing, tension and transceiver DDM readings. Over-temperature alarm: check fan tray operation and cabinet airflow.

Product BriefX670V is Extreme Networks 1U rack high-density 10G top-of-rack switch, available in 48-port SFP+ fiber or 48-port 10GBASE-T copper versions, with VIM uplink expansion and redundant power/fan, classic spare part for data center 10G network overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
