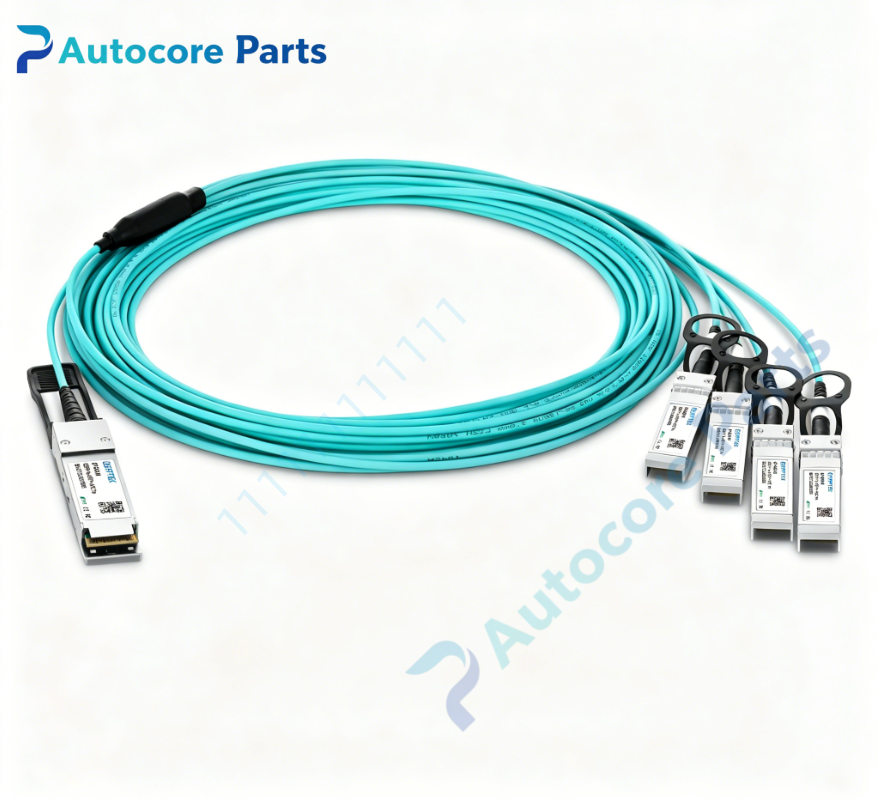

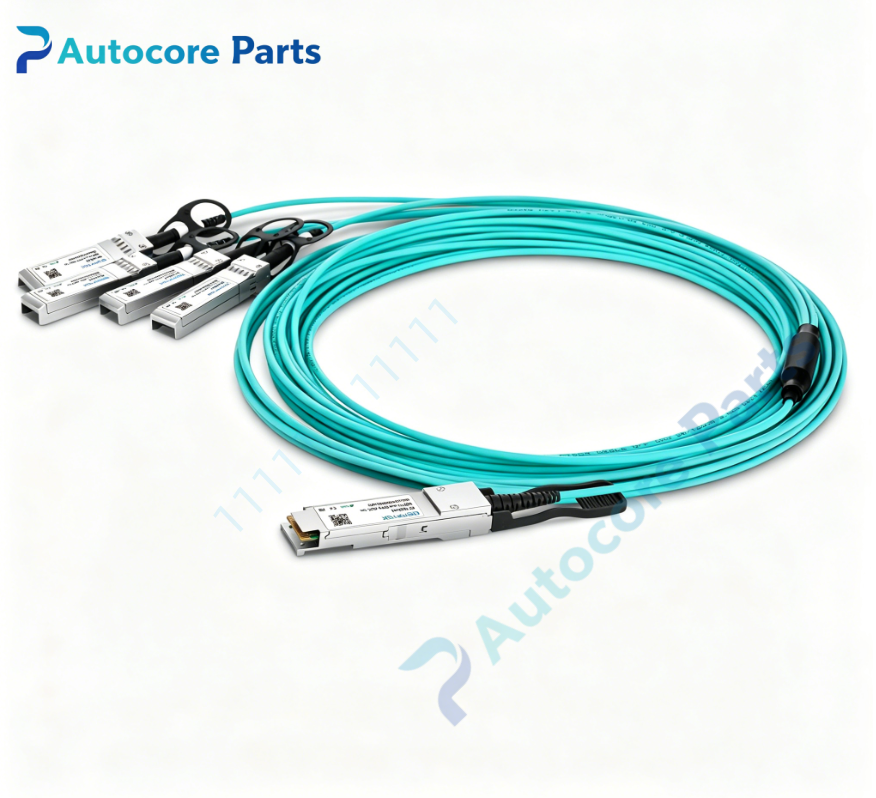

Extreme Networks 10GB-4-F01-QSF Breakout Active Optical Cable

Technical SpecificationsModel: 10GB-4-F01-QSF Brand: Extreme Networks Product Type: QSFP+ to 4×SFP+ Breakout Active Optical Cable (AOC) Mounting: Plug into QSFP+ port of Extreme rack switch Operating temperature:0℃ ~ +70℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~95%, non-condensing Speed:40GBASE-SR4, breakout to 4×10GBASE-SR Wavelength:850nm Fiber type: OM3 / OM4 multimode fiber Length:1 meter Main interface: QSFP+ Breakout ends:4×SFP+ Digital monitoring: DDM / DOM Weight:0.12 kg

System compatibility10GB-4-F01-QSF is Extreme Networks 40G to 4×10G breakout active optical cable. Compatible with Extreme Summit X620, X650, X670, X460-G2, VSP7400 switches supporting QSFP+ ports. It breaks one 40G port into four independent 10G ports for server access. Widely used inside cabinet short-distance fan-out connection and spare replacement.

Function10GB-4-F01-QSF integrates optical transceivers inside the cable assembly. It splits 40G SR4 parallel optical lanes into four separate 10G transmission channels. It supports DDM to monitor transmit optical power, receive power, module temperature and supply voltage. It triggers alarms for optical signal loss, over-temperature or module fault. Used to replace faulty short breakout AOC for 40G to 10G fan-out links.

InstallationPower off before installation. Insert QSFP+ main end into the switch QSFP+ slot. Connect four SFP+ tails to 10G ports on servers or secondary switches. Verify module recognition on ExtremeXOS/VOSS, check optical power and port link status before putting into production.

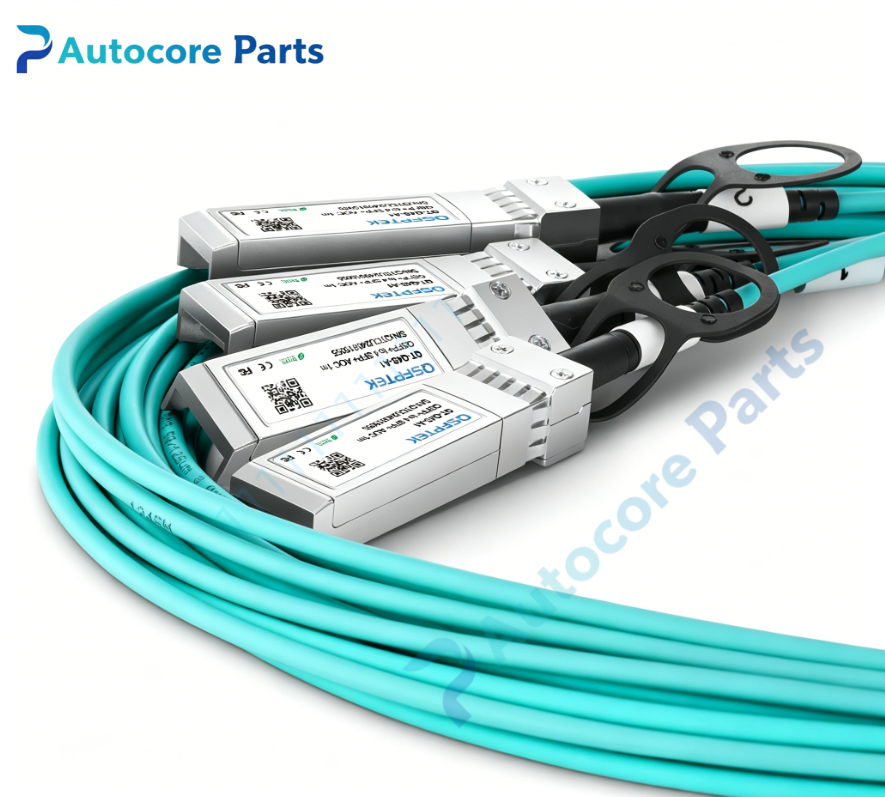

InterfaceQSFP+ edge connector, four SFP+ edge connectors, internal multimode fiber assembly, DDM digital diagnostic interface for Extreme Networks 10GB-4-F01-QSF active optical cable.

FeatureOriginal Extreme Networks 1m QSFP+ breakout AOC, hot-pluggable, 4-lane 40G to 4×10G fan-out, DDM real-time monitoring, low power consumption, compliant with IEEE 802.3ae standard. This spare supports ultra-short fan-out wiring inside data center cabinets.

DiagnosticModule undetected: check insertion, slot status and switch firmware compatibility. Port link down: verify SFP+ tails, breakout port configuration, optical power and port admin status. Link flapping: inspect cable bending, tension and cable routing inside cabinet.

Product Brief10GB-4-F01-QSF is Extreme Networks 1-meter QSFP+ to 4×SFP+ breakout active optical cable. It breaks one 40G QSFP+ port into four independent 10G ports for in-cabinet server connection, classic spare part for data center short fan-out network overhaul.
