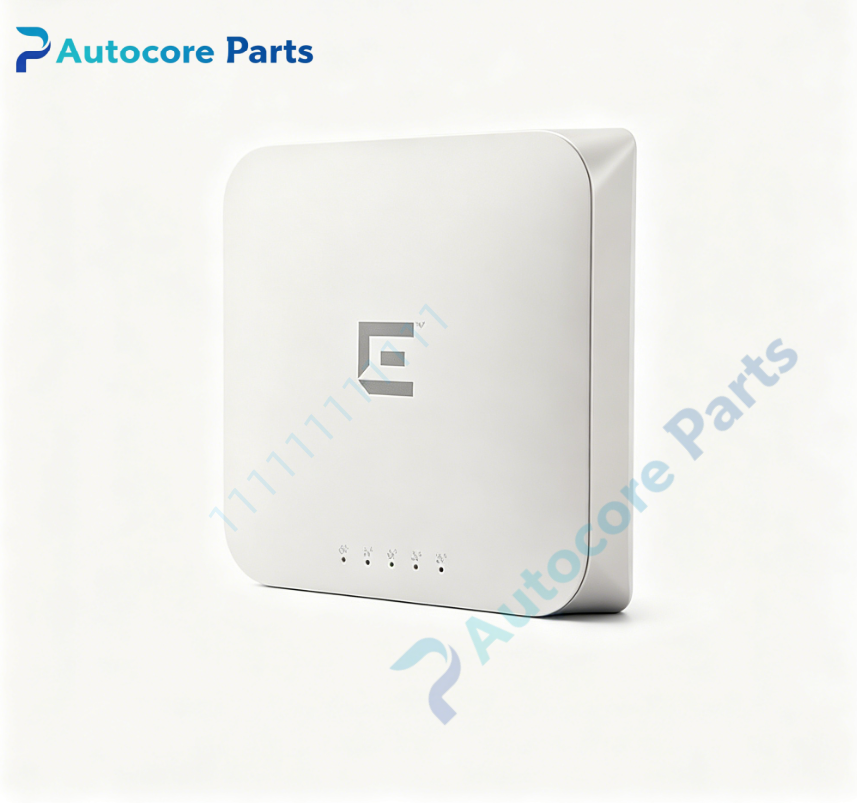

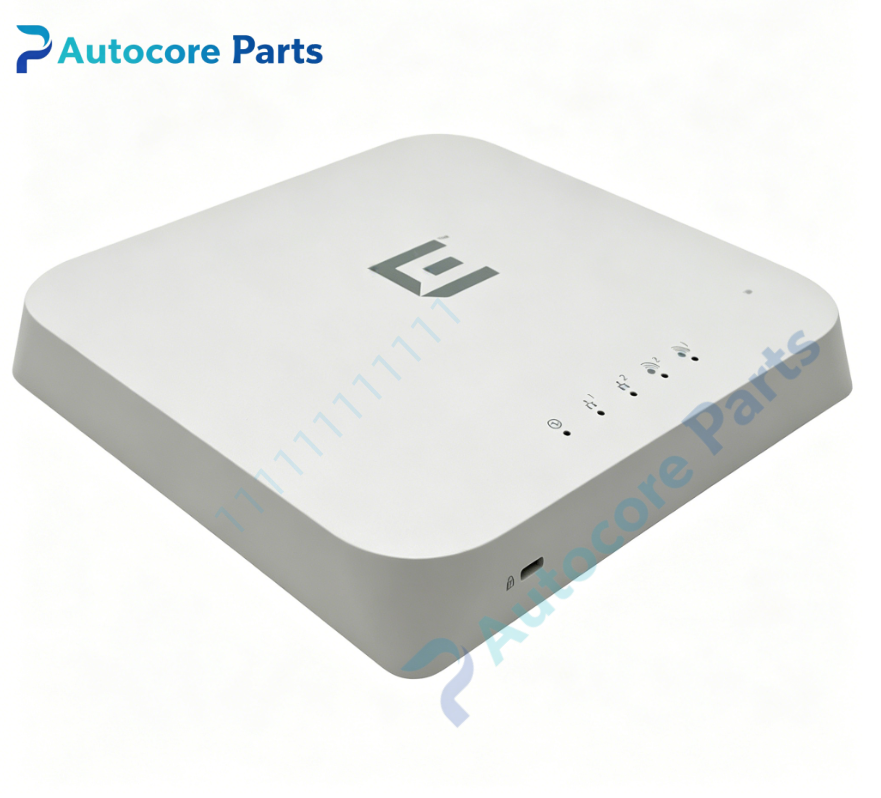

Extreme Networks WS-AP3825i Wireless Access Point

Technical SpecificationsModel: WS-AP3825i Brand: Extreme Networks Product Type: Indoor Managed Wireless Access Point Mounting: Ceiling T-bar mount or wall mount Operating temperature:0℃ ~ +50℃ Storage temperature:-40℃ ~ +70℃ Relative humidity:10%~90%, non-condensing Radio:

• Dual radio: 2.4GHz + 5GHz, 3×3:3 MIMO

• Wi-Fi standard: 802.11ac / a / b / g / n Antenna: 6 built-in internal single-band antennas Ports:

• 2 × 10/100/1000BASE-T RJ45 gigabit Ethernet ports

• 1 × RJ45 console port Power supply: 802.3af PoE, or 12V DC external power Max power consumption:12.94W Weight:0.58 kg

System compatibilityWS-AP3825i is Extreme Networks indoor wireless access point. It must be managed by Extreme wireless controllers such as WM3400 / WM3700. Compatible with Extreme X430, X440, X460-G2 PoE switches. Widely used for office, hospital, campus wireless coverage and spare replacement.

FunctionWS-AP3825i is enterprise indoor Wi-Fi access point. It broadcasts multiple SSIDs, provides Wi-Fi access for laptops, mobile phones and tablets. It supports radio resource control, 802.11r fast roaming, wireless security, voice over WLAN and RTLS location service. It reports AP status, client count and radio signal to wireless controller. It triggers alarms for power loss, link failure and radio fault. Used to replace defective indoor wireless access points.

InstallationPower off before installation. Mount AP on ceiling T-rail or wall bracket. Connect PoE Ethernet cable to LAN port. Connect console cable for debugging if needed. Discover and register AP on Extreme wireless controller, configure SSID and radio parameters. Verify wireless client connection before putting into production.

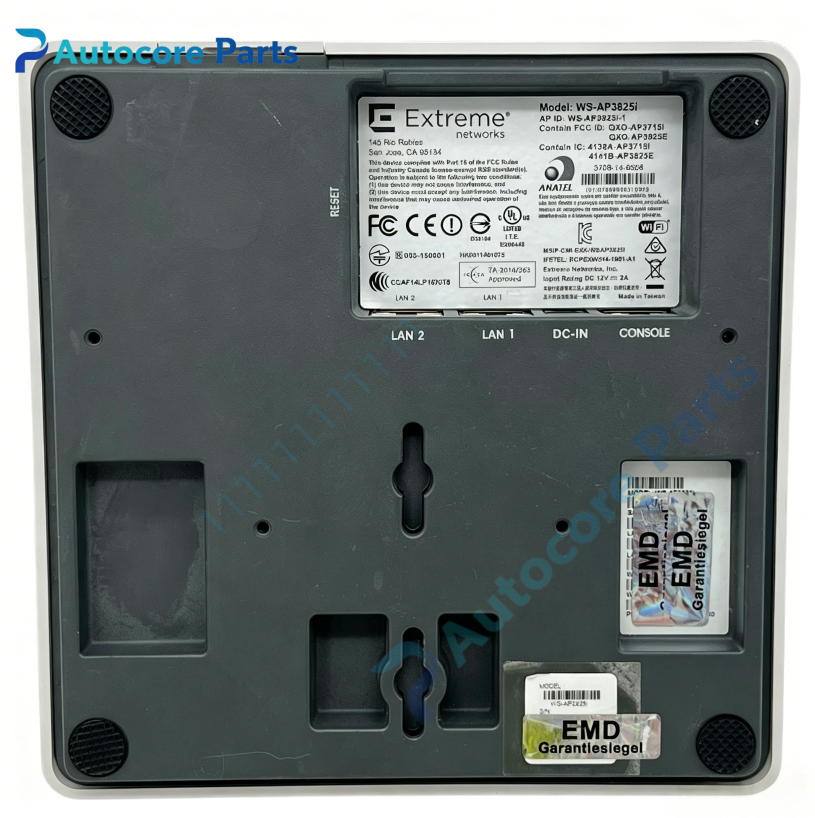

Interface2×Gigabit RJ45 ports, RJ45 console port, reset button, LED status indicators, built-in internal antennas for Extreme Networks WS-AP3825i.

FeatureOriginal Extreme Networks WS-AP3825i indoor AP, 3×3 MIMO dual band, integrated internal antennas, support 802.11ac, PoE powered, seamless roaming, multi-SSID and wireless security, built-in self-diagnostic function. This spare supports enterprise indoor wireless coverage.

DiagnosticAP no power LED: check PoE switch port power supply and cable. AP cannot register to controller: verify VLAN, port status and controller discovery configuration. Poor wireless signal: check ambient interference and antenna orientation. Client roaming abnormal: inspect radio power and channel planning.

Product BriefWS-AP3825i is Extreme Networks indoor dual radio 802.11ac Wi-Fi access point with 6 internal antennas, powered by 802.3af PoE, centrally managed by wireless LAN controller, classic spare part for enterprise indoor wireless network overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
