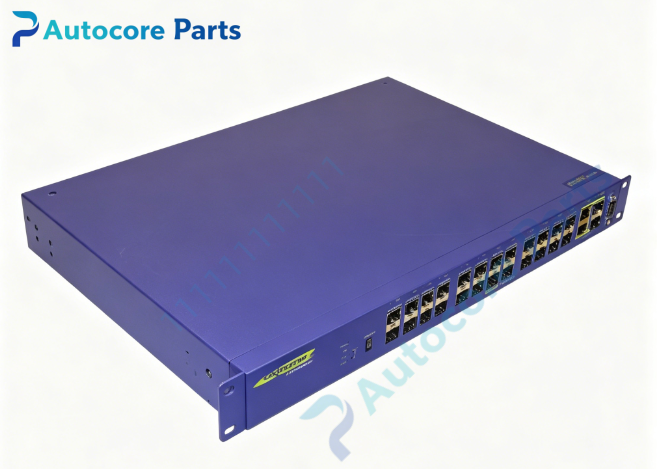

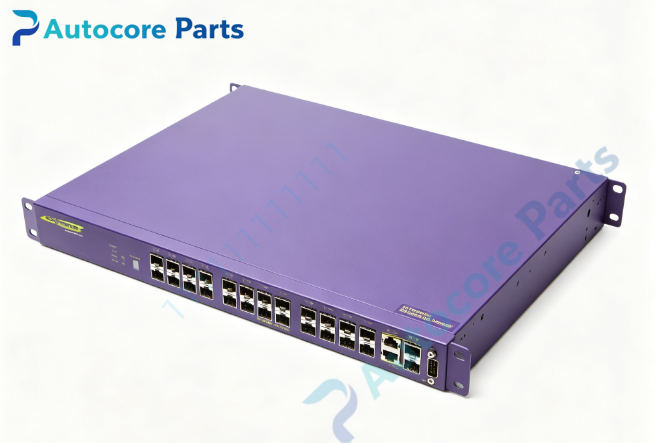

Extreme Networks Summit X250e-24X Fiber Edge Access Switch

Technical SpecificationsModel：Summit X250e-24X Brand：Extreme Networks Product Type: 1U rack mount legacy stackable enterprise non-PoE Fast Fiber Ethernet access switch

Front Ports:

• 24 × SFP slots for 100BASE-X optical transceivers (FX/LX10/BX)

• 2 × combo gigabit ports (shared PHY): either 10/100/1000BASE-T RJ45 or 1G SFP fiber

• 1 × RJ45 serial console port

• LED indicators for port link, activity, stack ID and system status

Rear Panel Interfaces:

• 1 × OOB 10/100BASE-T management port

• 2 × dedicated SummitStack stacking ports

• AC power inlet

• External redundant power connector, compatible with EPS-160 external PSU

Switching & Layer Features: Switch Fabric: 8.8 Gbps Forwarding Rate: 6.6 Mpps MAC Address Table: 8K entries Max Jumbo Frame: 9216 bytes VLAN: Up to 4094 802.1Q tagged VLAN Routing: IPv4 static routing Security: 802.1X, MAC filtering, storm control, DoS protection QoS: Hardware L2-L4 classification, 8 priority queues per port Stacking: SummitStack, combine multiple X250e switches into single logical unit Management: SNMP, SSH, Web GUI, ExtremeXOS CLI

Power & Mechanical: Power Supply: Built-in universal AC 100-240V Cooling: Built-in cooling fan Operating temperature：0℃ ~ +40℃ Dimension: 441mm × 44mm × 308mm Weight: Approx 3.1 kg Mounting: Standard 19-inch 1U rack bracket Software OS: ExtremeXOS (end of sales legacy platform, max EXOS 15.3.x)

System compatibility

Summit X250e-24X belongs to X250e legacy edge switch family. Compatible with 100BASE-X SFP transceivers and 1G SFP uplink modules. Can stack with other X250e series switches. External EPS-160 redundant power supply supported. This is end-of-sale fiber access model, used for maintenance replacement of old fiber campus networks.

Function

Summit X250e-24X is 1U stackable Fast Fiber access switch for legacy enterprise campus. 24 SFP slots accept 100M fiber transceivers to connect remote endpoints over fiber. Two combo gigabit ports provide flexible uplink choice over copper or fiber. Dedicated SummitStack ports merge multiple switches into one management domain to simplify configuration. Supports 802.1X user authentication and hardware QoS for voice and video traffic. External redundant power interface improves network uptime. Widely deployed for old campus, factory workshop and building interconnection fiber access layer spare replacement.

InstallationFollow ESD protection procedure. Mount switch to standard 19-inch 1U rack. Connect AC power cord. Insert 100M SFP transceivers for access ports and 1G SFP for uplink if needed. Deploy SummitStack cable for multi-unit stacking. Access serial console port for initial ExtremeXOS configuration, set VLAN, ACL and QoS policy. Verify stack synchronization and port connectivity after power-up.

Interface24×100BASE-X SFP slots,2×gigabit combo ports,serial console port,OOB management port,2×SummitStack stacking ports,AC power inlet,redundant power connector,LED indicators for Extreme Networks Summit X250e-24X.

FeatureOriginal Extreme Networks Summit X250e-24X legacy fiber edge switch,24×100M SFP fiber + 2 gigabit combo uplink,SummitStack stacking,ExtremeXOS OS,support external redundant power. This spare switch is used for legacy fiber campus wired access network maintenance and hardware replacement.

DiagnosticSwitch boot failure: Check AC power input and cable, verify EPS-160 redundant power wiring if used. SFP port link down: Confirm transceiver compatibility, check fiber cable quality and port configuration. Stack split: Inspect stacking cable and match ExtremeXOS firmware version on stack members. SFP module not recognized: Verify SFP is 100BASE-X type, clean fiber end face.

Product BriefSummit X250e-24X is Extreme X250e series 1U 24-port 100M fiber stackable access switch with dual gigabit combo uplink ports,classic spare for legacy enterprise fiber wiring closet network.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and replacement.
