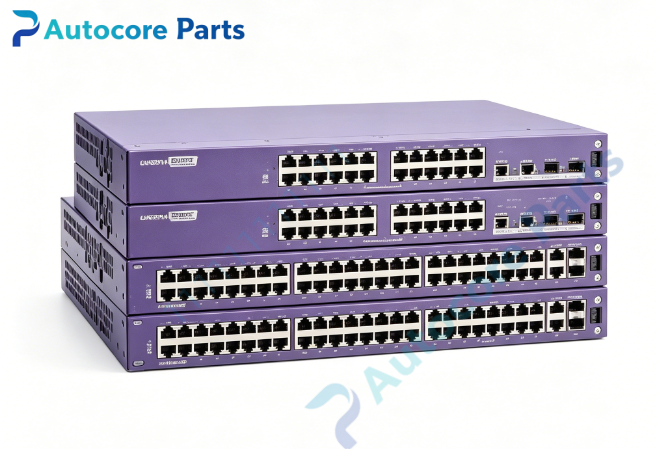

Extreme Networks Summit X250e-48p PoE Edge Access Switch

Technical SpecificationsModel：Summit X250e-48p Brand：Extreme Networks Product Type: 1U rack mount legacy stackable enterprise PoE Fast Ethernet access switch

Front Ports:

• 48 × 10/100BASE-TX RJ45 PoE ports, IEEE802.3af, max 15.4W per port

• 2 × combo gigabit ports (shared PHY): either 10/100/1000BASE-T RJ45 or 1G SFP fiber

• 1 × RJ45 serial console port

• LED indicators for port link, activity, stack ID and system status

Rear Panel Interfaces:

• 1 × OOB 10/100BASE-T management port

• 2 × dedicated SummitStack stacking ports

• Built-in internal AC power inlet

• External redundant power connector, compatible with EPS-600LS external PoE power module

Switching & Layer Features: Switch Fabric: 97.6 Gbps Forwarding Rate: 39.9 Mpps MAC Address Table: 8K entries Max Jumbo Frame: 9216 bytes VLAN: Up to 4094 802.1Q tagged VLAN Routing: IPv4 static routing Security: 802.1X, MAC filtering, storm control, DoS protection QoS: Hardware L2-L4 classification, 8 priority queues per port Stacking: SummitStack, combine multiple X250e switches into single logical unit Management: SNMP, SSH, Web GUI, ExtremeXOS CLI

Power & Mechanical: Power Supply: Built-in universal AC 100-240V, internal PSU supplies 370W PoE budget; full 15.4W per all 48 ports requires EPS-600LS external power module Cooling: Built-in cooling fan Operating temperature：0℃ ~ +40℃ Mounting: Standard 19-inch 1U rack bracket Software OS: ExtremeXOS (end-of-sale legacy platform, max EXOS 15.3.x)

System compatibility

Summit X250e-48p belongs to X250e legacy edge switch family. Compatible with 1G SFP transceivers. Can stack with other X250e series switches. External EPS-600LS PSU needed to enable full PoE power on all 48 ports. It is end-of-sale PoE model, used for maintenance replacement of old campus voice/wireless AP access networks.

Function

Summit X250e-48p is 1U stackable Fast Ethernet PoE access switch for legacy enterprise campus. 48 PoE ports deliver power and data for IP phones, wireless access points and surveillance cameras. Two combo gigabit ports provide flexible uplink choice over copper or fiber. Dedicated SummitStack ports merge multiple switches under a single management domain. Supports 802.1X user authentication and hardware QoS for voice priority traffic. External EPS-600LS power module unlocks full power budget for all PoE ports. Widely deployed for old office, school and hospital legacy PoE access layer spare replacement.

InstallationFollow ESD protection procedure. Mount switch to standard 19-inch 1U rack. Connect AC power cord. Install EPS-600LS external PSU if full PoE capacity required. Insert SFP transceiver if fiber uplink is needed. Deploy SummitStack cable for multi-unit stacking. Access serial console port for initial ExtremeXOS configuration, set VLAN, ACL and QoS policy. Verify stack synchronization and port connectivity after power-up.

Interface48×10/100BASE-T PoE RJ45 ports,2×gigabit combo ports,serial console port,OOB management port,2×SummitStack stacking ports,AC power inlet,external PoE power connector,LED indicators for Extreme Networks Summit X250e-48p.

FeatureOriginal Extreme Networks Summit X250e-48p legacy PoE edge switch,48×10/100 PoE ports + 2 gigabit combo uplink,SummitStack stacking,ExtremeXOS OS,external EPS-600LS PSU for full PoE budget. This spare switch is used for legacy campus PoE wired access network maintenance and hardware replacement.

DiagnosticSwitch boot failure: Check AC power input and cable, verify EPS-600LS external power wiring if used. PoE port no power: Confirm external PSU installation, check PoE budget, inspect cable and powered device compatibility. Combo port link down: Confirm SFP compatibility, check cable and combo mode selection. Stack split: Inspect stacking cable and match ExtremeXOS firmware version on stack members.

Product BriefSummit X250e-48p is Extreme X250e series 1U 48-port Fast Ethernet stackable PoE access switch with dual gigabit combo uplink ports,classic spare for legacy enterprise campus PoE wiring closet network.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and replacement.
