Extreme Networks X460-G2-48P-10 Ethernet Switch

Technical SpecificationsModel: X460-G2-48P-10 Brand: Extreme Networks Product Type: Layer2 / Layer3 Gigabit PoE+ Managed Aggregation Switch Mounting:19-inch 1U rack mount Operating temperature:0℃ ~ +50℃ Storage temperature:-40℃ ~ +70℃ Relative humidity:10%~95%, non-condensing Ports:

• 48 × 10/100/1000BASE-T RJ45 PoE+ ports (30W per port, IEEE802.3af/at)

• 4 × SFP+ 10G fiber uplink slots

• 1 × RJ45 console port

• 1 × 10/100/1000M out-of-band management port

• 1 × USB 2.0 port PoE budget: 740W Power supply: Dual hot-swappable AC/DC PSU slots Fans: Hot-swappable fan tray, front-to-back airflow Switching capacity: 176 Gbps Forwarding rate: 131 Mpps Weight:6.2 kg

System compatibilityX460-G2-48P-10 belongs to Extreme X460-G2 series, running ExtremeXOS operating system. Supports SummitStack stacking. Compatible with Extreme X430, X440, X620, VSP core switches. Compatible with Extreme SFP/SFP+ optical transceivers. Widely used for large campus, hospital, factory PoE aggregation network maintenance and spare replacement.

FunctionX460-G2-48P-10 is enterprise aggregation PoE switch. It supplies PoE+ power for high-density wireless APs, IP cameras and IP phones. It performs Layer2 switching, VLAN, STP/RSTP, QoS traffic scheduling, ACL filtering and IPv4/IPv6 Layer3 routing. It supports link aggregation and SummitStack stacking. It monitors port link status, PoE power consumption, transceiver optical power, fan speed and internal temperature. It triggers alarm for port down, PoE overload, over-temperature or power module failure. Used to replace defective high-density PoE aggregation switches.

InstallationPower off chassis before installation. Mount switch in 19-inch rack. Install SFP+ transceivers into uplink slots. Connect power, Ethernet cables and console cable. Configure ExtremeXOS, VLAN and PoE power profile. Verify port link, PoE allocation and network traffic before putting into production.

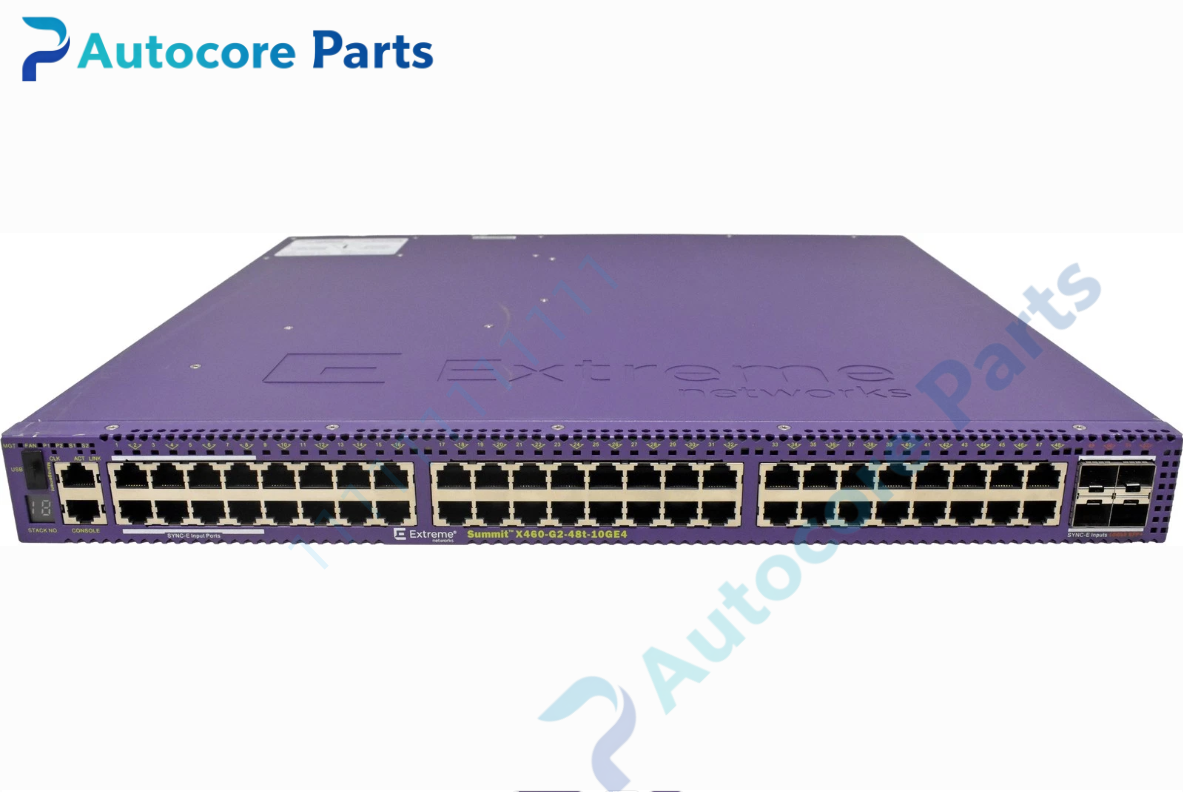

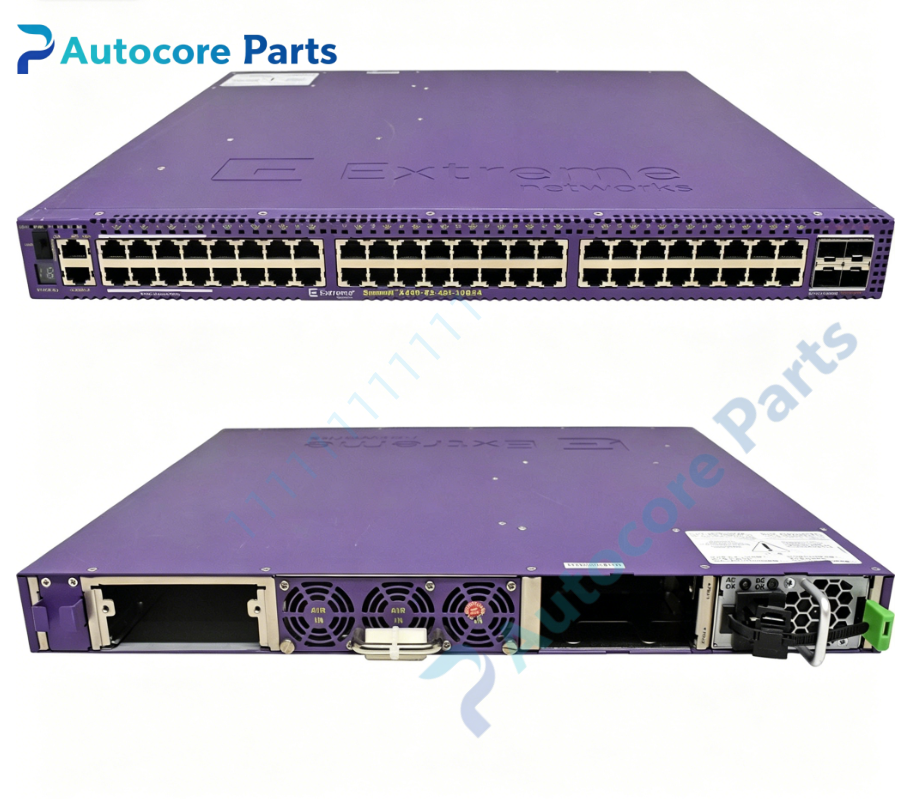

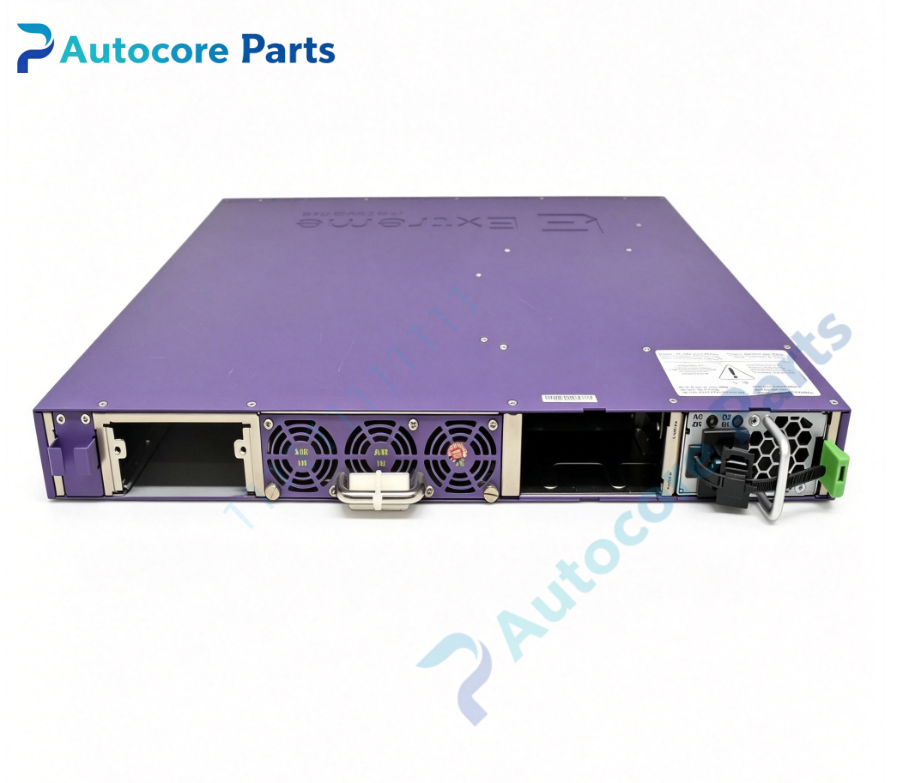

Interface48×PoE gigabit RJ45 ports,4×SFP+ 10G uplink slots, RJ45 console port, out-of-band management port, USB port, dual power inlets, fan vents, LED status indicators for Extreme Networks X460-G2-48P-10.

FeatureOriginal Extreme Networks X460-G2 high density PoE switch, dual hot-swappable power and fans, ExtremeXOS OS, 10G SFP+ uplink, stacking capability, advanced security and QoS functions, built-in self-diagnostic function. This spare supports large-scale enterprise PoE aggregation deployment.

DiagnosticNo power LED: check AC/DC input and power module wiring. PoE cannot output: verify PoE budget, port PoE enable and cable quality. Port link down: check copper cable, SFP+ transceiver, optical power and port admin status. Over-temperature alarm: inspect fan tray operation and cabinet dust accumulation.

Product BriefX460-G2-48P-10 is Extreme Networks 1U rack 48-port Gigabit PoE+ aggregation switch with 4×10G SFP+ uplink slots, running ExtremeXOS and supporting stacking, classic spare part for large campus high-density PoE network overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
