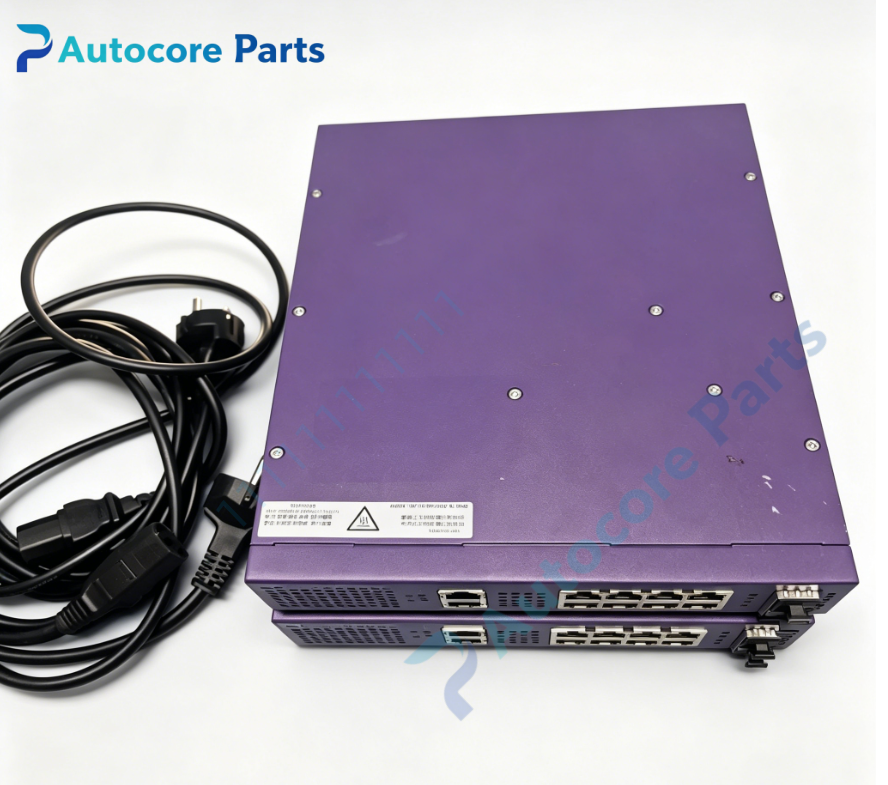

Extreme Networks X430-8P Ethernet Switch

Technical SpecificationsModel: X430-8P Brand: Extreme Networks Product Type: Compact Layer2 / Layer3 Gigabit PoE+ Managed Access Switch Mounting: Wall mount or 10-inch mini rack mount Operating temperature:0℃ ~ +45℃ Storage temperature:-40℃ ~ +70℃ Relative humidity:10%~95%, non-condensing Ports:

• 8 × 10/100/1000BASE-T RJ45 PoE+ ports (30W max per port, IEEE802.3af/at)

• 2 × SFP gigabit fiber uplink slots

• 1 × RJ45 console port PoE budget: 240W Power supply: Built-in AC 100~240V Cooling: Fanless silent design Switching capacity: 20 Gbps Forwarding rate: 14.9 Mpps Weight:1.8 kg

System compatibilityX430-8P belongs to Extreme X430 series, running ExtremeXOS operating system. Supports stacking, compatible with Extreme X440, X460, X620 core switches. Compatible with Extreme 1G SFP optical transceivers. Widely used for small office, retail, classroom, IP camera and wireless AP access network spare replacement.

FunctionX430-8P is compact edge PoE access switch. It supplies PoE+ power for wireless APs, IP cameras and IP phones. It performs Layer2 switching, VLAN, STP/RSTP, QoS traffic scheduling, ACL filtering and basic Layer3 routing. It monitors port link status, PoE power consumption and internal temperature, triggers alarm for port down, PoE overload or over-temperature. Used to replace defective compact PoE switches in small branch networks.

InstallationPower off before installation. Mount switch on wall or mini rack. Insert SFP transceivers into uplink slots. Connect AC power, Ethernet cables and console cable. Configure ExtremeXOS, VLAN and PoE profile. Verify port link and network traffic before putting into production.

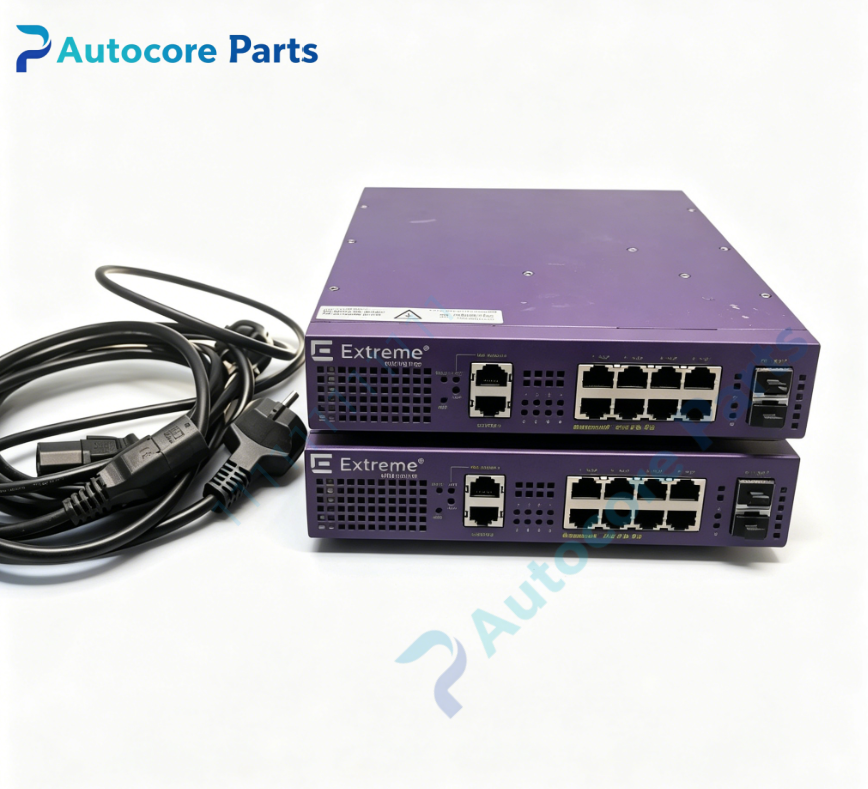

Interface8×PoE gigabit RJ45 ports,2×SFP uplink slots, RJ45 console port, AC power inlet, LED status indicators for Extreme Networks X430-8P.

FeatureOriginal Extreme Networks X430-8P compact PoE switch, fanless silent operation, small footprint, ExtremeXOS OS, 8 port PoE+, 2 SFP uplink ports, security and QoS functions, built-in self-diagnostic function. This spare supports quiet small-site edge network deployment.

DiagnosticNo power LED: check AC input power and power inlet wiring. PoE no output: verify PoE budget, port PoE enable setting and cable quality. Port link down: check copper cable, SFP transceiver and port administrative status. Over-temperature alarm: inspect enclosure dust accumulation and ambient temperature.

Product BriefX430-8P is Extreme Networks fanless compact 8-port Gigabit PoE+ access switch with 2 SFP uplink ports. It provides PoE power and data connection for small branch terminals, classic spare part for small-site edge network overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
