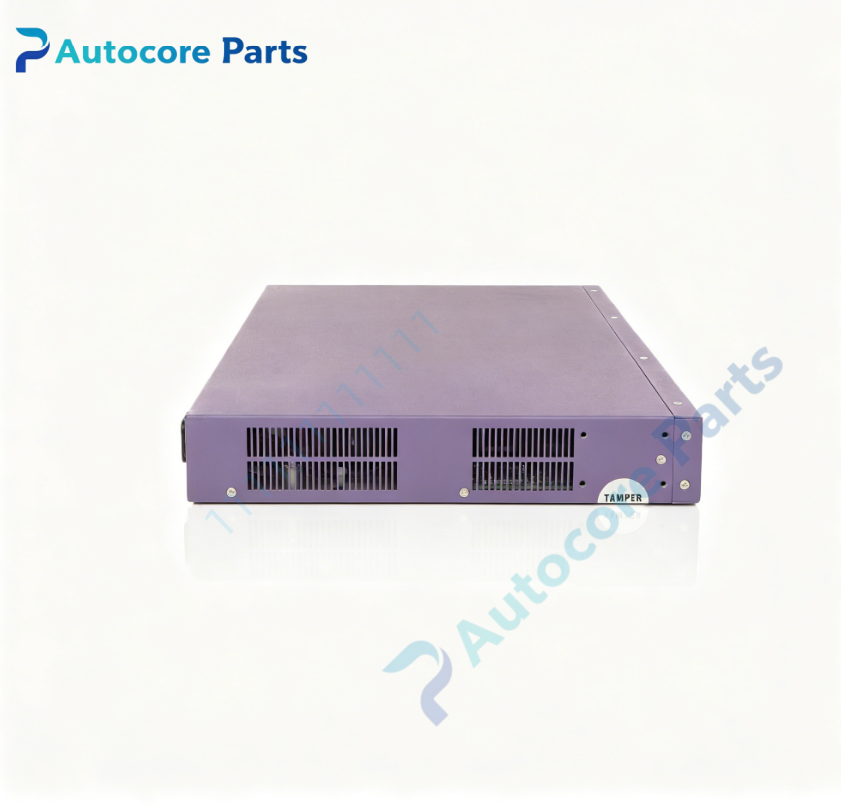

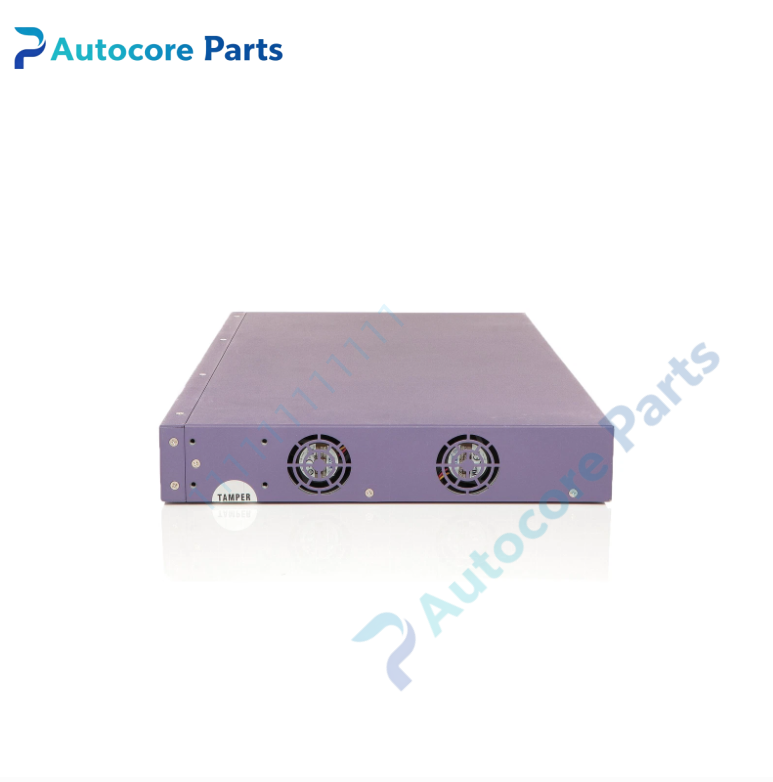

Extreme Networks Summit X440-24t Ethernet Switch

Technical SpecificationsModel: X440-24t Brand: Extreme Networks Product Type: Layer2 / Layer3 Gigabit Non-PoE Managed Access Switch Mounting:19-inch 1U rack mount Operating temperature:0℃ ~ +50℃ Storage temperature:-40℃ ~ +70℃ Relative humidity:10%~95%, non-condensing Ports:

• 24 × 10/100/1000BASE-T RJ45 copper ports (4 ports are combo shared with SFP)

• 4 × SFP gigabit fiber combo uplink slots

• 1 × RJ45 console port Power supply: Built-in AC 100~240V (DC variant X440-24tDC available) Cooling: Built-in fan Switching capacity: 52 Gbps Forwarding rate: 38.7 Mpps Weight:3.5 kg

System compatibilityX440-24t belongs to Extreme Summit X440 series, running ExtremeXOS operating system. Supports SummitStack stacking, compatible with Extreme X460, X620, X650, VSP core switches. Compatible with Extreme SFP 1G optical transceivers. Widely used for office, campus, factory non-PoE access network maintenance and spare replacement.

FunctionX440-24t is enterprise edge non-PoE access switch. It performs Layer2 switching, VLAN, STP/RSTP, QoS traffic scheduling, ACL filtering and IPv4/IPv6 Layer3 routing. It supports link aggregation and SummitStack stacking. It monitors port link status, internal temperature and power supply status, triggers alarm for port down or over-temperature. Used to replace defective edge switches in enterprise LAN.

InstallationPower off before installation. Mount switch on 19-inch rack. Insert SFP transceivers into uplink combo slots. Connect AC power, Ethernet cables and console cable. Configure ExtremeXOS, VLAN and QoS policy. Verify port link and network traffic before putting into production.

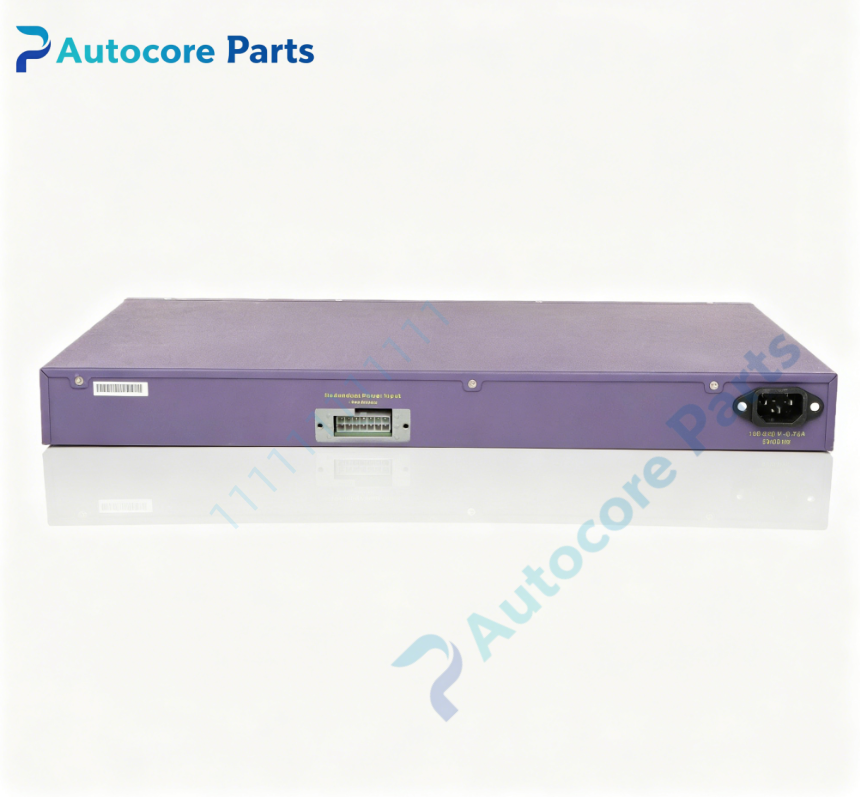

Interface24×1G RJ45 copper ports,4×SFP combo uplink slots, RJ45 console port, AC power inlet, LED status indicators for Extreme Networks Summit X440-24t.

FeatureOriginal Extreme Networks Summit X440-24t gigabit switch, non-PoE design, ExtremeXOS OS, combo SFP uplink ports, stacking capability, rich security and QoS functions, built-in self-diagnostic function. This spare supports enterprise campus edge network deployment.

DiagnosticNo power LED: check AC input power and power inlet wiring. Port link down: check copper cable, SFP transceiver and port administrative status. Over-temperature alarm: inspect fan operation and cabinet dust accumulation.

Product BriefX440-24t is Extreme Networks Summit X440 series 24-port non-PoE gigabit access switch with 4 SFP combo uplink ports, running ExtremeXOS and supporting stacking, classic spare part for enterprise edge network overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
