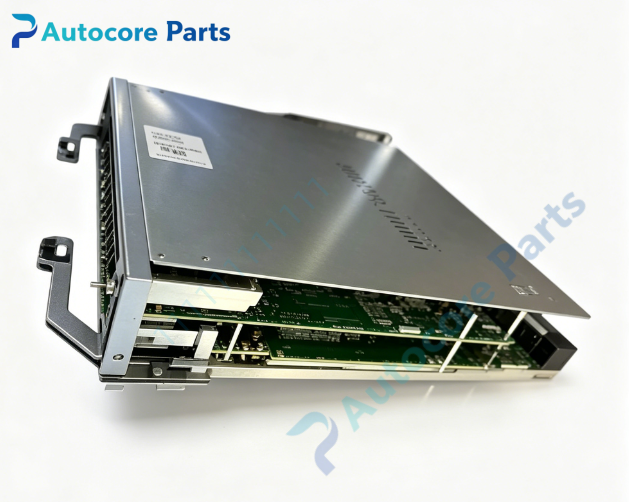

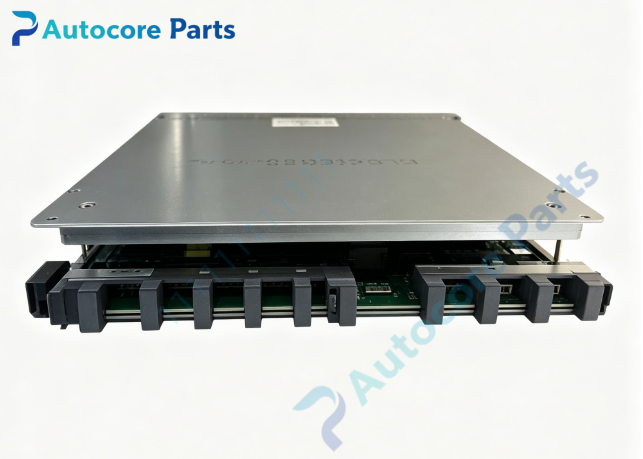

Extreme Networks ST2206-0848 Gigabit PoE+ I/O Line Card

Technical SpecificationsModel:ST2206-0848 Brand:Extreme Networks Product Type:Hot-swappable I/O line card / blade Compatible chassis:S3, S4, S6, S8 S-Series modular chassis Ports:48 × 10/100/1000BASE-T RJ45 PoE+ ports,2 × Type2 uplink expansion slots PoE standard:IEEE 802.3af / 802.3at PoE+ Architecture:S140 class distributed forwarding Minimum EOS:08.01.01.0016 Supported features:Layer2/Layer2 switching & routing, ACL, QoS, IPv4/IPv6, multicast, 802.1X authentication Operating temperature:0℃ ~ +40℃ Storage temperature:-40℃ ~ +70℃ Relative humidity:10%~90%, non-condensing Weight:1.8 kg

System compatibilityST2206-0848 belongs to Extreme Networks S-Series S140 family. It is the predecessor version of ST2206-0848A. It fits S3/S4/S6/S8 chassis slots. The two Type 2 expansion slots support optional uplink modules. Widely used for enterprise campus wiring closet high-density PoE access spare replacement for wireless APs, IP phones and IP cameras.

FunctionST2206-0848 provides 48-port gigabit PoE+ copper access for S-series modular chassis switches. It supplies power to PoE powered terminals. It supports wire-speed Layer2 switching, Layer3 routing, VLAN segmentation, STP/RSTP/MSTP, LACP port aggregation, access control lists, quality of service and multicast. It monitors port link state, PoE power consumption, module temperature and hardware faults, and sends alarms to chassis supervisor. Used for large-scale PoE wired access in enterprise wiring closets.

InstallationHot-swappable replacement. Insert ST2206-0848 into empty I/O slot of S3/S4/S6/S8 chassis. Tighten captive screws. Install Type2 uplink modules if required. Connect Cat5e/Cat6 cables to RJ45 ports. Verify module online, port link and PoE function on EOS before putting into production.

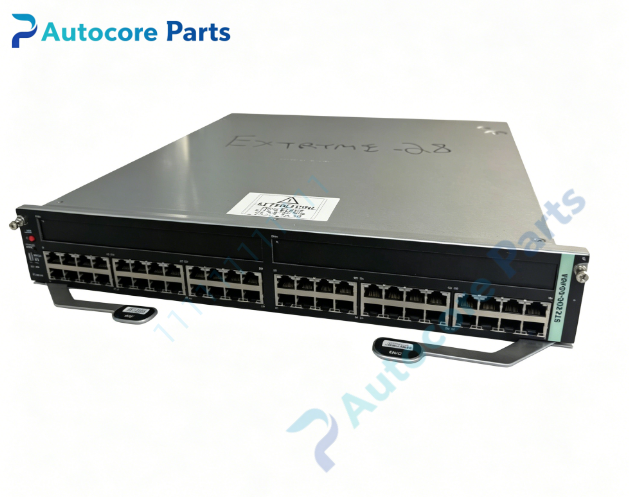

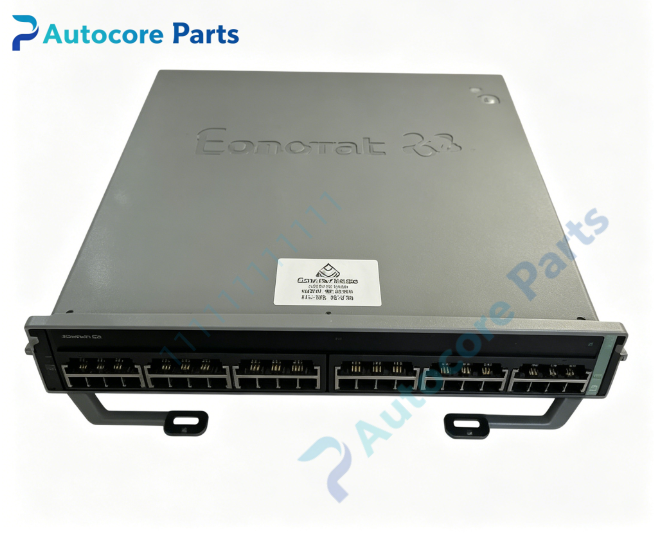

Interface48×PoE gigabit RJ45 ports,2×Type2 uplink expansion slots,module status LEDs,PoE status indicators,ejector latches for Extreme Networks ST2206-0848.

FeatureOriginal Extreme Networks S-Series S140 hot-swappable 48-port gigabit PoE+ line card, high-density PoE access, flexible Type2 uplink expansion, PoE power budget management, real-time hardware health monitoring,EOS operating system,built-in self-diagnostic function. This spare supports legacy enterprise campus large-scale PoE wired access network deployment.

DiagnosticModule not detected: check card seating, captive screws and backplane contact. PoE port no power: verify PoE budget, PD detection and port admin status. Copper port link down: check Cat5e/Cat6 cable quality and port auto-negotiation. Expansion module failure: check Type2 module insertion and firmware compatibility. Over-temperature alarm: inspect chassis fan tray operation and airflow.

Product BriefST2206-0848 is Extreme Networks S-Series S140 hot-swappable 48-port gigabit PoE+ line card with dual Type2 uplink slots for S3/S4/S6/S8 chassis, classic spare part for enterprise wiring closet high-density PoE access network overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
