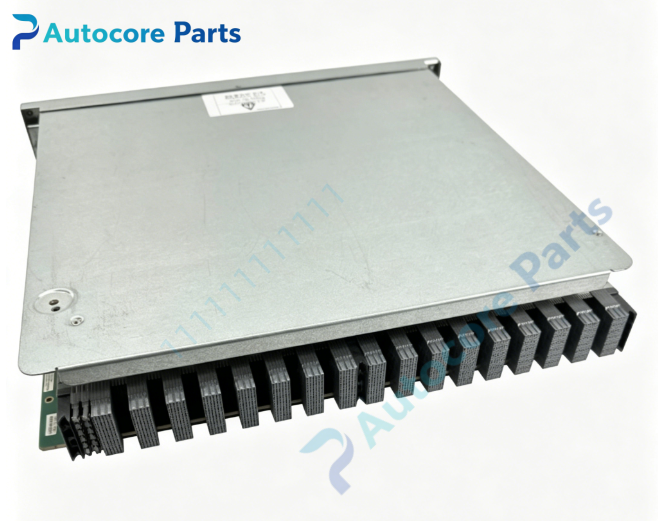

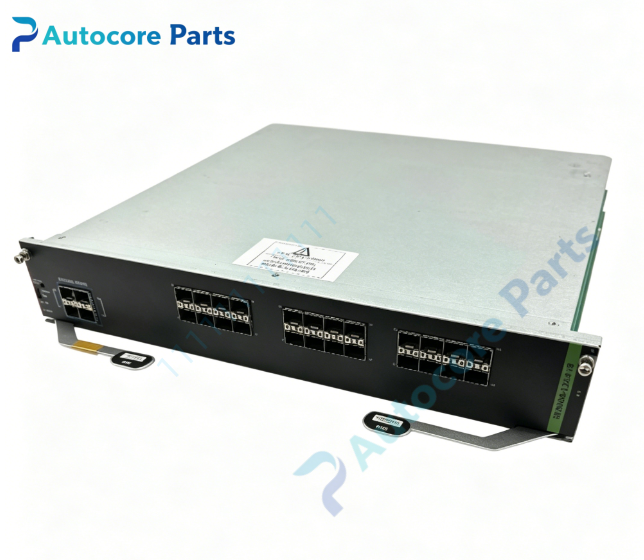

Extreme Networks SK8008-1224 10G SFP+ I/O Line Card

Technical SpecificationsModel:SK8008-1224 Brand:Extreme Networks Product Type:Hot-swappable S180 I/O line card / blade Compatible chassis:S4, S6, S8 S-Series modular chassis Ports:24 × 10G SFP+ slots Switching capacity:320Gbps Forwarding rate:240Mpps Architecture:S180 class non-fabric I/O module Minimum EOS:08.11.01.0014 Supported features:Layer2/Layer3 switching & routing, MACsec, ACL, QoS, IPv4/IPv6, multicast, 802.1X Operating temperature:0℃ ~ +40℃ Storage temperature:-40℃ ~ +70℃ Relative humidity:10%~90%, non-condensing Weight:1.7 kg

System compatibilitySK8008-1224 belongs to Extreme Networks S-Series S180 family. It is the non-fabric I/O variant of SK8008-1224-F8. Compatible with Extreme validated 10G SFP+ transceivers including SR, LR, ER and DAC twinax cables. Widely used for data center server connections and enterprise core aggregation spare replacement.

FunctionSK8008-1224 is a high-density S180 10G I/O line card for S-series modular chassis switches. It provides 24×10G SFP+ ports for server access, inter-switch uplink and aggregation layer connectivity. It supports wire-speed Layer2 switching, Layer3 routing, MACsec encryption, access control lists, quality of service, IPv4/IPv6 multicast and security policies. It monitors port link state, SFP+ DDM optical parameters, module temperature and power consumption, and sends hardware fault alarms to the chassis supervisor. Used for high-density 10G server and aggregation access in data centers.

InstallationHot-swappable replacement. Insert SK8008-1224 into empty I/O slot of S4/S6/S8 chassis. Tighten captive screws. Insert SFP+ transceivers and fiber/DAC cables. Verify module online and port optical link status on EOS before putting into production.

Interface24×10G SFP+ ports, module status LEDs, reset button, ejector latches for Extreme Networks SK8008-1224.

FeatureOriginal Extreme Networks S-Series S180 hot-swappable 24-port 10G SFP+ I/O line card, high 320Gbps bandwidth, MACsec port encryption, DDM optical diagnostics, wire-speed forwarding, EOS operating system, built-in self-diagnostic function. This spare supports legacy data center high-density 10G server and aggregation network deployment.

DiagnosticModule not detected: check card seating, captive screws and backplane contact. Port link down: verify SFP+ transceiver, fiber/DAC cable type and port admin status. Transceiver no DDM data: confirm Extreme validated SFP+ module. Optical low power alarm: inspect dirty fiber end or damaged cable. Over-temperature alarm: inspect chassis fan operation and airflow.

Product BriefSK8008-1224 is Extreme Networks S-Series S180 hot-swappable 24-port 10G SFP+ I/O line card for S4/S6/S8 modular chassis, classic spare part for data center core and aggregation high-speed network overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
