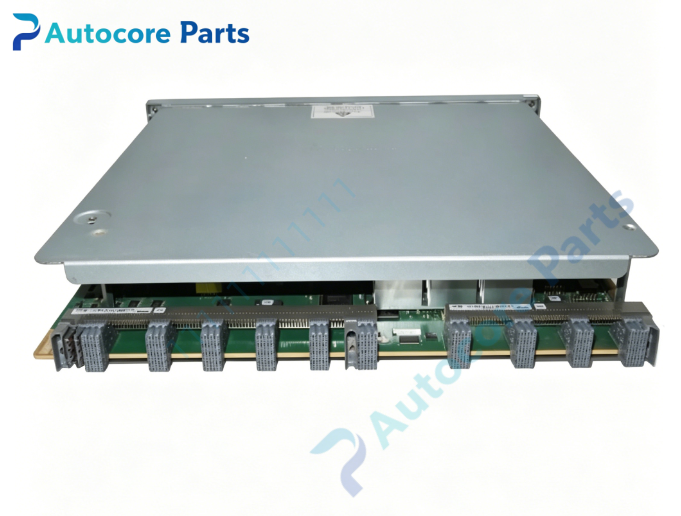

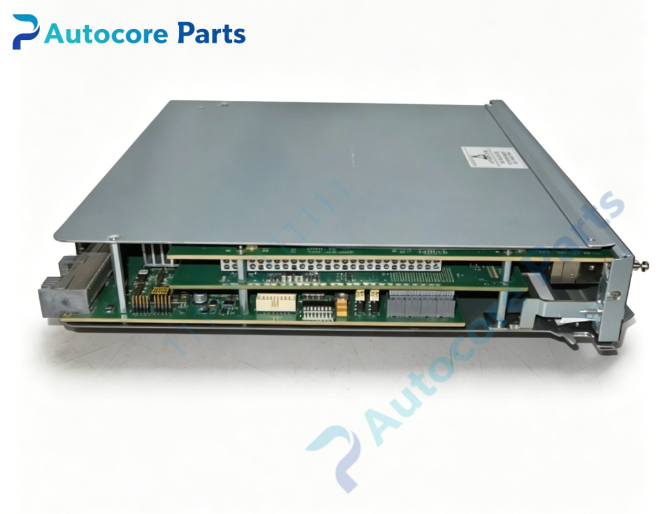

Extreme Networks SK2009-0824 10G SFP+ I/O Line Card

Technical SpecificationsModel:SK2009-0824 Brand:Extreme Networks Product Type:Hot-swappable S140 I/O line card / blade Compatible chassis:S1A, S4, S6, S8 S-Series modular chassis Ports:24 × 10G SFP+ slots Architecture:S140 class distributed forwarding Minimum EOS:08.02.01.0012 Supported features:Layer2/Layer3 switching & routing, ACL, QoS, IPv4/IPv6, multicast, 802.1X authentication Operating temperature:0℃ ~ +40℃ Storage temperature:-40℃ ~ +70℃ Relative humidity:10%~90%, non-condensing Weight:1.75 kg

System compatibilitySK2009-0824 belongs to Extreme Networks S-Series S140 family, formerly Enterasys. It fits S1A/S4/S6/S8 chassis. Compatible with Extreme validated 10G SFP+ transceivers including SR, LR, ER and DAC twinax cables. Widely used for data center server connectivity and enterprise core aggregation spare replacement.

FunctionSK2009-0824 is a high-density 10G SFP+ line card for S-series modular switches. It delivers 24×10G ports for server access and uplink aggregation. It supports wire-speed Layer2 switching, Layer3 routing, access control lists, quality of service, IPv4/IPv6 multicast and security policies. It monitors port link state, SFP+ DDM optical parameters, module temperature and power consumption, and sends fault alarms to the chassis supervisor. Used for data center high-density 10G server access and campus aggregation layer interconnection.

InstallationHot-swappable replacement. Insert SK2009-0824 into empty I/O slot of S1A/S4/S6/S8 chassis. Tighten captive screws. Insert SFP+ transceivers and fiber/DAC cables. Verify module online and port optical link status on EOS before putting into production.

Interface24×10G SFP+ ports, module status LEDs, reset button, ejector latches for Extreme Networks SK2009-0824.

FeatureOriginal Extreme Networks S-Series S140 hot-swappable 24-port 10G SFP+ line card, distributed high-performance forwarding architecture, DDM optical diagnostics, wire-speed packet forwarding, EOS operating system, built-in self-diagnostic function. This spare supports legacy data center server access and enterprise aggregation 10G fiber network deployment.

DiagnosticModule not detected: check card seating, captive screws and backplane contact. Port link down: verify SFP+ transceiver, fiber/DAC cable type and port admin status. Transceiver no DDM data: confirm Extreme validated SFP+ module. Optical low power alarm: inspect dirty fiber end or damaged cable. Over-temperature alarm: inspect chassis fan operation and airflow.

Product BriefSK2009-0824 is Extreme Networks S-Series S140 hot-swappable 24-port 10G SFP+ line card for S1A/S4/S6/S8 modular chassis, classic spare part for data center and enterprise aggregation high-speed 10G network overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
