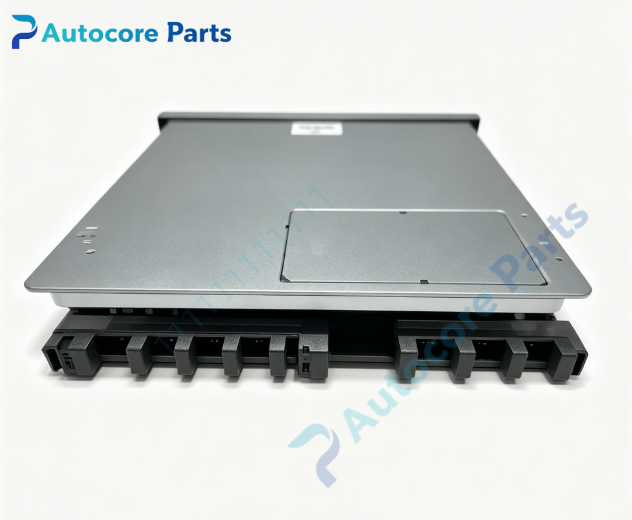

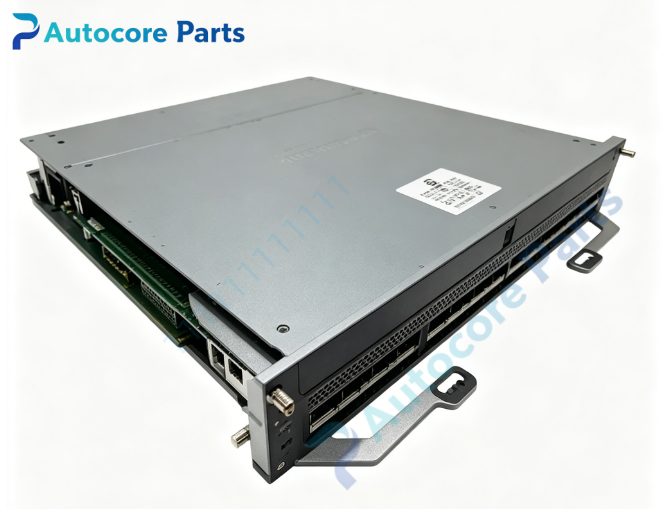

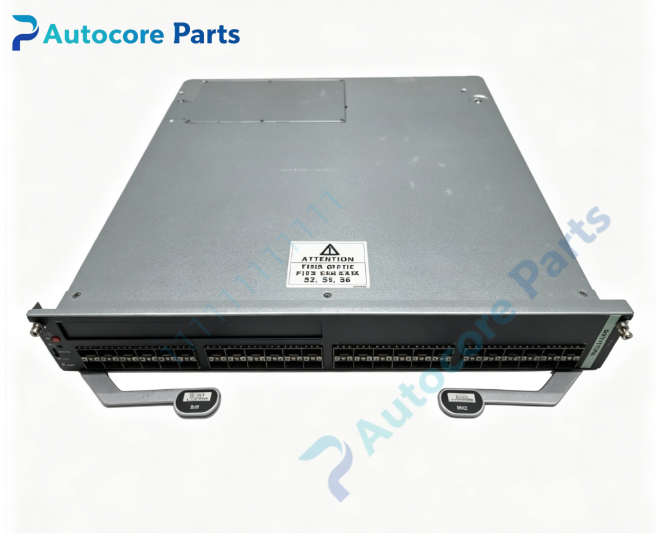

Extreme Networks SG4101-0248 Gigabit SFP I/O Line Card

Technical SpecificationsModel:SG4101-0248 Brand:Extreme Networks Product Type:Hot-swappable I/O line card / blade Compatible chassis:S3, S4, S6, S8 S-Series modular chassis Ports:48 × 1000BASE-X SFP gigabit fiber slots,1 × Type1 expansion slot Architecture:S130 distributed forwarding Minimum EOS:07.02.02.0002 Supported features:Layer2/Layer3 switching & routing, ACL, QoS, IPv4/IPv6, multicast, 802.1X authentication Operating temperature:0℃ ~ +40℃ Storage temperature:-40℃ ~ +70℃ Relative humidity:10%~90%, non-condensing Weight:1.7 kg

System compatibilitySG4101-0248 belongs to Extreme Networks S-Series S130 family, formerly Enterasys. It is the all-fiber counterpart of ST4106-0248 48-port copper S130 card. Compatible with Extreme validated 1G SFP transceivers including SX multimode and LX single-mode modules. The Type1 expansion slot accepts optional uplink modules. Widely used for enterprise campus and remote building fiber aggregation spare replacement.

FunctionSG4101-0248 is a high-density gigabit all-SFP line card for S-series modular chassis switches. It provides 48 SFP slots for fiber access and long-distance building interconnection. It supports wire-speed Layer2 switching, Layer3 routing, access control lists, quality of service, IPv4/IPv6 multicast and 802.1X security authentication. It monitors port link state, SFP DDM optical diagnostics, module temperature and power consumption, and sends hardware fault alarms to the chassis supervisor. Used for fiber-to-building and campus aggregation layer fiber networking.

InstallationHot-swappable replacement. Insert SG4101-0248 into empty I/O slot of S3/S4/S6/S8 chassis. Tighten captive screws. Install SFP transceivers and fiber patch cords. Install Type1 uplink module if required. Verify module online and port optical link status on EOS before putting into production.

Interface48×1G SFP fiber slots,1×Type1 expansion slot,module status LEDs,reset button,ejector latches for Extreme Networks SG4101-0248.

FeatureOriginal Extreme Networks S-Series S130 hot-swappable 48-port all-SFP gigabit line card, high-density fiber ports, flexible Type1 uplink expansion, DDM optical power monitoring, wire-speed distributed forwarding,EOS operating system,built-in self-diagnostic function. This spare supports legacy enterprise remote campus fiber aggregation and access network deployment.

DiagnosticModule not detected: check card seating, captive screws and backplane contact. Fiber port link down: verify SFP transceiver, fiber type and port admin status. Transceiver no DDM data: confirm Extreme validated SFP module. Optical low power alarm: inspect dirty fiber end or damaged fiber cable. Expansion module failure: check Type1 module insertion and firmware compatibility. Over-temperature alarm: inspect chassis fan operation and airflow.

Product BriefSG4101-0248 is Extreme Networks S-Series S130 hot-swappable 48-port 1G SFP gigabit fiber line card for S3/S4/S6/S8 modular chassis, classic spare part for enterprise remote building fiber aggregation network overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
