Extreme Networks X-CM-00 X-Pedition Supervisor Control Module

Technical SpecificationsModel:X-CM-00 Brand:Extreme Networks Product Type:Hot-swappable supervisor / control processor module Compatible chassis:X-Pedition 8000, X-Pedition 8600 modular chassis router Core function:System management, configuration control, Layer2/Layer3 routing calculation, fabric coordination, chassis monitoring Redundancy:Supports dual X-CM-00 for supervisor redundancy OS:EOS (Enterasys Operating System) Management interfaces:Console port, out-of-band Ethernet management port Operating temperature:0℃ ~ +40℃ Storage temperature:-40℃ ~ +70℃ Relative humidity:10%~90%, non-condensing Weight:1.45 kg

System compatibilityX-CM-00 belongs to Extreme Networks X-Pedition 8000/8600 chassis router family, formerly Enterasys. It acts as the main controller for the X-Pedition chassis. Dual X-CM-00 modules can be installed for supervisor failover redundancy. Widely used for enterprise core backbone router spare replacement.

FunctionX-CM-00 is the main supervisor brain of X-Pedition 8000/8600 chassis router. It executes routing protocols, maintains system configuration, controls all line cards and switching fabric modules, handles chassis hardware monitoring and fault reporting. It supports static & dynamic routing, VLAN, ACL, QoS, multicast and security policy management. It synchronizes state with standby supervisor for seamless failover. Used for large enterprise campus core backbone routing.

InstallationHot-swappable replacement. Insert X-CM-00 into dedicated supervisor slot of X-Pedition 8000/8600 chassis. Tighten captive screws. Connect console and out-of-band management cables if required. Verify module boot, fabric communication and routing function on EOS before putting into production.

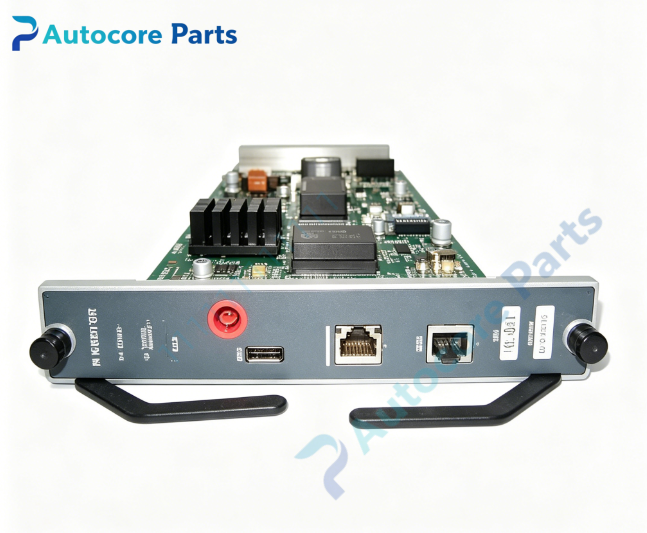

InterfaceConsole port, out-of-band management RJ45 port, status LEDs, reset button, ejector latches for Extreme Networks X-CM-00.

FeatureOriginal Extreme Networks X-Pedition hot-swappable supervisor control module, supports dual supervisor redundancy, full Layer2/Layer3 routing engine, centralized chassis hardware monitoring,EOS operating system,built-in self-diagnostic function. This spare supports legacy enterprise large-scale core backbone network deployment.

DiagnosticModule not detected: check card seating, captive screws and backplane contact. Boot failure: verify firmware version and compact flash integrity. Supervisor redundancy sync failure: confirm matching EOS firmware between primary and standby X-CM-00. Fabric communication error: inspect X8-FM fabric module status. Over-temperature alarm: inspect chassis fan tray operation and airflow.

Product BriefX-CM-00 is Extreme Networks X-Pedition 8000/8600 hot-swappable supervisor control module, the main controller for chassis routing and system management, classic spare part for enterprise core backbone router overhaul.
