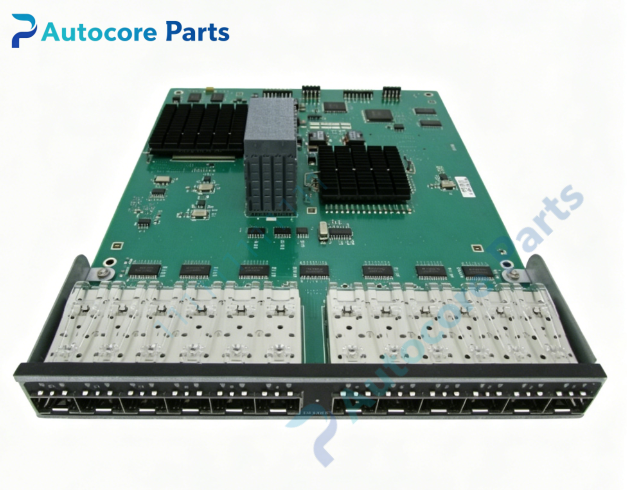

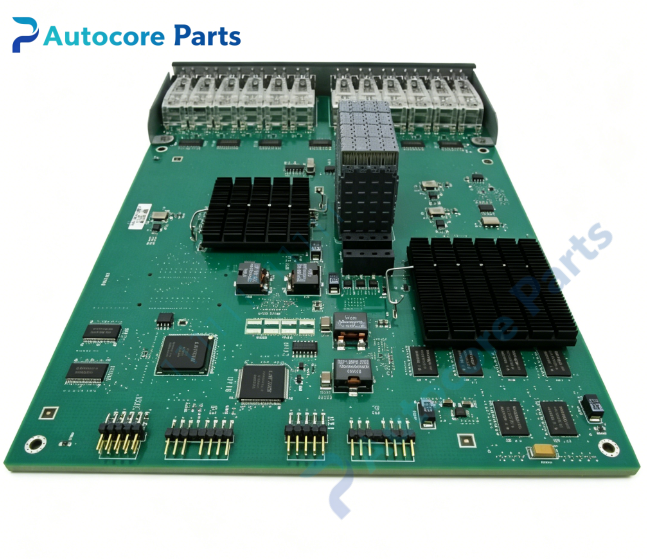

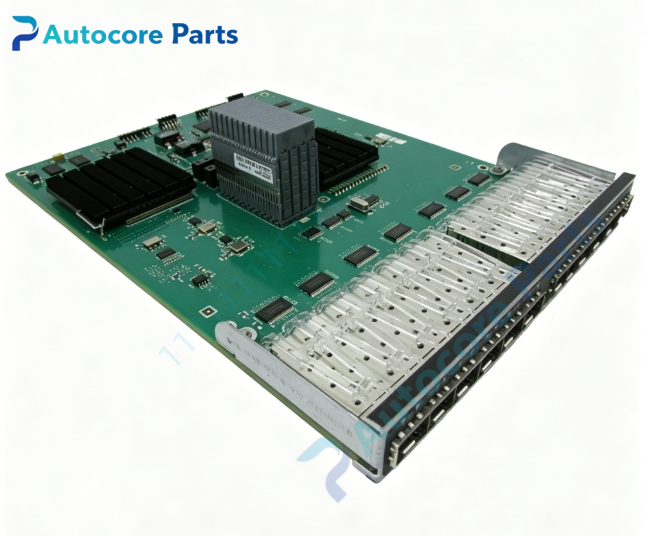

Extreme Networks SOG2201-0112 Gigabit SFP Managed Switch

Technical SpecificationsModel:SOG2201-0112 Brand:Extreme Networks Product Type:1U rackmount Layer2/Layer3 non-PoE fiber access/aggregation switch Ports:12 × 1000BASE-X SFP gigabit fiber slots Switching capacity:24 Gbps Forwarding rate:18 Mpps MAC address table:32000 entries VLAN:4094 VLAN IDs Management:Serial console, out-of-band Ethernet management port, SNMP, CLI OS:EOS (Enterasys Operating System) Redundancy:Supports external redundant power supply Operating temperature:0℃ ~ +40℃ Storage temperature:-40℃ ~ +70℃ Relative humidity:10%~90%, non-condensing Weight:3.1 kg

System compatibilitySOG2201-0112 belongs to Extreme Networks S-Series SOG family, formerly Enterasys. Compatible with Extreme validated 1G SFP transceivers including SX multimode and LX single-mode modules. Designed for fiber-to-building and aggregation layer fiber interconnection. Widely used for legacy enterprise campus fiber network spare replacement.

FunctionSOG2201-0112 is a Layer3 managed all-fiber gigabit switch. It supports static and dynamic routing, VLAN segmentation, STP/RSTP/MSTP, LACP link aggregation, ACL, QoS and IGMP snooping. It monitors port link status, SFP DDM optical power, module temperature and power supply health. Used for remote building fiber aggregation and backbone gigabit fiber interconnection.

InstallationMount the switch on standard 19-inch 1U rack. Connect AC power cord; external redundant power supply is optional. Insert SFP transceivers and fiber patch cords. Connect serial console port for EOS configuration. Verify boot sequence and port optical link status before putting into production.

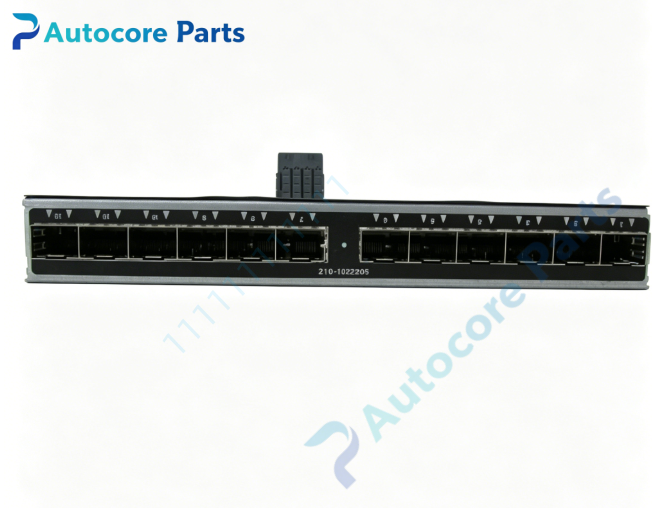

Interface12×SFP 1G fiber slots,DB9 serial console port,out-of-band RJ45 management port,status LEDs,AC power inlet,ground terminal,rack mounting ears for Extreme Networks SOG2201-0112.

FeatureOriginal Extreme Networks S-Series 1U rackmount 12-port all-SFP gigabit Layer3 fiber switch, DDM optical diagnostic, wire-speed forwarding, external redundant power support,EOS operating system,built-in self-diagnostic function. This spare supports legacy enterprise remote campus fiber aggregation network deployment.

DiagnosticSwitch fails to boot: check AC power input and power supply seating. Fiber port link down: verify SFP transceiver, fiber type and clean fiber end faces. Optical low power alarm: inspect fiber damage or dirty connectors. Transceiver no DDM data: confirm Extreme validated SFP module. Over-temperature alarm: inspect chassis ventilation and dust buildup.

Product BriefSOG2201-0112 is Extreme Networks S-Series 1U rackmount 12-port 1G SFP all-fiber Layer3 managed switch, classic spare part for enterprise remote building fiber aggregation overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
