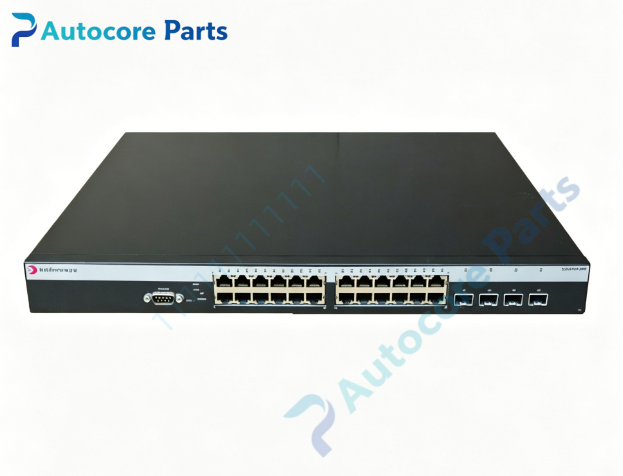

Extreme Networks C3G124-24 Gigabit Stackable Managed Switch

Technical SpecificationsModel:C3G124-24 Brand:Extreme Networks Product Type:1U rackmount stackable Layer2/Layer3 non-PoE access switch Ports:24 × 10/100/1000BASE-T RJ45 copper ports,4 × combo SFP 1000BASE-X uplink slots,2 × dedicated stacking ports Switching capacity:88 Gbps Forwarding rate:65 Mpps MAC address table:32000 entries VLAN:4094 VLAN IDs Redundancy:Supports external EPS-C2 redundant power supply Operating temperature:0℃ ~ +40℃ Storage temperature:-40℃ ~ +70℃ Relative humidity:10%~90%, non-condensing Weight:4.9 kg

System compatibilityC3G124-24 belongs to Extreme Networks SecureStack C3 series, formerly Enterasys. Up to 8 C3 switches can be stacked as one logical switch via dedicated stacking ports. Compatible with Extreme validated 1G SFP transceivers including SX/LX and 100BASE-FX modules. Widely used for legacy enterprise campus and office copper access spare replacement.

FunctionC3G124-24 is a high-performance Layer3 managed non-PoE gigabit access switch. It supports static and dynamic routing, VLAN segmentation, STP/RSTP/MSTP, LACP link aggregation, ACL, QoS, IPv4/IPv6 multicast and 802.1X authentication. It monitors port link status, transceiver DDM optical data, chassis temperature, fan speed and power supply health. Used to build stacked resilient gigabit copper access networks.

InstallationMount the switch on standard 19-inch 1U rack. Connect AC power cord; external EPS-C2 redundant power supply is optional. Insert SFP transceiver and fiber cable for uplink if needed. Connect Cat5e/Cat6 cables to RJ45 access ports. Connect DB9 serial console port for EOS configuration. Verify boot sequence and port link status before putting into production.

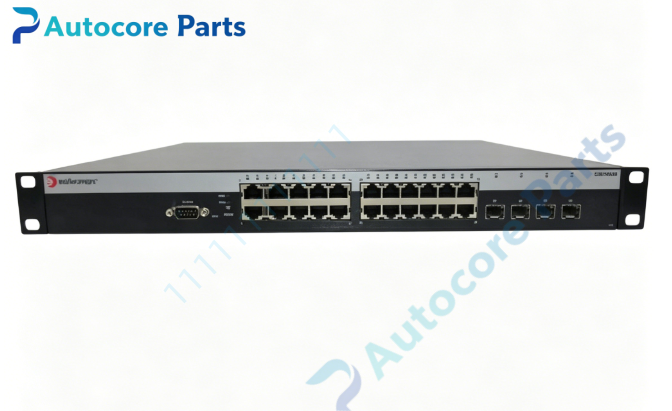

Interface24×RJ45 gigabit copper ports,4×combo SFP uplink slots,2×dedicated stacking ports,DB9 serial console port,status LEDs,AC power inlet,RPS connector,rack mounting ears for Extreme Networks C3G124-24.

FeatureOriginal Extreme Networks SecureStack C3 series 1U rackmount 24-port gigabit non-PoE stackable switch, combo SFP flexible uplink, dedicated high-speed stacking interface, transceiver DDM optical monitoring, external redundant power support,EOS operating system,built-in self-diagnostic function. This spare supports legacy enterprise campus and office wired copper access network deployment.

DiagnosticSwitch fails to boot: check AC power cord and wall power supply. Port link down: check Cat5e/Cat6 cable, SFP transceiver and port admin status. Transceiver no DDM data: confirm Extreme validated SFP transceiver. Stacking failure: verify consistent firmware version among stacked C3 switches. Over-temperature alarm: inspect chassis ventilation and clear dust.

Product BriefC3G124-24 is Extreme Networks SecureStack C3 1U rackmount 24-port gigabit non-PoE stackable managed switch with 4×combo SFP uplink and dedicated stacking ports, classic spare part for enterprise wiring closet copper access network overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
