Extreme Networks SKL8008-0810-F S-Series S180 10G SFP+ I/O Line Card

Technical Specifications

Model：SKL8008-0810-F Brand：Extreme Networks Product Type: Hot-swappable S180 class I/O line card for S-Series modular chassis

Front Ports:

• 8 × 1G/10G SFP+ multi-speed slots, compatible with optical transceivers, DAC and AOC cables

• LED indicators for port link status, activity, module health and fault alarm

Backplane Interface:

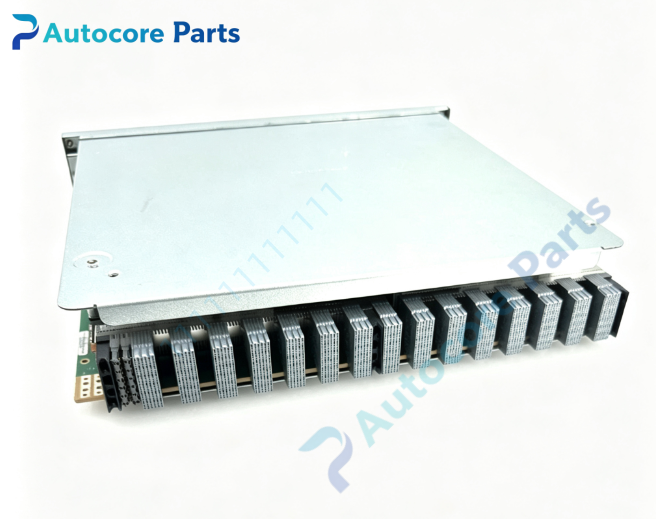

• High-speed backplane connector connecting to S-Series chassis fabric

• Hot swap support, online replacement without chassis power shutdown

• Works cooperatively with S-series supervisor module for traffic forwarding

Switching & Software Features:

• OS: EOS operating system

• Minimum supported firmware: 08.11.01.0014, recommended version 08.62.04.0001

• MAC Address Table: 128K entries

• Max Jumbo Frame: 9216 bytes

• VLAN: Up to 4094 802.1Q tagged VLAN

• Routing: IPv4 / IPv6 static & dynamic routing protocols

• Security: 802.1X, ACL, broadcast storm control

• QoS: Hardware L2-L4 traffic classification, multiple priority queues

Power & Mechanical:

• Power supply: Powered through chassis backplane

• Cooling: Dependent on chassis fan tray airflow

• Operating temperature：0℃ ~ +40℃

• Standard S-Series S180 line card form factor

• Weight: Approx 1.42kg

System compatibility

SKL8008-0810-F belongs to Extreme S-Series S180 class line card family. Compatible with S4, S6, S8 S-Series modular chassis platform, matching S-series supervisor modules and other S180/S140 I/O cards. Works with Extreme certified SFP+ transceivers, DAC and AOC fiber cables. Widely applied in core chassis 10G fiber port expansion and spare replacement for campus and data center core network.

Function

SKL8008-0810-F is an 8-port 10G SFP+ fiber I/O line card for Extreme S-Series modular chassis. It provides 8 multi-rate SFP+ fiber interfaces for uplink or server access to expand chassis port density. Hot-swap design allows engineers to replace the module online without cutting power of the whole chassis. It collaborates with chassis supervisor for data forwarding, VLAN segmentation and routing processing. Widely deployed for enterprise campus core and data center modular chassis fiber port expansion spare replacement.

Installation

Follow ESD protection procedure. Insert SKL8008-0810-F module into empty chassis slot and fasten locking screws. Hot swap operation can be performed with chassis powered on. Wait for module initialization. Access chassis CLI to verify module online status, check port LEDs and upgrade firmware if version mismatch. Insert SFP+ transceivers and fiber cables, configure port VLAN and routing policy according to site requirements.

Interface

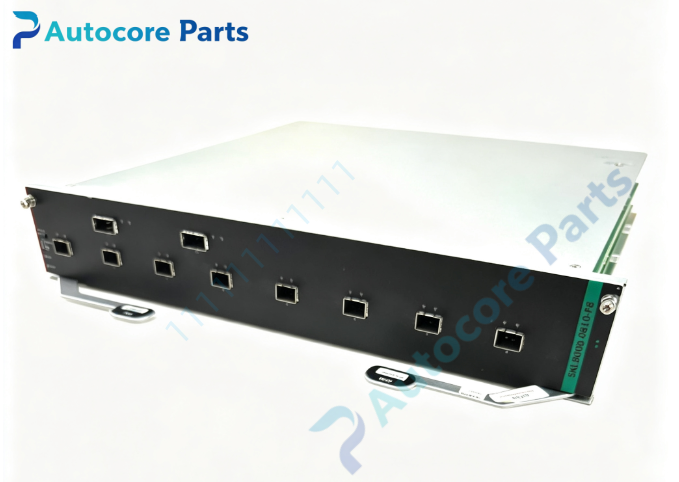

8×SFP+ slots,status LED indicators,high-speed chassis backplane connector for Extreme Networks SKL8008-0810-F.

Feature

Original Extreme Networks SKL8008-0810-F S-Series S180 class line card,8×10G multi-speed SFP+ ports,hot swappable,EOS system compatible. This spare unit is used for S-Series modular chassis 10G fiber port expansion and core network hardware maintenance.

Diagnostic

Module undetected: Confirm module fully seated and locking screws tightened. Port link down: Verify SFP+ transceiver compatibility, fiber cable integrity and connector cleanliness. Firmware incompatibility: Upgrade chassis EOS firmware to minimum required version 08.11.01.0014 or newer. Module fault alarm: Check chassis fan tray working status and ambient operating temperature. Port cannot be enabled: Verify license authorization and slot configuration on chassis supervisor.

Product BriefSKL8008-0810-F is Extreme Networks S-Series S180 class hot-swappable 8×10G SFP+ I/O line card for S4/S6/S8 modular chassis,classic spare for core chassis 10G fiber port expansion.
