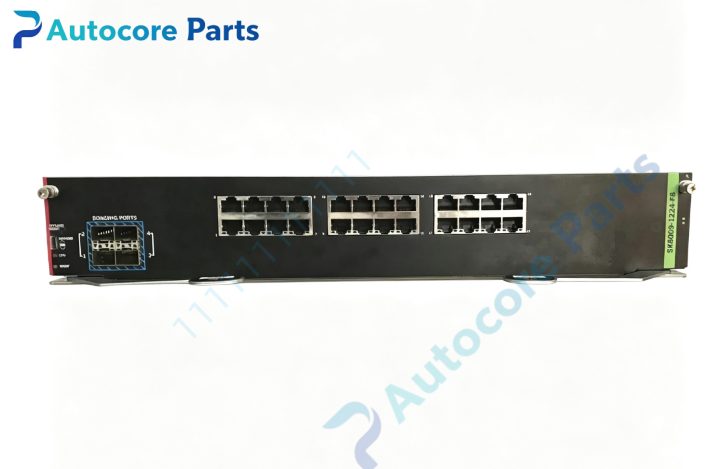

Extreme Networks SK8009-1224-F8 S-Series S180 10GBASE-T I/O Line Card

Technical Specifications

Model：SK8009-1224-F8 Brand：Extreme Networks Product Type: Hot-swappable S180 class I/O line card for S-Series modular chassis

Front Ports:

• 24 × 10GBASE-T /1GBASE-T auto-sensing RJ45 copper ports

• LED indicators for port link status, activity, module health and fault alarm

Backplane Interface:

• High-speed backplane connector connecting to S-Series chassis fabric

• Hot swap support, online replacement without chassis power shutdown

• Works cooperatively with S-series supervisor module for traffic forwarding

Switching & Software Features:

• OS: EOS operating system

• Minimum supported firmware: 08.11.01.0014, recommended version 08.62.04.0001

• MAC Address Table: 128K entries

• Max Jumbo Frame: 9216 bytes

• VLAN: Up to 4094 802.1Q tagged VLAN

• Routing: IPv4 / IPv6 static & dynamic routing protocols

• Security: 802.1X, ACL, broadcast storm control

• QoS: Hardware L2-L4 traffic classification, multiple priority queues

Power & Mechanical:

• Power supply: Powered through chassis backplane

• Cooling: Dependent on chassis fan tray airflow

• Operating temperature：0℃ ~ +40℃

• Standard S-Series S180 line card form factor

• Weight: Approx 1.6kg

System compatibility

SK8009-1224-F8 belongs to Extreme S-Series S180 class line card family. Compatible with S4, S6, S8 S-Series modular chassis platform, matching S-series supervisor modules and other S180/S140 I/O cards. Requires Cat6A copper cable for full 10G speed. Widely applied in core chassis high-density 10G copper port expansion and spare replacement for campus and data center core network.

Function

SK8009-1224-F8 is a 24-port 10GBASE-T copper I/O line card for Extreme S-Series modular chassis. It provides 24 high-density 10G copper interfaces for server access or building aggregation connections to expand chassis port density. Hot-swap design allows engineers to replace the module online without cutting power of the whole chassis. It collaborates with chassis supervisor for data forwarding, VLAN segmentation and routing processing. Widely deployed for enterprise campus core and data center modular chassis high density copper port expansion spare replacement.

Installation

Follow ESD protection procedure. Insert SK8009-1224-F8 module into empty chassis slot and fasten locking screws. Hot swap operation can be performed with chassis powered on. Wait for module initialization. Access chassis CLI to verify module online status, check port LEDs and upgrade firmware if version mismatch. Use Cat6A cable for 10G transmission and configure port VLAN and routing policy according to site requirements.

Interface

24×10GBASE-T RJ45 ports,status LED indicators,high-speed chassis backplane connector for Extreme Networks SK8009-1224-F8.

Feature

Original Extreme Networks SK8009-1224-F8 S-Series S180 class line card,24×10GBASE-T multi-speed copper ports,hot swappable,EOS system compatible. This spare unit is used for S-Series modular chassis high-density 10G copper port expansion and core network hardware maintenance.

Diagnostic

Module undetected: Confirm module fully seated and locking screws tightened. Copper port link down: Verify Cat6A cable quality, cable length and RJ45 termination. Firmware incompatibility: Upgrade chassis EOS firmware to minimum required version 08.11.01.0014 or newer. Module fault alarm: Check chassis fan tray working status and ambient operating temperature. Port cannot be enabled: Verify license authorization and slot configuration on chassis supervisor.

Product BriefSK8009-1224-F8 is Extreme Networks S-Series S180 class hot-swappable 24×10GBASE-T I/O line card for S4/S6/S8 modular chassis,classic spare for core chassis high density 10G copper port expansion.
