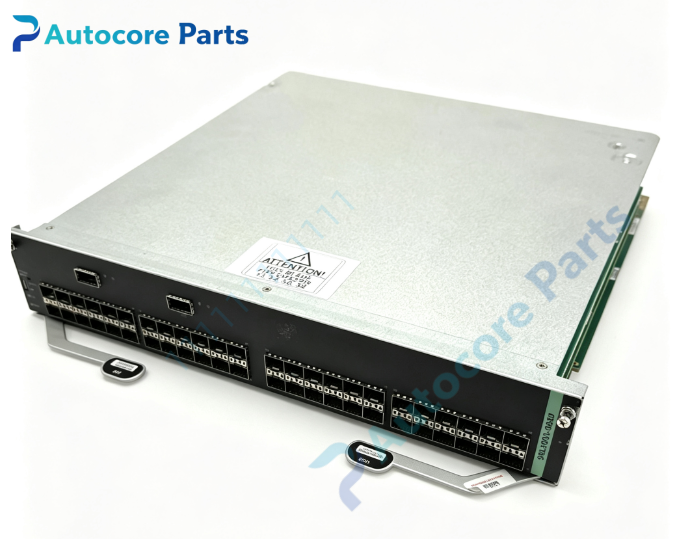

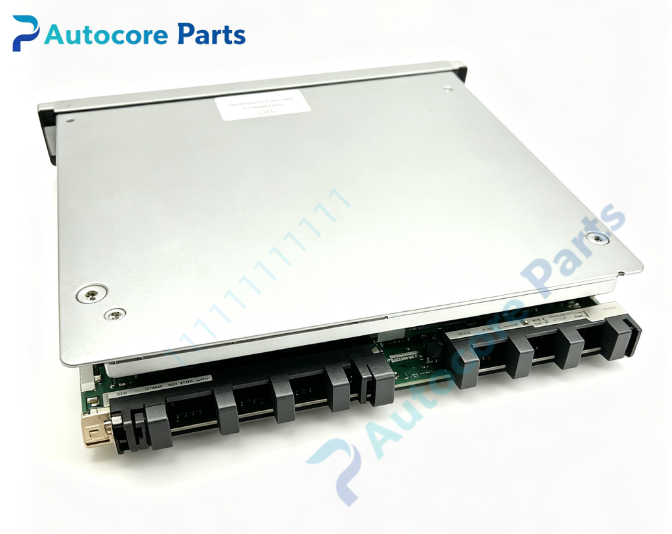

Extreme Networks SGL2001-0850 S-Series S140 10G SFP+ I/O Line Card

Technical Specifications

Model：SGL2001-0850 Brand：Extreme Networks Product Type: Hot-swappable S140 class I/O line card for S-Series modular chassis

Front Ports:

• 8 × 1G/10G SFP+ multi-speed slots, compatible with optical transceivers, DAC and AOC cables

• LED indicators for port link status, activity, module health and fault alarm

Backplane Interface:

• High-speed backplane connector connecting to S-Series chassis fabric

• Hot swap support, online replacement without chassis power shutdown

• Works cooperatively with S-series supervisor module for traffic forwarding

Switching & Software Features:

• OS: EOS operating system

• Minimum supported firmware: 8.32.01.0021

• MAC Address Table: 128K entries

• Max Jumbo Frame: 9216 bytes

• VLAN: Up to 4094 802.1Q tagged VLAN

• Routing: IPv4 / IPv6 static & dynamic routing protocols

• Security: 802.1X, ACL, broadcast storm control

• QoS: Hardware L2-L4 traffic classification, multiple priority queues

Power & Mechanical:

• Power supply: Powered through chassis backplane

• Cooling: Dependent on chassis fan tray airflow

• Operating temperature：0℃ ~ +40℃

• Standard S-Series S140 line card form factor

• Weight: Approx 1.35kg

System compatibility

SGL2001-0850 belongs to Extreme S-Series S140 class line card family. Compatible with S-Series modular chassis platform, matching S-series supervisor modules and other S140 I/O cards. Supports Extreme certified SFP+ transceivers, DAC and AOC cables. Widely applied in core chassis 10G port expansion and spare replacement for campus and data center core network.

Function

SGL2001-0850 is an 8-port 10G SFP+ I/O line card for Extreme S-Series modular chassis. It provides 8 multi-rate SFP+ interfaces for fiber uplink or server access to expand chassis port density. Hot-swap design allows engineers to replace the module online without cutting power of the whole chassis. It collaborates with chassis supervisor for data forwarding, VLAN segmentation and routing processing. Widely deployed for enterprise campus core and data center modular chassis port expansion spare replacement.

Installation

Follow ESD protection procedure. Insert SGL2001-0850 module into empty chassis slot and fasten locking screws. Hot swap operation can be performed with chassis powered on. Wait for module initialization. Access chassis CLI to verify module online status, check port LEDs and upgrade firmware if version mismatch. Configure port VLAN and routing policy according to site requirements.

Interface

8×SFP+ slots,status LED indicators,high-speed chassis backplane connector for Extreme Networks SGL2001-0850.

Feature

Original Extreme Networks SGL2001-0850 S-Series S140 class line card,8×10G multi-speed SFP+ ports,hot swappable,EOS system compatible. This spare unit is used for S-Series modular chassis port expansion and core network hardware maintenance.

Diagnostic

Module undetected: Confirm module fully seated and locking screws tightened. Port link down: Verify SFP+ transceiver compatibility, fiber cable integrity and connector cleanliness. Firmware incompatibility: Upgrade chassis EOS firmware to minimum required version 8.32.01.0021 or newer. Module fault alarm: Check chassis fan tray working status and ambient operating temperature. Port cannot be enabled: Verify license authorization and slot configuration on chassis supervisor.

Product BriefSGL2001-0850 is Extreme Networks S-Series S140 class hot-swappable 8×10G SFP+ I/O line card for modular chassis,classic spare for core chassis 10G port expansion.
