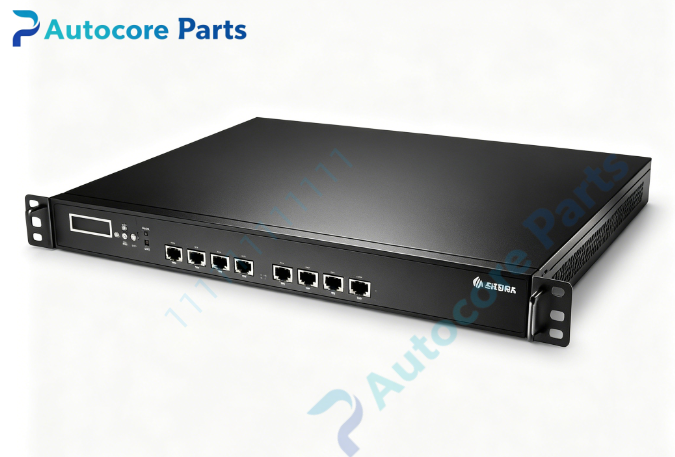

Extreme Networks NX-5500-100R0-WR NX-5500 Integrated Services Platform

Technical SpecificationsModel：NX-5500-100R0-WR Brand：Extreme Networks (Zebra legacy) Product Type: 1U rack mount WiNG5 integrated wireless LAN controller / multi-service network platform

Front / Rear Interfaces:

• 6 × 10/100/1000BASE-T Gigabit RJ45 copper ports

• 1 × RJ45 RS232 serial console port

• 2 × USB 2.0 ports for firmware upgrade & backup

• LCD status display panel

• LED indicators for power, system health and port activity

Hardware Core:

• 4GB RAM

• 32GB SSD local storage for firmware, configuration and logs Max Jumbo Frame: 9216 bytes Wireless Management: Base unit without AP license, expandable via license packs, maximum support for 512 WiNG access points Integrated Services: WLAN management, stateful firewall, IPsec VPN gateway, RADIUS AAA server, DHCP & DNS server, application visibility, WIPS wireless intrusion prevention QoS: Hierarchical hardware QoS for wired and wireless traffic classification Power & Mechanical: Power Supply: 100W universal AC 100–240V built-in PSU Typical power draw: 30W Dimension: 430mm × 44.2mm × 320.7mm Weight: Approx 4.5 kg Cooling: Built-in cooling fan Operating temperature：0℃ ~ +40℃ Software OS: WiNG 5

System compatibility

NX-5500-100R0-WR belongs to NX5500 WiNG5 controller family. Works with Extreme WiNG series wireless access points. AP capacity is activated by separate license packs. It can integrate into existing enterprise wired network as wireless gateway, supports zero-touch AP provisioning.

Function

NX-5500-100R0-WR is 1U multi-service wireless controller for mid-size enterprise. It centrally manages WiNG wireless access points, handles WLAN SSID policy, user authentication, RF management and roaming. Built-in firewall, IPsec VPN and RADIUS AAA reduce requirement for extra network appliances. 6 gigabit ports connect LAN segments and uplink to core network. SSD storage ensures reliable configuration backup and firmware storage. Widely used for campus, retail chain, hotel and branch office enterprise Wi-Fi deployment.

InstallationFollow ESD protection procedure. Mount appliance on standard 19-inch 1U rack. Connect AC power cord. Plug RJ45 Ethernet cables to LAN / uplink ports. Access serial console for initial WiNG configuration, import AP licenses, define WLAN profiles and security rules. Verify AP discovery and client access after power-up.

Interface6 GE RJ45 ports,serial console port,2×USB 2.0,LCD panel,status LED indicators for Extreme Networks NX-5500-100R0-WR.

FeatureOriginal Extreme Networks NX-5500-100R0-WR WiNG5 wireless controller,1U rack design,4GB RAM+32GB SSD,6×Gigabit ports,support up to 512 managed APs,integrated firewall,IPsec VPN and AAA RADIUS service. This spare controller is used for enterprise wireless network central management hardware replacement.

DiagnosticController boot failure: Check AC power input and power cord connection, inspect SSD health. AP discovery failure: Verify network route, DHCP option 43 and AP firmware compatibility. VPN tunnel down: Confirm IPsec peer parameters, pre-shared key and routing table. User authentication fail: Check RADIUS server connectivity and AAA configuration. Overheat alarm: Inspect fan running status and rack airflow.

Product BriefNX-5500-100R0-WR is Extreme NX5500 series 1U WiNG5 multi-service wireless controller,classic spare for mid-size enterprise centralized WLAN management.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and replacement.
