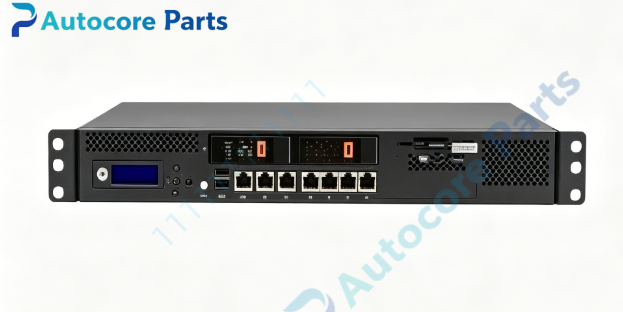

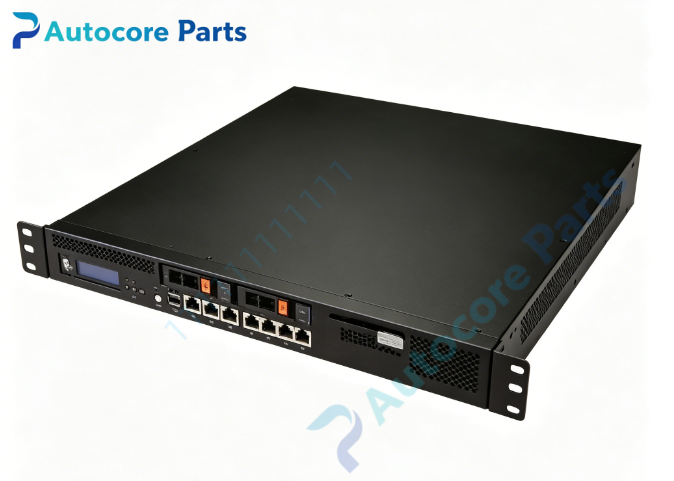

Extreme Networks NX-7510-100R0-WR NX7500 Integrated Services Platform

Technical SpecificationsModel：NX-7510-100R0-WR Brand：Extreme Networks (Zebra legacy) Product Type: 1U rack mount high-capacity WiNG7 wireless controller / multi-service integrated platform

Front / Rear Interfaces:

• 6 × 10/100/1000BASE-T Gigabit RJ45 copper ports

• Optional NMC 2-port 10G SFP+ mezzanine card for high-speed uplink expansion

• 1 × RJ45 serial console port

• 2 × USB 2.0 ports for configuration backup & firmware upgrade

• LCD status display panel

• LED indicators for port activity, power, fan and system fault

Hardware Core:

• 16GB onboard RAM

• 64GB SSD local storage Max Jumbo Frame: 9216 bytes Wireless Management: Base unit without AP license, expandable via license packs, maximum support for 2048 WiNG access points Integrated Services: Central WLAN control, stateful firewall, IPsec / GRE VPN gateway, RADIUS AAA server, DHCP, application visibility, WIPS wireless intrusion prevention, hierarchical multi-site management High Availability: Support 1:1 controller failover, no extra HA license required QoS: Hierarchical hardware QoS for wired and wireless traffic scheduling

Power & Mechanical: Power Supply: Single 300W universal AC PSU, input 100–240V AC 50/60Hz Typical Power Consumption: 110W Cooling: Built-in hot-swappable fan modules Operating temperature：0℃ ~ +40℃ Dimension: 430mm × 42mm × 532mm Weight: Approx 8.62 kg Mounting: Standard 19-inch 1U rack bracket Software OS: WiNG 7

System compatibility

NX-7510-100R0-WR belongs to NX7500 WiNG7 controller family. Compatible with WiNG series wireless APs. Optional NMC card adds dual 10G SFP+ fiber uplink. Supports hierarchical management with NX5500 branch controllers. AP managed quantity activated by separate software license. Supports zero-touch AP adoption.

Function

NX-7510-100R0-WR is high-capacity 1U WiNG7 wireless controller for large campus and multi-site enterprise. It centrally manages up to 2048 WiNG access points, handles SSID policy, RF optimization, client roaming and wireless security. Built-in firewall, IPsec/GRE VPN and AAA functions reduce additional network appliances. Hierarchical management can supervise branch NX5500 controllers under a single management pane. It supports 1:1 HA redundancy to avoid wireless service outage upon single controller failure. SSD ensures reliable firmware and configuration storage. Widely deployed for university campus, hospital, large retail chain and multi-branch enterprise Wi-Fi network.

InstallationFollow ESD protection procedure. Mount appliance on standard 19-inch 1U rack. Install optional NMC 10G mezzanine card if required. Connect AC power cord. Plug RJ45 Ethernet cables to LAN and uplink ports. Access serial console port for initial WiNG7 configuration, import AP capacity licenses, define WLAN profiles and security policies. Verify AP discovery and client access function after power-up.

Interface6 GE RJ45 ports, optional NMC 2×10G SFP+ card,serial console port,2×USB 2.0,LCD panel,status LED indicators for Extreme Networks NX-7510-100R0-WR.

FeatureOriginal Extreme Networks NX-7510-100R0-WR NX7500 WiNG7 wireless controller,1U rack form factor,16GB RAM+64GB SSD,support up to 2048 APs,built-in multi-service gateway,1:1 HA failover without HA license. This spare controller is used for large campus and multi-site enterprise wireless network central management hardware replacement.

DiagnosticController boot failure: Check AC power input and power cord, inspect SSD health status. AP adoption failure: Verify DHCP option43, network route and AP firmware compatibility. VPN tunnel offline: Confirm GRE / IPsec peer parameters, pre-shared key and routing table. HA sync abnormal: Check inter-controller link and matching WiNG7 firmware version. Overheat alarm: Inspect fan tray operation and rack airflow.

Product BriefNX-7510-100R0-WR is Extreme NX7500 series 1U high-capacity WiNG7 wireless controller,classic spare for large campus and multi-site centralized WLAN management.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and replacement.
