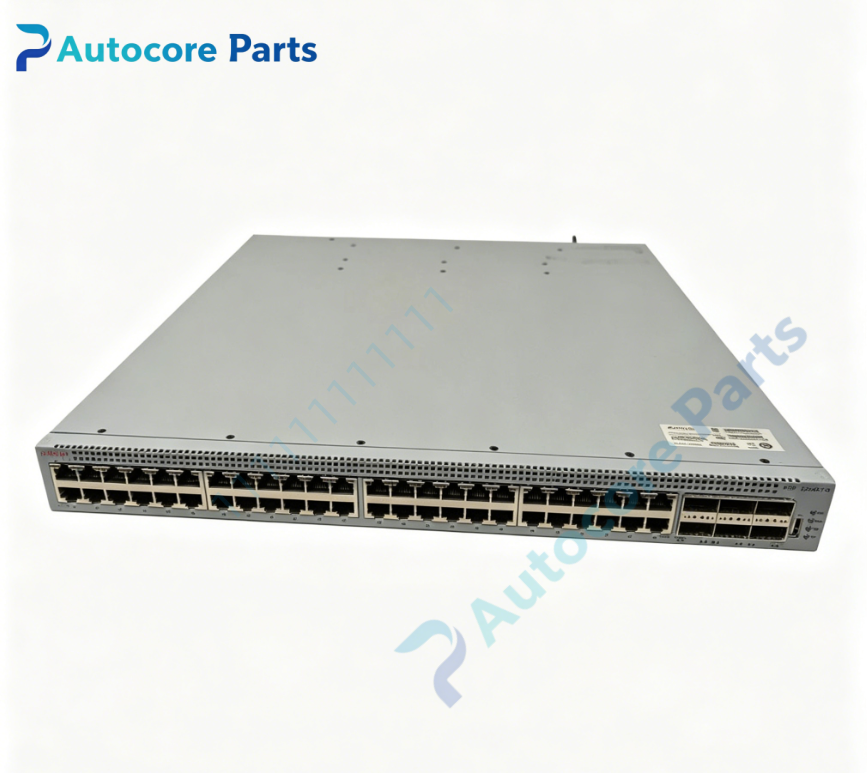

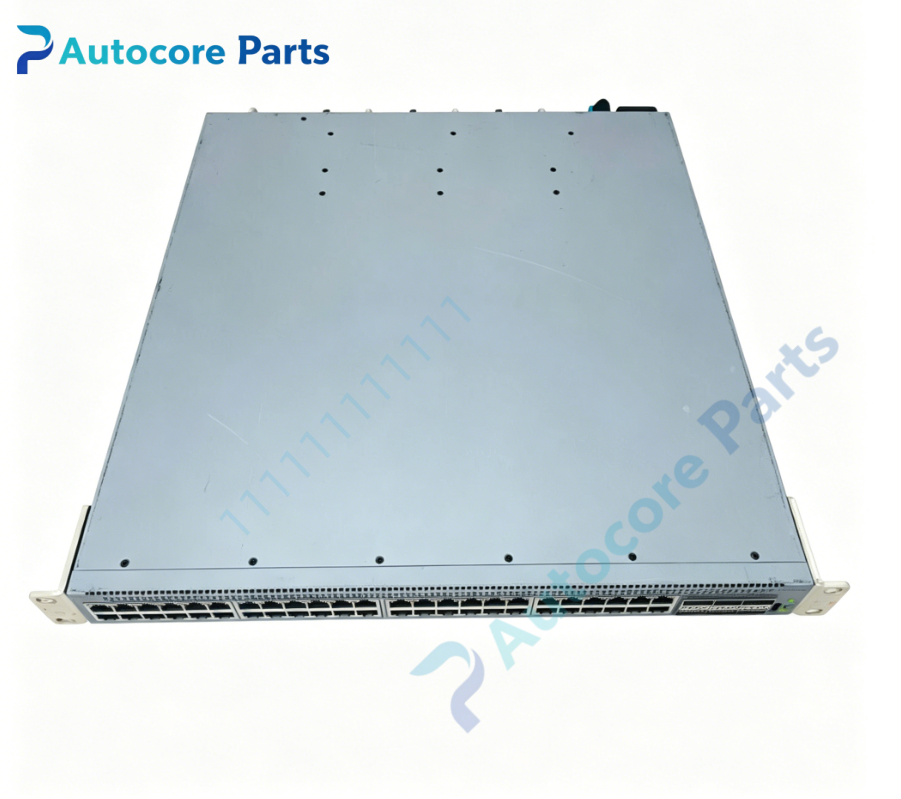

Extreme Networks EC720002X-E6 VSP7254XTQ 10G Copper Switch

Technical SpecificationsModel:EC720002X-E6 Brand: Extreme Networks Product Type: 2RU Fixed Port Top-of-Rack / Aggregation Switch Ports:

• 48 × 10/100/1000/10000BASE-T RJ45 copper ports

• 6 × QSFP28 slots for 40G /100G uplink/stacking Management ports:

• 1 × RJ45 serial console port

• 1 × 10/100/1000M OOB out-of-band management port Redundancy: Hot-swappable dual power supplies, hot-swappable fan trays Airflow: Front-to-rear airflow Switching capacity:1.44 Tbps Forwarding rate:1080 Mpps Supported OS: VOSS Operating temperature:0℃ ~ +40℃ Storage temperature:-40℃ ~ +70℃ Relative humidity:10%~90%, non-condensing Weight:7.2 kg

System compatibilityEC720002X-E6 is Extreme Networks VSP7254XTQ top-of-rack switch from VSP7200 series. Compatible with Extreme validated 10G copper transceivers, QSFP28 40G/100G optical modules and AOC cables. Runs VOSS, supports fabric deployment. Widely used for data center server access and aggregation layer spare replacement.

FunctionEC720002X-E6 handles high-density 10G copper server access and 40G/100G uplink aggregation. It supports full L2 switching, L3 routing, BGP, OSPF, EVPN, VXLAN, ACL and QoS. It reports port status, transceiver DDM, module temperature, fan speed and power health. It triggers alarms for port down, fan failure and over-temperature. Used to replace faulty high-density 10G ToR switches for data center network overhaul.

InstallationPower off before installation. Mount the 2RU switch on 19-inch rack. Install dual hot-swappable power supplies and fan trays. Connect Cat6a/7 copper cables to servers. Insert QSFP28 transceivers or cables for uplink. Connect console port for VOSS configuration. Verify boot, port status and transceiver DDM readings before putting into production.

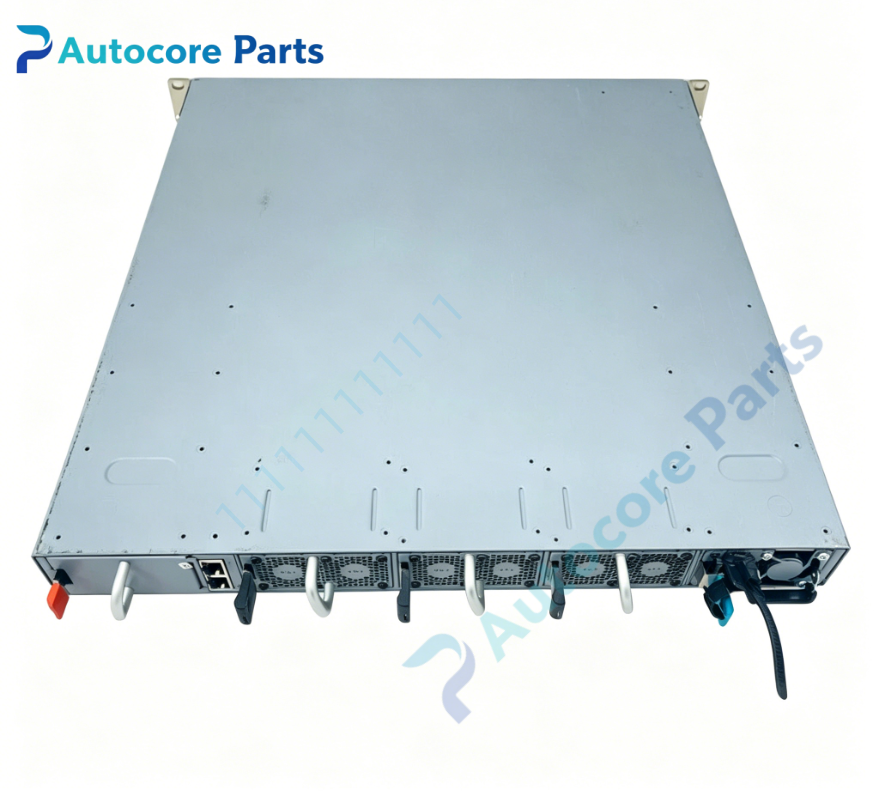

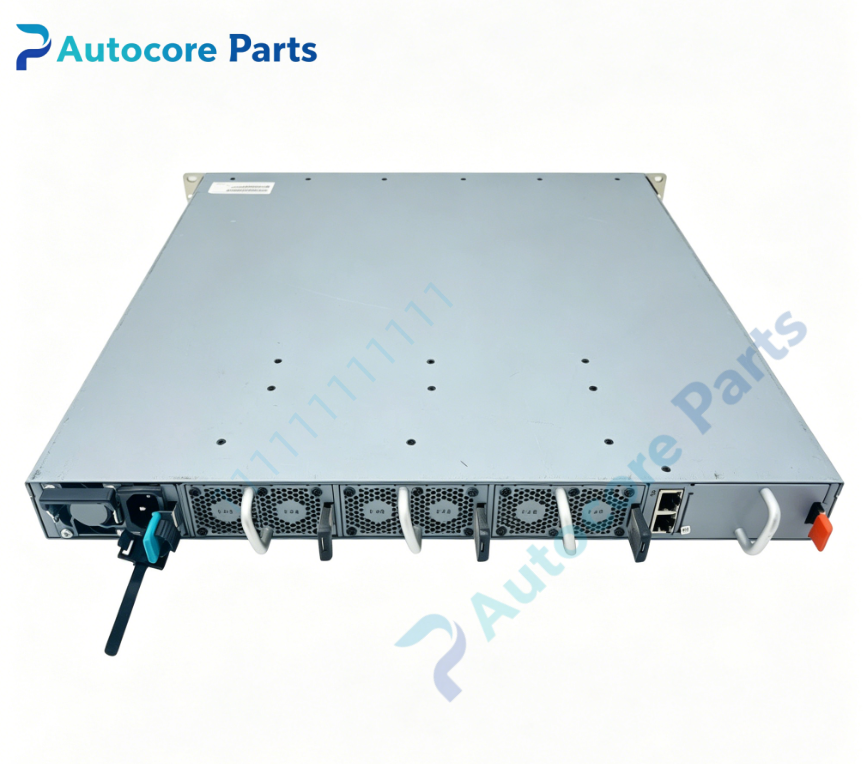

Interface48×10GBASE-T RJ45 ports,6×QSFP28 slots, RJ45 serial console, OOB management port, status LEDs, hot-swap fan/PSU modules, rack mounting ears for Extreme Networks EC720002X-E6.

FeatureOriginal Extreme Networks VSP7200 series VSP7254XTQ switch, 48×10GBASE-T + 6×100G QSFP28, front-to-rear airflow, redundant hot-swappable PSU and fan, VOSS OS, EVPN/VXLAN fabric capability, built-in self-diagnostic function. This spare supports data center high-density server access and aggregation deployment.

DiagnosticSwitch fails to boot: check dual PSU installation and AC power. Copper port link down: verify Cat6a/7 cable quality, cable length and port admin status. QSFP28 no DDM data: confirm Extreme validated transceiver. Over-temperature alarm: check fan tray operation and rack airflow.

Product BriefEC720002X-E6 is Extreme Networks VSP7254XTQ 2RU top-of-rack switch with 48×10GBASE-T copper and 6×QSFP28 40G/100G uplink ports, front-to-rear airflow, classic spare part for data center high-density server access and aggregation overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
