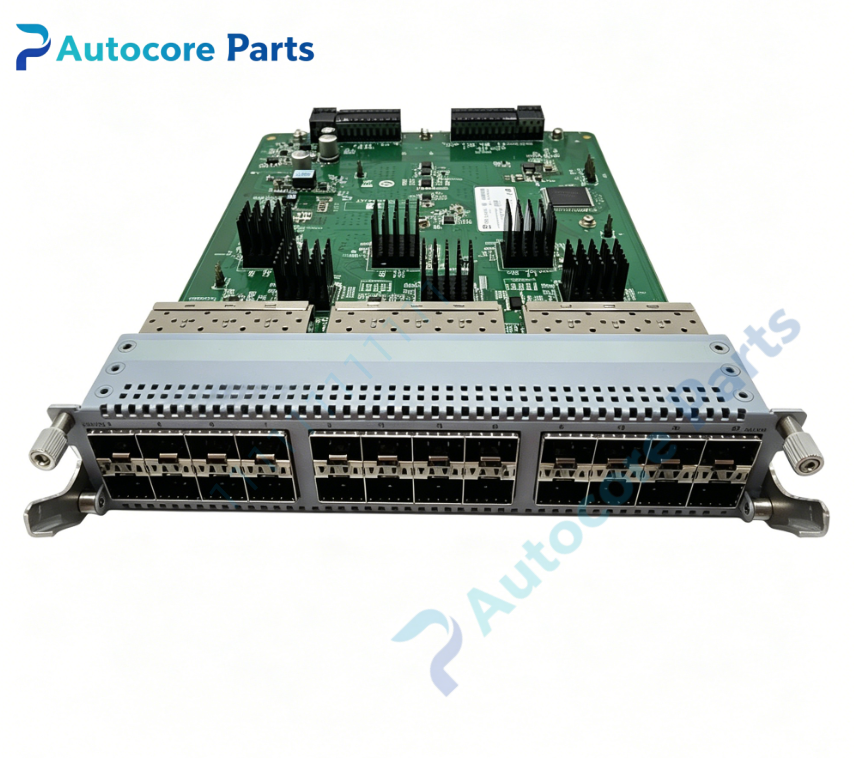

Extreme Networks EC8404007-E6 Gigabit SFP ESM Module

Technical SpecificationsModel:EC8404007-E6 Brand: Extreme Networks Product Type: Hot-swappable Chassis ESM I/O Line Card Compatible chassis:VSP8400 series modular core switch Ports:24 × SFP slots for 1000BASE-SX/LX/ZX transceivers Per port rate:1Gbps Supported OS:VOSS Operating temperature:0℃ ~ +40℃ Storage temperature:-40℃ ~ +70℃ Relative humidity:10%~90%, non-condensing Weight:1.8 kg

System compatibilityEC8404007-E6 (8424GS) is a gigabit fiber high-density ESM module for Extreme VSP8400 core chassis. It works with VSP8404 chassis, compatible with Extreme validated 1G SFP optical transceivers and fiber patch cords. Widely used for enterprise core and data center aggregation layer spare replacement.

FunctionEC8404007-E6 provides 24 independent 1G SFP fiber interfaces for VSP8400 chassis. It handles L2 switching, L3 routing, VLAN, ACL and QoS for gigabit fiber links. It reports port status, transceiver DDM data, module temperature and power consumption to chassis management. Used to replace faulty high-density gigabit fiber line cards for core chassis overhaul.

InstallationHot-swappable replacement. Insert EC8404007-E6 into empty ESM slot of VSP8400 chassis. Tighten captive screws. Insert SFP transceivers and fiber cables. Power on chassis, verify module online status on VOSS. Check port and transceiver DDM readings before putting into production.

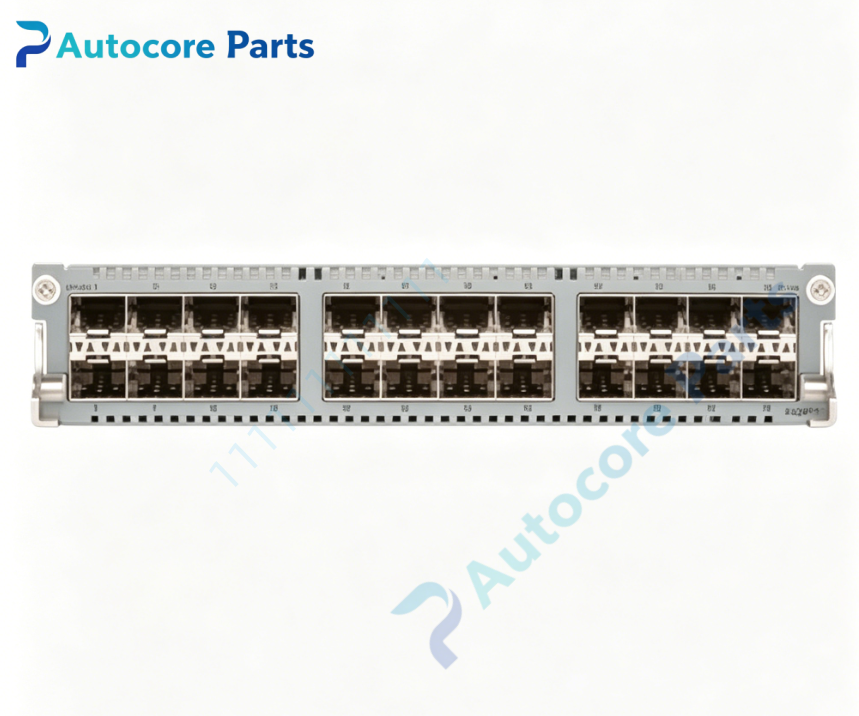

Interface24×SFP front panel slots, module status LEDs, ejector handles for Extreme Networks EC8404007-E6.

FeatureOriginal Extreme Networks VSP8400 8424GS 24-port 1G SFP ESM module, hot-swappable, supports DDM transceiver monitoring, full L2/L3 feature set, VOSS OS, built-in self-diagnostic function. This spare supports data center and enterprise core gigabit fiber aggregation deployment.

DiagnosticModule not detected: check slot seating, captive screws and chassis power. Port link down: verify SFP transceiver, fiber cable and port admin status. Transceiver no DDM data: confirm compatible Extreme validated transceiver. Over-temperature alarm: check chassis fan tray and airflow.

Product BriefEC8404007-E6 is Extreme Networks VSP8400 chassis 24-port 1G SFP hot-swappable ESM I/O line card, classic spare part for data center core gigabit fiber aggregation overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
