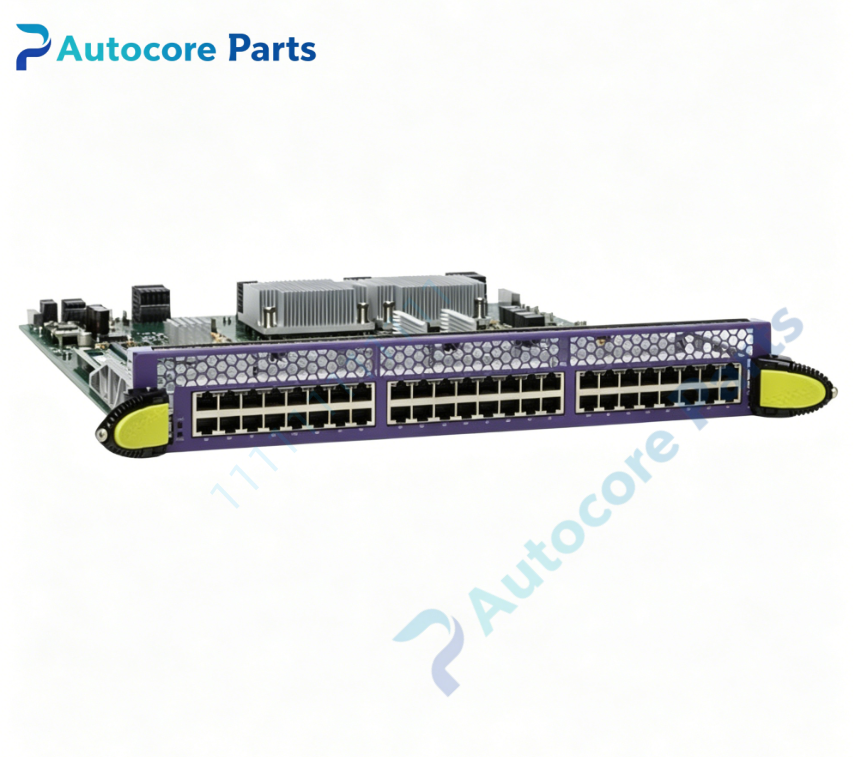

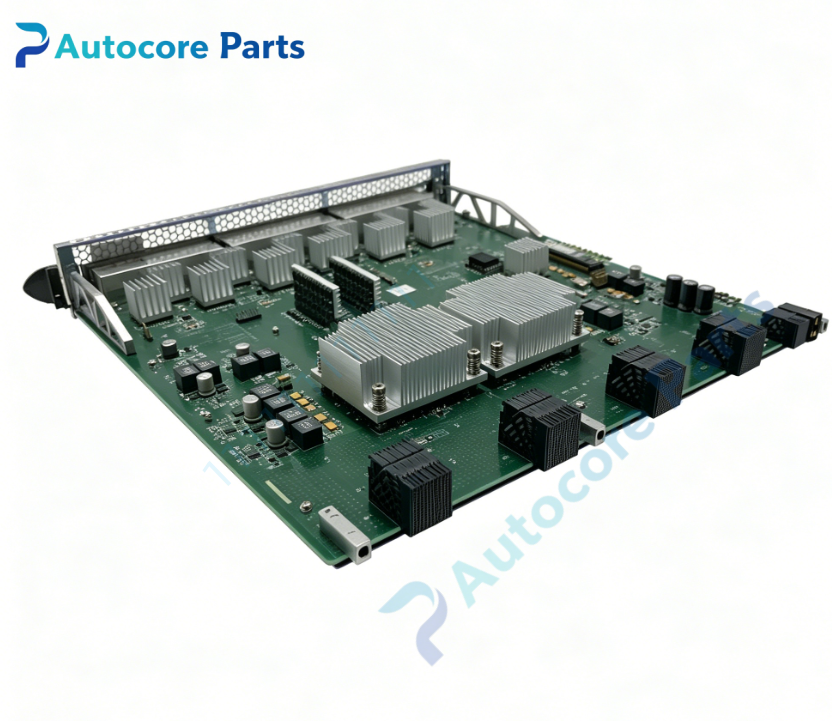

Extreme Networks BDXA-10G48T 10GBASE-T I/O Line Card

Technical SpecificationsModel:BDXA-10G48T Brand: Extreme Networks Product Type: Hot-swappable I/O line card / blade Compatible chassis:BlackDiamond X8 modular core switch Ports:48 × 10/100/1000/10000BASE-T RJ45 copper ports Speed:Wire-speed 10G per port Minimum OS:ExtremeXOS 15.3.1 Max modules per chassis:Up to 8 blades (total 384×10G copper ports) Fabric compatibility:Works with 2.56Tbps or 5.12Tbps fabric modules Operating temperature:0℃ ~ +40℃ Storage temperature:-40℃ ~ +70℃ Relative humidity:10%~90%, non-condensing Weight:2.4 kg

System compatibilityBDXA-10G48T is Extreme Networks high-density 10G copper line card for BlackDiamond X8 chassis. It works with BDX-MM1 management modules, fabric modules, power supplies and fan trays. Requires Cat6a/7 copper cables for 10G operation. Widely used for data center server access and core aggregation spare replacement.

FunctionBDXA-10G48T delivers wire-speed 10GBASE-T copper server interfaces for BlackDiamond X8 chassis. It supports L2 switching, L3 routing, ACL, QoS, FCoE and DCB. It reports port status, transceiver/port statistics, module temperature and power consumption to the chassis management module. Used to replace faulty 10G copper I/O blades for BlackDiamond X8 core chassis overhaul.

InstallationHot-swap replacement without powering off chassis. Insert BDXA-10G48T into empty slot of BlackDiamond X8 chassis. Tighten captive screws. The module automatically initializes and loads configuration from BDX-MM1. Verify module online status and port negotiation on ExtremeXOS before putting into production.

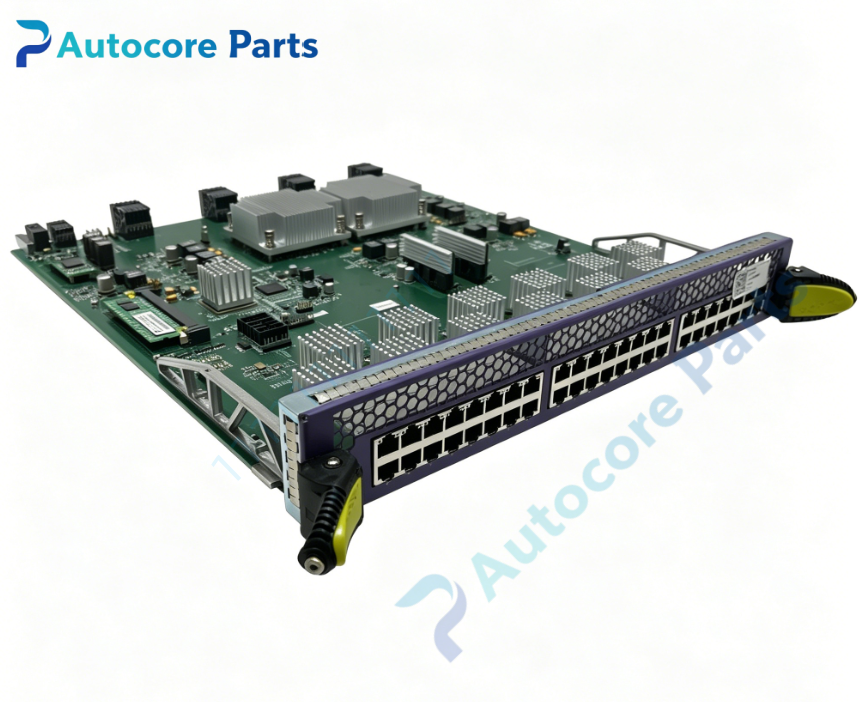

Interface48×10GBASE-T RJ45 ports, module status LEDs, ejector handles for Extreme Networks BDXA-10G48T.

FeatureOriginal Extreme Networks BlackDiamond X8 48-port 10GBASE-T line card, hot-swappable, wire-speed performance, DCB/FCoE support, centralized ExtremeXOS management, built-in self-diagnostic function. This spare supports high-density copper server access in large data center core deployment.

DiagnosticModule not detected: check blade seating, captive screws and backplane contact. Copper port link down: verify Cat6a/7 cable quality, cable length and port admin status. Port negotiation unstable: check cable shielding and reduce cable length. Over-temperature alarm: check chassis fan tray operation and airflow.

Product BriefBDXA-10G48T is Extreme Networks hot-swappable 48-port 10GBASE-T copper line card for BlackDiamond X8 core chassis, wire-speed 10G ports, classic spare part for large data center high-density server access overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
