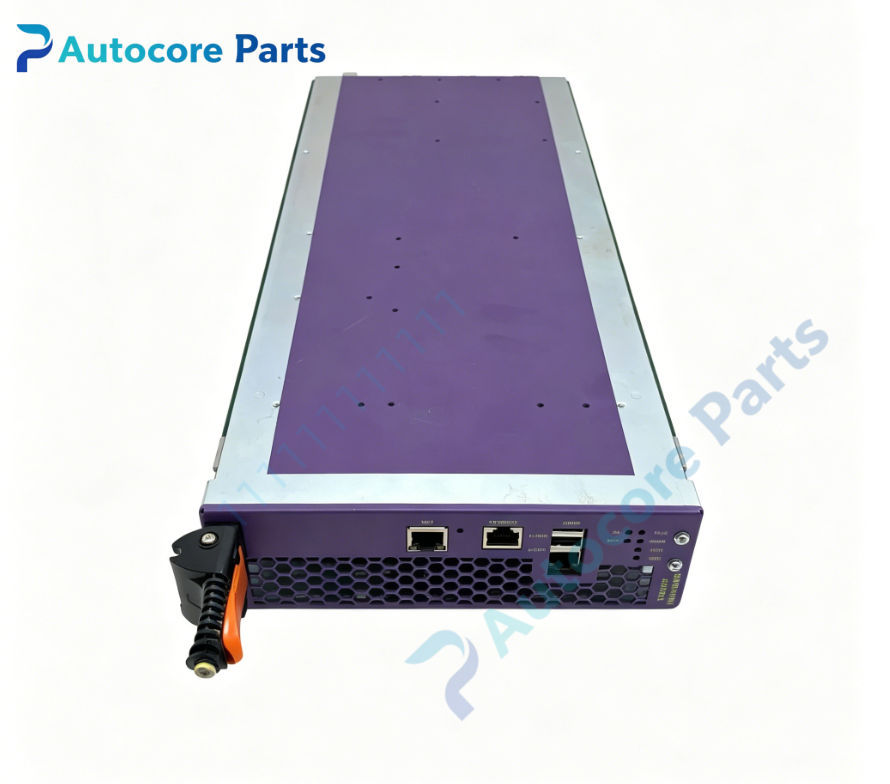

Extreme Networks BDX-MM1 BlackDiamond X8 Management Module

Technical SpecificationsModel:BDX-MM1 Brand: Extreme Networks Product Type: Hot-swappable Chassis Management / Control Plane Module Compatible chassis:BlackDiamond X8 modular core switch Redundancy: Dual modules for 1+1 active/standby redundancy Supported OS:ExtremeXOS, minimum version 15.1.1 Operating temperature:0℃ ~ +40℃ Storage temperature:-40℃ ~ +70℃ Relative humidity:10%~90%, non-condensing Weight:2.1 kg

System compatibilityBDX-MM1 is the primary management and control plane module for Extreme BlackDiamond X8 chassis core switch. Two BDX-MM1 modules can be installed for control plane redundancy. It manages all I/O line cards, fabric modules, power supplies and fan trays inside the chassis. Widely used for large data center core network spare replacement.

FunctionBDX-MM1 executes chassis-level management, system initialization, control plane routing protocol and health monitoring. It collects port status, transceiver DDM, line card temperature, fan speed and PSU health information. It supports hitless active/standby failover. Used to replace faulty management controllers for BlackDiamond X8 core chassis overhaul.

InstallationHot-swap replacement without powering off the whole chassis. Insert BDX-MM1 into the management slot of BlackDiamond X8 chassis. Tighten captive screws. Verify module online status and firmware synchronization on ExtremeXOS. Confirm all line cards and fabric modules are discovered normally before putting into production.

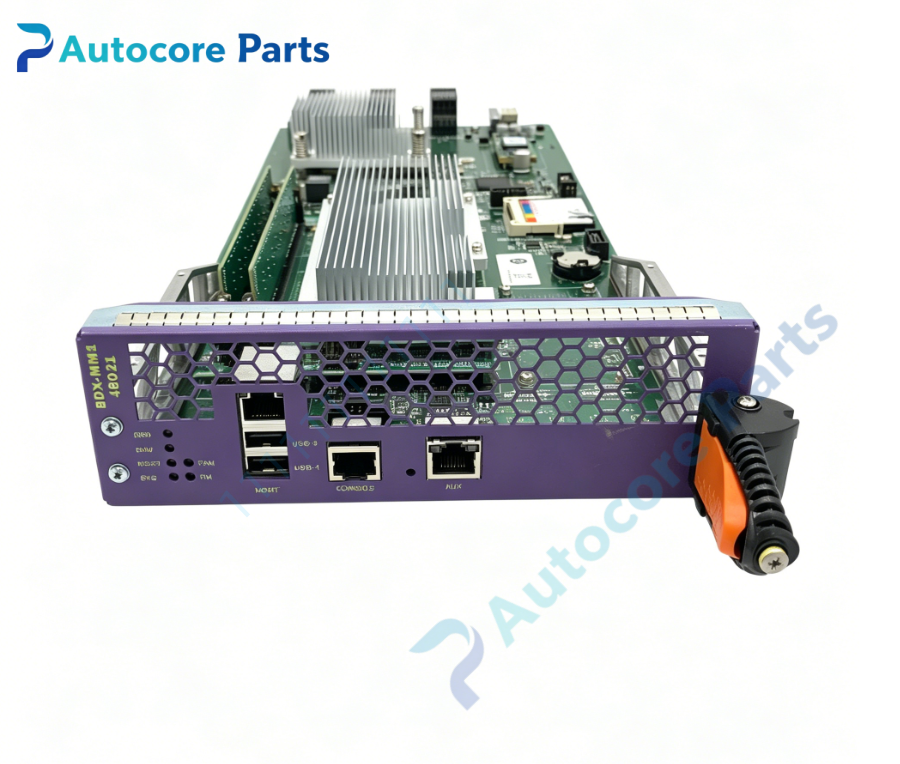

InterfaceStatus LEDs, out-of-band management port, console port, hot-swap ejector latches for Extreme Networks BDX-MM1.

FeatureOriginal Extreme Networks BlackDiamond X8 management module, hot-swappable, 1+1 redundancy support, full L2/L3 control plane, ExtremeXOS operating system, real-time chassis health monitoring, built-in self-diagnostic function. This spare supports high-availability data center core network deployment.

DiagnosticModule not detected: check module seating, captive screws and chassis power. Failover failure: verify firmware version matching between primary and standby BDX-MM1. Line card discovery error: check fabric module status and backplane contact. Over-temperature alarm: check fan tray operation and chassis airflow.

Product BriefBDX-MM1 is Extreme Networks hot-swappable management controller for BlackDiamond X8 core chassis switch, supporting 1+1 active/standby redundancy, classic spare part for data center core high-availability network overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
