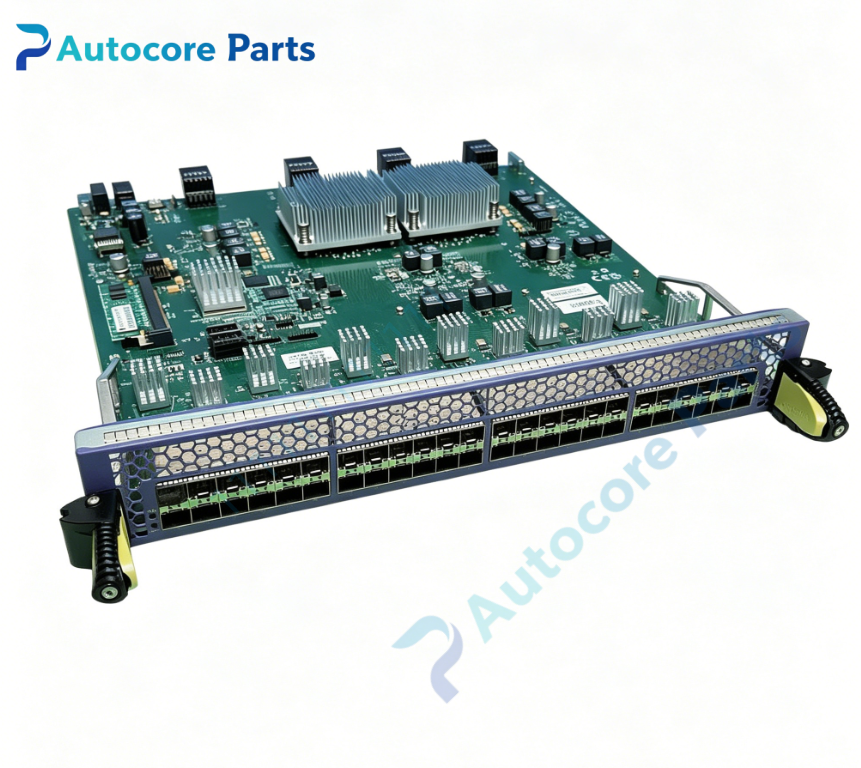

Extreme Networks BDXA-10G48X 10G SFP+ I/O Line Card

Technical SpecificationsModel:BDXA-10G48X Brand:Extreme Networks Product Type:Hot-swappable I/O line card / blade Compatible chassis:BlackDiamond X8 modular core switch Ports:48 × SFP+ slots for 10G optical transceivers Speed:Wire-speed 10G per port Minimum OS:ExtremeXOS 15.1.1 Max modules per chassis:Up to 8 blades Fabric compatibility:Works with 2.56Tbps or 5.12Tbps fabric modules Operating temperature:0℃ ~ +40℃ Storage temperature:-40℃ ~ +70℃ Relative humidity:10%~90%, non-condensing Weight:2.3 kg

System compatibilityBDXA-10G48X is Extreme Networks high-density 10G fiber line card for BlackDiamond X8 chassis. It works with BDX-MM1 management modules, fabric modules, power supplies and fan trays. Compatible with Extreme validated SFP+ 10G SR/LR/ER optical transceivers and fiber patch cords. Widely used for data center server access and core aggregation spare replacement.

FunctionBDXA-10G48X provides wire-speed 10G SFP+ fiber interfaces for BlackDiamond X8 chassis. It supports L2 switching, L3 routing, ACL, QoS, FCoE and DCB. It reports port status, transceiver DDM data, module temperature and power consumption to chassis management module. Used to replace faulty 10G fiber I/O blades for BlackDiamond X8 core chassis overhaul.

InstallationHot-swappable replacement. Insert BDXA-10G48X into empty slot of BlackDiamond X8 chassis. Tighten captive screws. Insert SFP+ transceivers and fiber cables. Power on chassis, verify module online status on ExtremeXOS. Check port and transceiver DDM readings before putting into production.

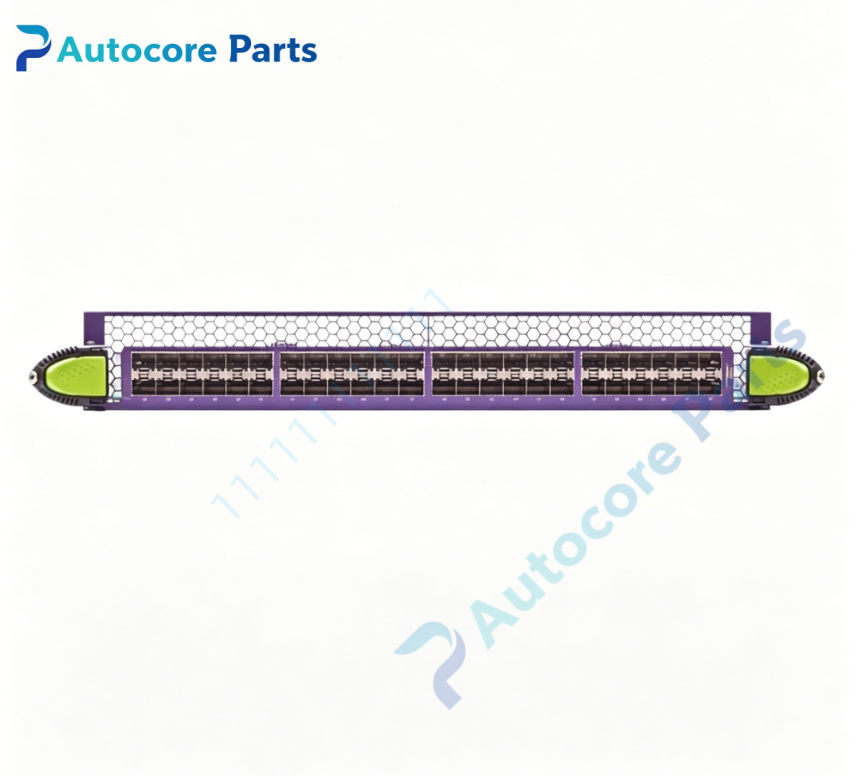

Interface48×SFP+ front panel slots, module status LEDs, ejector handles for Extreme Networks BDXA-10G48X.

FeatureOriginal Extreme Networks BlackDiamond X8 48-port 10G SFP+ line card, hot-swappable, wire-speed performance, DCB/FCoE support, centralized ExtremeXOS management, built-in self-diagnostic function. This spare supports high-density fiber server access in large data center core deployment.

DiagnosticModule not detected: check blade seating, captive screws and backplane contact. Port link down: verify fiber cable, SFP+ transceiver and port admin status. Transceiver no DDM data: confirm Extreme validated SFP+ transceiver. Over-temperature alarm: check chassis fan tray operation and airflow.

Product BriefBDXA-10G48X is Extreme Networks 48-port 10G SFP+ hot-swappable fiber line card for BlackDiamond X8 core chassis, wire-speed 10G fiber ports, classic spare part for large data center high-density fiber server access overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
