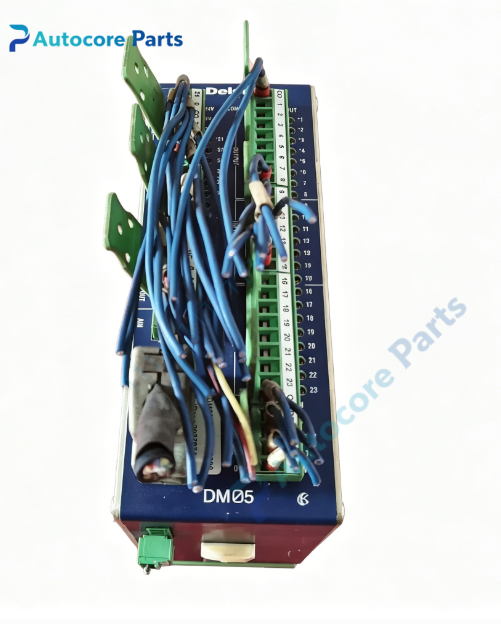

DELEM DM05-K-V1.4 CNC Press Brake Multi-Axis Control Module

Technical Specifications

Model: DM05-K-V1.4 Brand: DELEM (Netherlands) Product Type: CNC Press Brake Multi-Axis Motion Control Module Mounting: Install inside electric cabinet of press brake Operating temperature: 0℃ ~ +45℃ Storage temperature: -20℃ ~ +70℃ Relative humidity: 5%~95%, non-condensing Protection: IP20 Power supply: 24V DC Weight: 0.55 kg

System compatibility

DM05-K-V1.4 is a dedicated multi-axis motion control module for DELEM press brake CNC systems. It communicates with DELEM DA series controllers, matches linear encoders and hydraulic proportional valve units, widely used in metal fabrication workshops for module replacement during bending machine overhaul.

Function

DM05-K-V1.4 serves as multi-axis motion control unit of DELEM bending machine control system. It collects position feedback signals from multiple linear encoders, executes multi-axis closed-loop calculation, outputs analog control signals to hydraulic valves. It continuously monitors axis running status and triggers fault alarm signals once over-travel or pressure abnormalities are detected. It is used to replace damaged modules when the press brake loses multi-axis synchronous bending control.

Installation

Cut off main power supply before installation. Open the electrical cabinet and discharge residual voltage. Remove the old module, install DELEM DM05-K-V1.4 and fasten mounting screws. Connect bus port, encoder cables and hydraulic valve signal terminals. Check wiring definition, download matching machine parameters, carry out multi axis synchronization test before formal production.

Interface

Fieldbus communication port, multi-channel analog output terminals, multi encoder input ports, analog input terminals, digital I/O terminals, status LED indicators for DELEM DM05-K-V1.4 module.

Feature

Original DELEM axis control module, firmware version V1.4, anti-interference circuit design, high-precision multi-channel position sampling, stable bus communication, compact metal casing, built-in pressure amplifier output channel. This legacy spare part supports field repair of old DELEM hydraulic press brake systems.

Diagnostic

Module no response after power on: check 24V DC power supply and fuse for DM05-K-V1.4. Multi axis synchronization deviation: verify encoder wiring polarity and firmware parameter matching. Intermittent alarm popping: inspect cable shielding and cabinet grounding condition.

Product Brief

DM05-K-V1.4 is Dutch DELEM multi-axis motion control module for hydraulic press brake. It executes multi-channel encoder signal acquisition and closed-loop axis control for sheet metal bending operation, classic spare part for legacy metal fabrication machine overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
