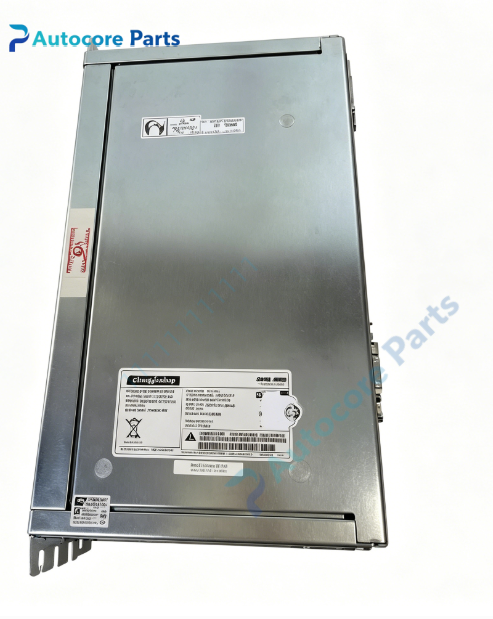

DELEM DM-101 CNC Press Brake Single Axis Control Module

Technical Specifications

Model: DM-101 Brand: DELEM (Netherlands) Product Type: CNC Press Brake Single Axis Motion Control Module Mounting: Install inside electric cabinet of press brake Operating temperature: 0℃ ~ +45℃ Storage temperature: -20℃ ~ +70℃ Relative humidity: 5%~95%, non-condensing Protection: IP20 Power supply: 24V DC Weight: 0.40 kg

System compatibility

DM-101 is a dedicated single-axis motion control module for DELEM press brake CNC systems. It communicates with DELEM DA series controllers, matches linear encoders and hydraulic proportional valve units, widely used in metal fabrication workshops for module replacement during bending machine overhaul.

Function

DM-101 serves as single axis motion control unit of DELEM bending machine control system. It collects position feedback signals from one channel linear encoder, executes single-axis closed-loop calculation, outputs analog control signals to hydraulic valves. It continuously monitors axis running status and triggers fault alarm signals once over-travel or pressure abnormalities are detected. It is used to replace damaged modules when the press brake loses single-axis bending control.

Installation

Cut off main power supply before installation. Open the electrical cabinet and discharge residual voltage. Remove the old module, install DELEM DM-101 and fasten mounting screws. Connect bus port, encoder cable and hydraulic valve signal terminals. Check wiring definition, download matching machine parameters, carry out axis test before formal production.

Interface

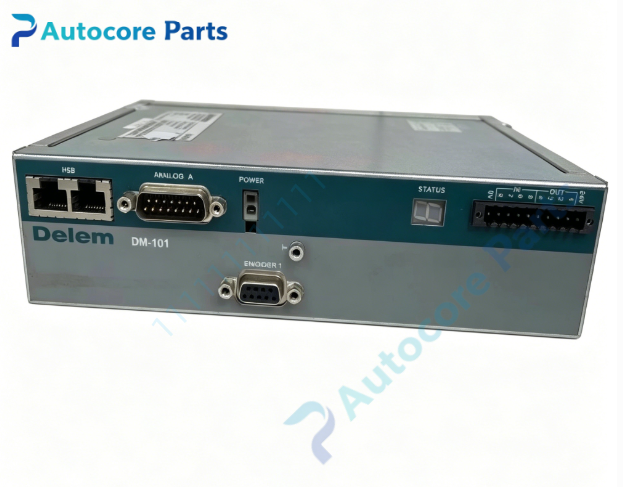

Fieldbus communication port, single analog output terminal, one channel encoder input port, digital I/O terminals, 7-segment diagnostic LED indicators for DELEM DM-101 module.

Feature

Original DELEM single axis control module, anti-interference circuit design, high-precision position sampling, stable bus communication, compact metal casing. This legacy spare part supports field repair of old DELEM hydraulic press brake systems.

Diagnostic

Module no response after power on: check 24V DC power supply and fuse for DM-101. Axis positioning deviation: verify encoder wiring polarity and machine parameter matching. Intermittent alarm popping: inspect cable shielding and cabinet grounding condition.

Product Brief

DM-101 is Dutch DELEM single axis motion control module for hydraulic press brake. It executes single-channel encoder signal acquisition and closed-loop axis control for sheet metal bending operation, classic spare part for legacy metal fabrication machine overhaul.
