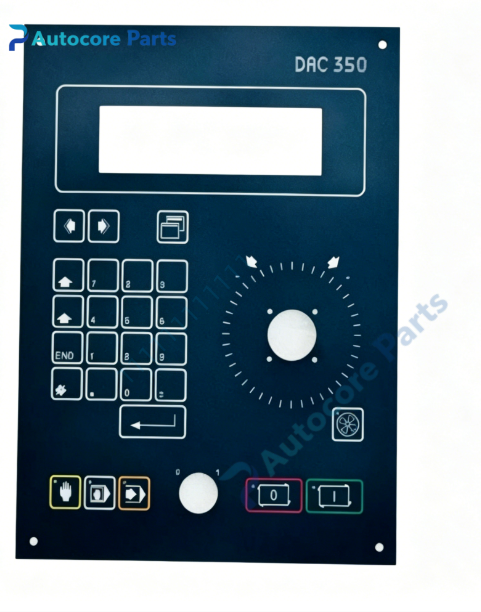

DELEM DAC350 CNC Shearing Machine Controller

Technical Specifications

Model: DAC350 Brand: DELEM (Netherlands) Product Type: CNC Controller for Hydraulic Shearing Machine Mounting: Panel mounting on shear machine cabinet Operating temperature: 0℃ ~ +45℃ Storage temperature: -20℃ ~ +70℃ Relative humidity: 5%~95%, non-condensing Protection: IP20 (front panel) Power supply: 24V DC Weight: 3.0 kg

System compatibility

DAC350 is a full-featured dedicated CNC controller for hydraulic guillotine shearing machines. It works with DELEM DM05 series axis modules, encoders, hydraulic valve modules and Modusys I/O units, supports servo and inverter drive for backgauge, widely used in metal fabrication workshops for controller replacement during sheet metal shear overhaul.

Function

DAC350 serves as the core operation control unit of hydraulic shearing machine. It stores up to 1000 program lines, controls X axis backgauge positioning with retract function. It automatically calculates and adjusts blade gap and cutting angle according to plate thickness and material. It supports ram stroke limitation, workpiece counting and force control. Optional second X axis is available. It monitors machine running status and triggers alarm signals once over-travel or hydraulic faults are detected. It is used to replace damaged controllers when the guillotine shear fails to auto adjust cutting parameters.

Installation

Cut off main power supply before installation. Reserve panel cutout on machine cabinet, mount DAC350 and lock fixing fasteners. Connect 24V DC power, HSB bus, encoder cables, hydraulic valve signal lines and digital I/O terminals. Check wiring definition, upload machine parameters, perform trial cutting test before formal production.

Interface

HSB bus communication port, encoder ports, analog input & output terminals, digital I/O terminals, RS232 service communication port, handwheel interface, status LED indicators for DELEM DAC350 controller.

Feature

Original DELEM shear controller, high brightness monochrome LCD display, membrane keypad, handwheel manual jog, multi-language menu, absolute/incremental measurement, power-off position memory, Modusys I/O architecture. This legacy spare part supports field repair of old hydraulic guillotine shear systems.

Diagnostic

No display after power on: check 24V DC power supply and power fuse for DAC350. Backgauge positioning deviation: verify encoder wiring polarity and machine parameter setting. Intermittent hydraulic alarm: inspect signal cable shielding and cabinet grounding condition.

Product Brief

DAC350 is Dutch DELEM full function CNC controller for hydraulic guillotine shearing machine. It executes automatic cutting parameter calculation and backgauge closed-loop control for sheet metal shearing operation, classic spare part for legacy metal fabrication machine overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
