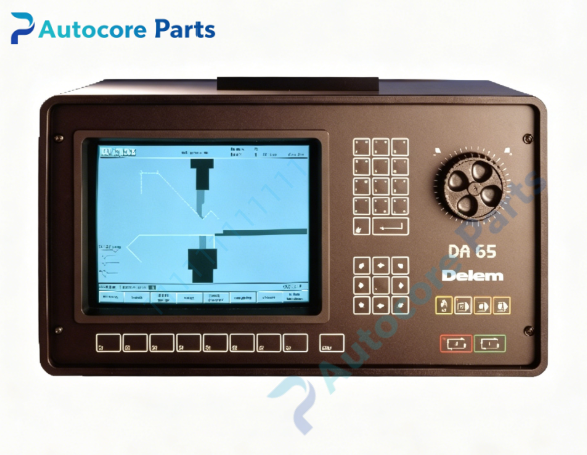

DELEM DA-65 CNC Press Brake Controller

Technical Specifications

Model: DA-65 Brand: DELEM (Netherlands) Product Type: CNC Press Brake Controller Mounting: Panel mounting on bending machine cabinet Operating temperature: 0℃ ~ +45℃ Storage temperature: -20℃ ~ +70℃ Relative humidity: 5%~95%, non-condensing Protection: IP20 (front panel) Power supply: 24V DC Weight: 5.2 kg

System compatibility

DA-65 is a high-end DAonWindows CNC controller for DELEM electro-hydraulic synchronous press brake systems. It communicates with DELEM DM series axis control modules, linear encoders and hydraulic proportional valve units, suitable for tandem and multi-cylinder bending machines, widely used in metal fabrication workshops for controller replacement and machine retrofit.

Function

DA-65 serves as the core operation control unit of hydraulic press brake. It supports 2D graphical part programming, automatic bend sequence calculation and bend simulation, integrated collision detection function. It stores large capacity bending programs, tool libraries and material parameters, realizes Y1,Y2,X,R,Z multi-axis closed-loop positioning control, supports automatic crowning compensation and frame deflection correction. It monitors ram position, bending tonnage and machine running status, and triggers alarm signals once over-travel or hydraulic faults are detected. It is used to replace damaged controllers when the electro-hydraulic press brake cannot run advanced graphical bending programming.

Installation

Cut off main power supply before installation. Reserve panel cutout on machine cabinet, mount DA-65 and lock fixing fasteners. Connect 24V DC power, fieldbus, encoder cables and hydraulic valve signal terminals. Check wiring definition, upload machine parameters, perform trial bending test before formal production.

Interface

Dual USB ports, Ethernet communication port, fieldbus interface, encoder input ports, digital I/O terminals, status LED indicators for DELEM DA-65 controller.

Feature

Original DELEM DAonWindows controller, 12 inch TFT color display, embedded Windows operating system, built-in industrial PLC, support Profile-T offline programming software, network data transmission, USB program backup and restore. This legacy spare part supports field repair and upgrade of old DELEM electro-hydraulic press brake systems.

Diagnostic

No display after power on: check 24V DC power supply and power fuse for DA-65. Graphic program calculation error: verify machine parameter configuration and tool library data. Intermittent communication alarm: inspect bus cable shielding and cabinet grounding condition.

Product Brief

DA-65 is Dutch DELEM Windows embedded CNC controller for electro-hydraulic synchronous press brake. It executes 2D graphic programming and multi-axis closed-loop control with bend simulation for sheet metal bending operation, classic spare part for legacy metal fabrication machine overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
