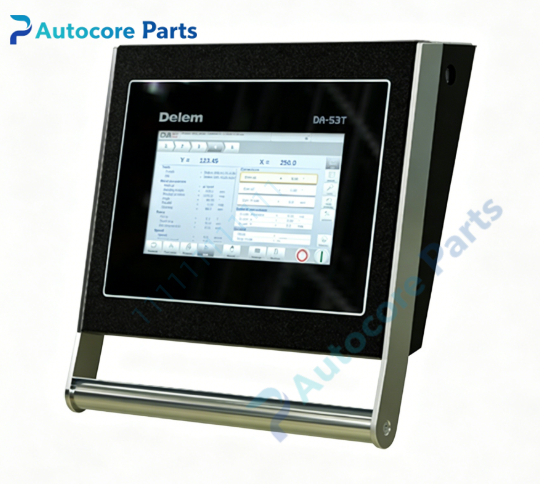

DELEM DA-53T CNC Press Brake Touch Controller

Technical Specifications

Model: DA-53T Brand: DELEM (Netherlands) Product Type: CNC Press Brake Touch Controller Mounting: Panel / swing arm mounting on bending machine cabinet Operating temperature: 0℃ ~ +45℃ Storage temperature: -20℃ ~ +70℃ Relative humidity: 5%~95%, non-condensing Protection: IP20 (front panel) Power supply: 24V DC Weight: 4.0 kg

System compatibility

DA-53T is a compact touchscreen CNC controller for modern hydraulic press brake systems. It cooperates with DELEM DM series axis control modules, linear encoders and hydraulic proportional valve units, compatible with torsion bar and electro-hydraulic synchronous bending machines, widely used in metal fabrication workshops for controller replacement during machine overhaul.

Function

DA-53T serves as the core touch operation control unit of hydraulic press brake. It adopts numerical touch programming, stores abundant bending programs, tool libraries and material parameters. It supports up to 4 axes control including Y1,Y2,X,R, built-in automatic crowning compensation function. It monitors ram position, tonnage and machine running status, and triggers alarm signals once over-travel or hydraulic faults are detected. It is used to replace damaged controllers when the press brake cannot run touch screen bending programming.

Installation

Cut off main power supply before installation. Reserve panel cutout on machine cabinet, mount DA-53T and lock fixing fasteners. Connect 24V DC power, fieldbus, encoder cables and hydraulic valve signal terminals. Check wiring definition, upload machine parameters, perform trial bending test before formal production.

Interface

USB port, Ethernet communication port, encoder input ports, digital I/O terminals, integrated valve amplifier interface, status LED indicators for DELEM DA-53T controller.

Feature

Original DELEM touch controller, 10.1 inch widescreen color TFT multi-touch display, hot-key shortcut navigation, USB program backup & restore, advanced Y-axis hydraulic control algorithm, optional TandemLink dual machine linkage function. This spare part supports field repair and upgrade of DELEM hydraulic press brake systems.

Diagnostic

No display after power on: check 24V DC power supply and power fuse for DA-53T. Axis positioning deviation: verify encoder wiring polarity and machine parameter matching. Intermittent communication alarm: inspect bus cable shielding and cabinet grounding condition.

Product Brief

DA-53T is Dutch DELEM touchscreen CNC controller for hydraulic press brake. It executes numerical touch programming and up to 4 axes closed-loop control with crowning compensation for sheet metal bending operation, classic spare part for metal fabrication machine overhaul.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
