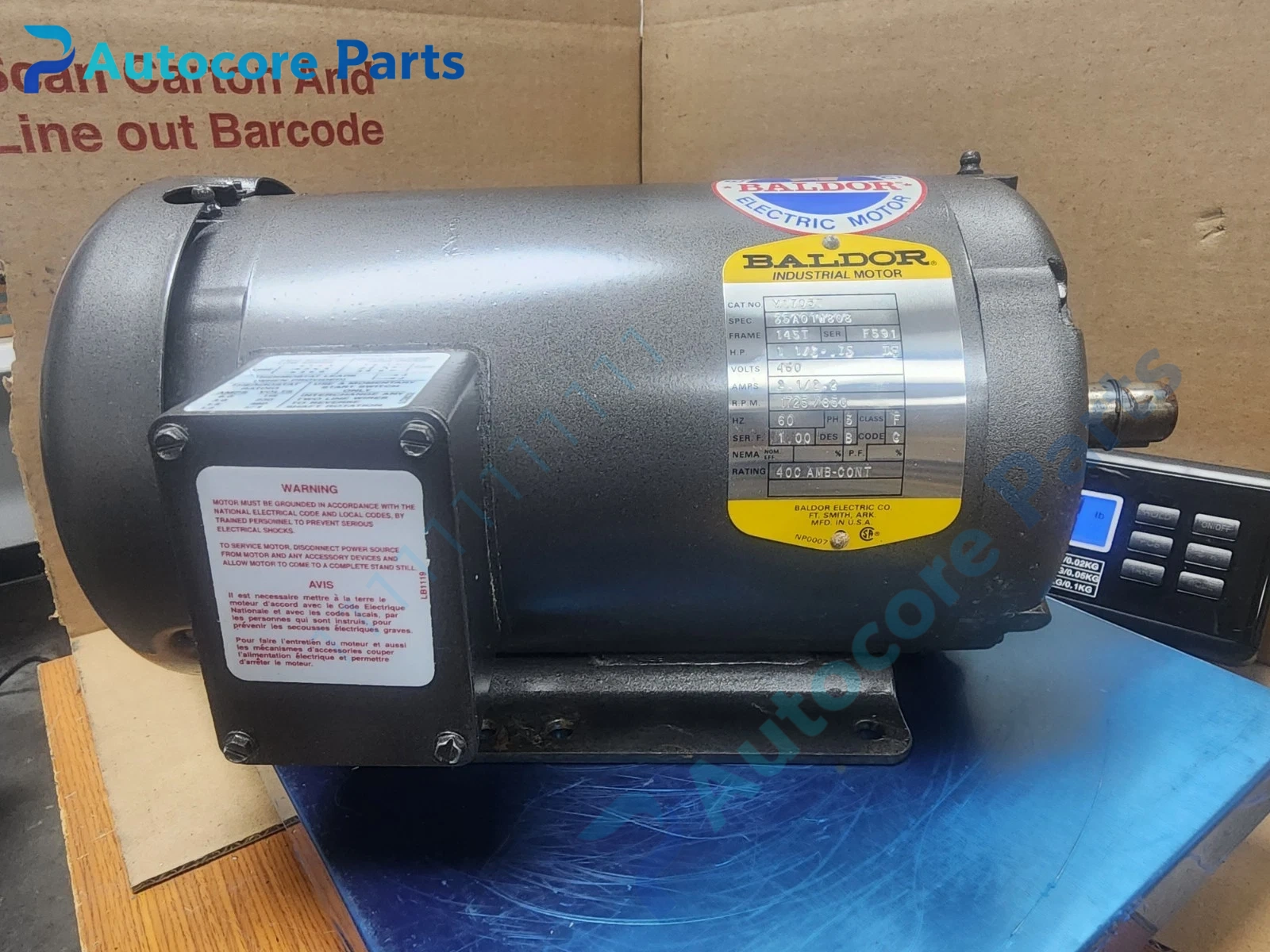

Baldor M1705T Two-Speed Induction Motor Unit

Module Feature

M1705T belongs to Baldor multi-speed series three-phase squirrel-cage induction motor,NEMA 145TC cast iron frame,foot mount plus C-face flange. Rated 1.5HP dual speed 1800/900RPM,460VAC,TEFC totally enclosed fan cooled,constant torque single winding design,Design B,Class F insulation,service factor 1.15. Widely used for fans,blowers,conveyors and other equipment requiring two fixed operating speeds.

Working principle

Change winding connection mode to switch pole pairs to realize two different synchronous speeds. Shaft-mounted fan provides forced air cooling inside sealed TEFC housing. Dual mounting design supports foot base installation or direct C-face coupling to reducers and pumps.

Onboard components

Cast iron frame,multi-tap stator winding,squirrel-cage rotor assembly,ball bearings,cooling fan,fan cover,multi-terminal terminal box,keyed output shaft.

LED indicators

No built-in LED indicators.

Hardware self-diagnosis

Winding continuity & insulation resistance test,bearing noise and temperature inspection,terminal wiring check,vibration measurement.

Programming software

No dedicated programming software.

Electrical & Process Parameters

Model:M1705T Brand:Baldor Device type:Two-Speed 3-Phase Induction Motor Power:1.5HP Speed:1800 / 900 RPM Voltage:460VAC Phase:3PH Frame:145TC Enclosure:TEFC Frequency:60Hz Insulation:Class F Service factor:1.15 Cooling:Shaft mounted fan forced cooling Protection:TEFC enclosure prevents dust and moisture ingress

Mechanical & Structure

Mounting:Foot mount + C-face flange mount Protection class:IP54 Housing:Cast iron housing

Environmental

Operating temperature:-10℃ ~ +40℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non-condensing Certification:CE,UL compliant Status: Baldor original 2-speed motor for fan,blower and conveyor two-speed fixed operation

Installation

Follow strict safety procedure before handling.Mount motor on rigid base and align coupling.Connect three-phase power cable to multi-tap terminal box,verify high/low speed rotation direction before commissioning.

Interface

Foot mounting holes,C-face flange interface,multi-speed power terminal block,keyed shaft output interface.

Diagnostic

Speed switching failure:incorrect tap wiring. Abnormal noise:bearing wear,loose fan or rotor imbalance. Overheat:overload,blocked cooling fan or wrong voltage.

Product Brief

Baldor M1705T NEMA 145TC cast iron dual-speed TEFC three-phase motor,1.5HP 1800/900RPM,460V,foot and C-face flange mounting,for fans and conveyors needing two fixed operating speeds.
