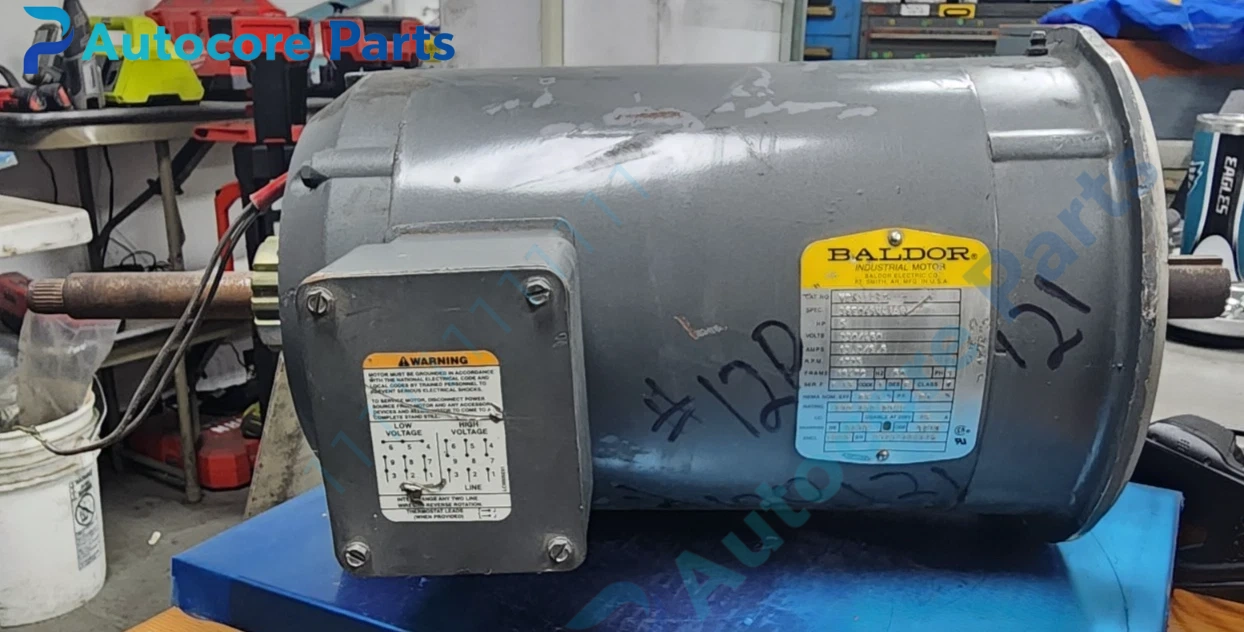

Baldor VBM3615T Brake Induction Motor Unit

Module Feature

VBM3615T belongs to Baldor VBM series spring-set brake motor. Rated 5HP,1745RPM,208/230/460VAC,NEMA 184TC steel frame,foot mount plus C-face flange. TEFC totally enclosed fan cooled enclosure. Built-in power-off electromagnetic brake,spring applied brake engages automatically when power cuts off,manual release lever for maintenance. NEMA Design B,Class F insulation,continuous duty. This model is discontinued. Widely used on conveyors,material handling equipment and machinery requiring reliable holding brake.

Working principle

Three-phase AC generates rotating magnetic field to drive squirrel-cage rotor. When motor power is cut,spring-set brake engages immediately to lock shaft and hold load. Brake coil energizes together with motor power to release brake during normal running. Shaft fan provides forced air cooling inside TEFC housing.

Onboard components

Steel motor frame,stator winding,squirrel-cage rotor,ball bearings,spring-set electromagnetic brake assembly,manual release lever,cooling fan,fan cover,terminal box,keyed output shaft.

LED indicators

No built-in LED indicators.

Hardware self-diagnosis

Winding insulation resistance test,bearing noise & temperature inspection,brake torque test,visual check of brake friction disc wear and fan damage.

Programming software

No dedicated programming software.

Electrical & Process Parameters

Model:VBM3615T Brand:Baldor Device type:3-Phase TEFC Spring-Set Brake Motor Power:5HP Speed:1745RPM Voltage:208/230/460VAC Phase:3PH Frame:184TC Enclosure:TEFC Frequency:60Hz Insulation:Class F Cooling:Shaft mounted fan forced cooling Protection:TEFC enclosure for dust and moisture protection,spring power-off holding brake

Mechanical & Structure

Mounting:Foot mount + C-face flange mount Protection class:IP54 Housing:Stamped steel housing

Environmental

Operating temperature:-10℃ ~ +40℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non-condensing Certification:CE,UL compliant Status: Baldor discontinued 184TC brake motor for conveyor and material handling equipment

Installation

Follow strict safety procedure before handling.Mount motor to rigid base and align coupling.Connect motor power and brake coil wiring.Verify motor rotation and test brake engage/release function before full load commissioning.

Interface

Foot mounting holes,C-face flange interface,power terminal block,keyed shaft output interface,brake coil terminals.

Diagnostic

Motor runs but brake will not release:brake coil missing power or coil burnout. Brake dragging:friction disc wear or incorrect air gap. Abnormal noise:bearing wear or brake mechanical interference. Overheat:overload or brake not fully released.

Product Brief

Baldor VBM3615T NEMA 184TC footed C-face TEFC brake motor,5HP 1745RPM,208/230/460V,built-in spring power-off holding brake,used for conveyor and material handling machinery requiring load holding and emergency stop.
