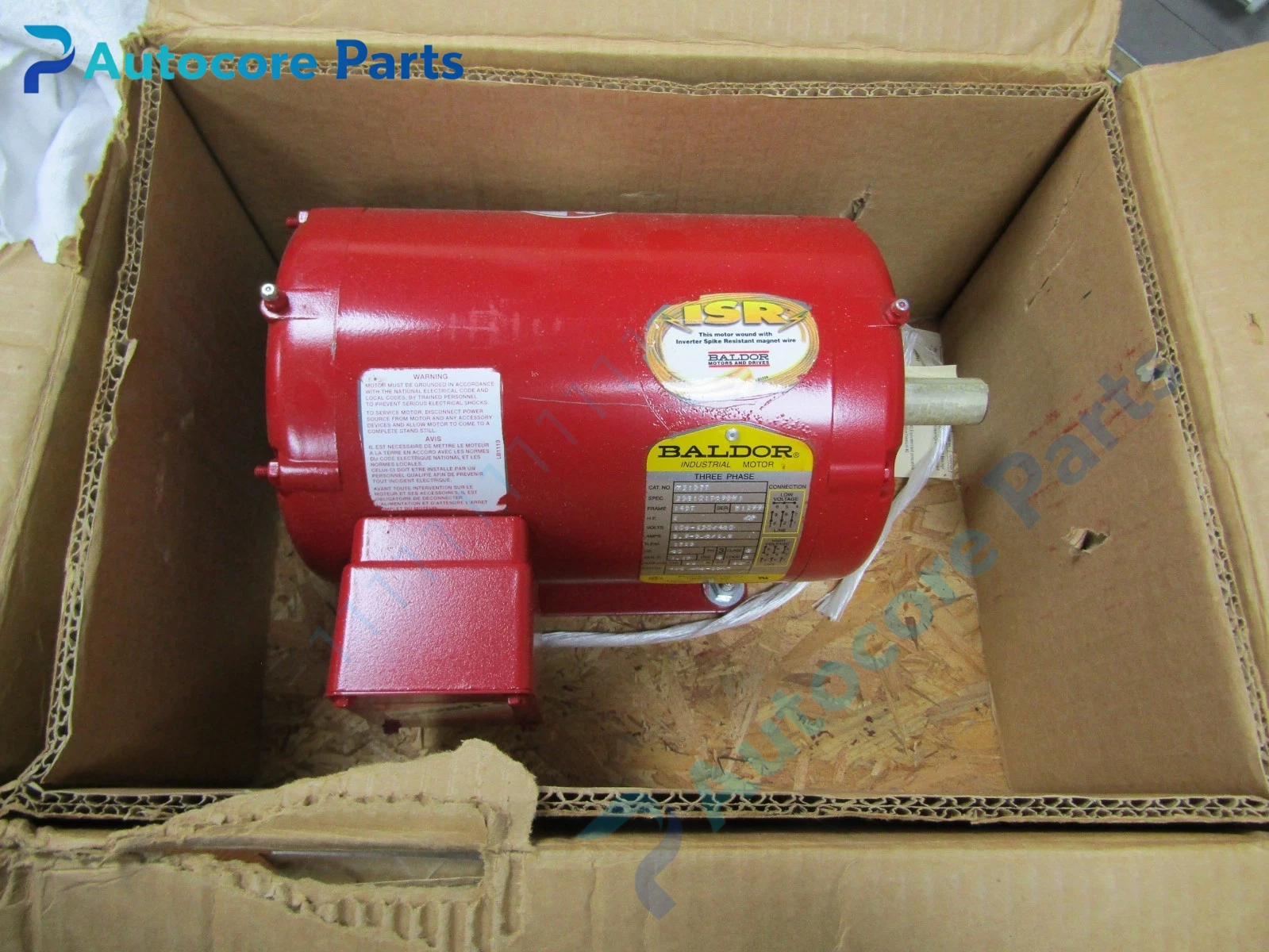

Baldor M3157T Three Phase Induction Motor Unit

Module Feature

M3157T belongs to Baldor general-purpose three-phase squirrel-cage induction motor. NEMA 145T steel foot mount frame,rated 2HP,1800RPM,208-230/460VAC,TEFC totally enclosed fan cooled construction. NEMA Design B torque characteristic,Class F insulation,service factor 1.15,continuous duty rating. Widely used on fans,pumps,blowers and material handling equipment.

Working principle

Three-phase alternating current generates rotating magnetic field inside stator winding,induces current in squirrel-cage rotor to produce driving torque. Shaft-mounted fan delivers forced air cooling for sealed TEFC housing to dissipate winding heat.

Onboard components

Steel motor frame,stator winding,squirrel-cage rotor assembly,ball bearings,shaft cooling fan,fan cover,terminal box,keyed output shaft.

LED indicators

No built-in LED indicators.

Hardware self-diagnosis

Winding continuity & insulation resistance test,bearing noise and temperature check,visual inspection for fan damage and housing corrosion,vibration test.

Programming software

No dedicated programming software.

Electrical & Process Parameters

Model:M3157T Brand:Baldor Device type:General Purpose 3-Phase Induction Motor Power:2HP Speed:1800RPM Voltage:208-230/460VAC Phase:3PH Frame:145T Enclosure:TEFC Frequency:60Hz Insulation:Class F Service factor:1.15 Cooling:Shaft mounted fan forced cooling Protection:TEFC enclosure prevents dust and moisture ingress

Mechanical & Structure

Mounting:Foot mount Protection class:IP54 Housing:Stamped steel housing

Environmental

Operating temperature:-10℃ ~ +40℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non-condensing Certification:CE,UL compliant Status: Baldor original NEMA 145T general purpose motor for industrial fan and pump applications

Installation

Follow strict safety procedure before handling.Mount motor onto rigid base and align coupling with load.Connect three-phase power cable to terminal box,check rotation direction before full load commissioning.

Interface

Foot mounting holes,power terminal block,keyed shaft output interface.

Diagnostic

Fail to start:phase loss,low supply voltage or winding damage. Abnormal noise:bearing wear,loose fan or rotor imbalance. Overheat:overload,blocked cooling fan or mismatched voltage.

Product Brief

Baldor M3157T NEMA 145T foot mount TEFC three-phase motor,2HP 1800RPM,208-230/460V,Class F insulation,used for driving industrial fans,pumps and general machinery.
