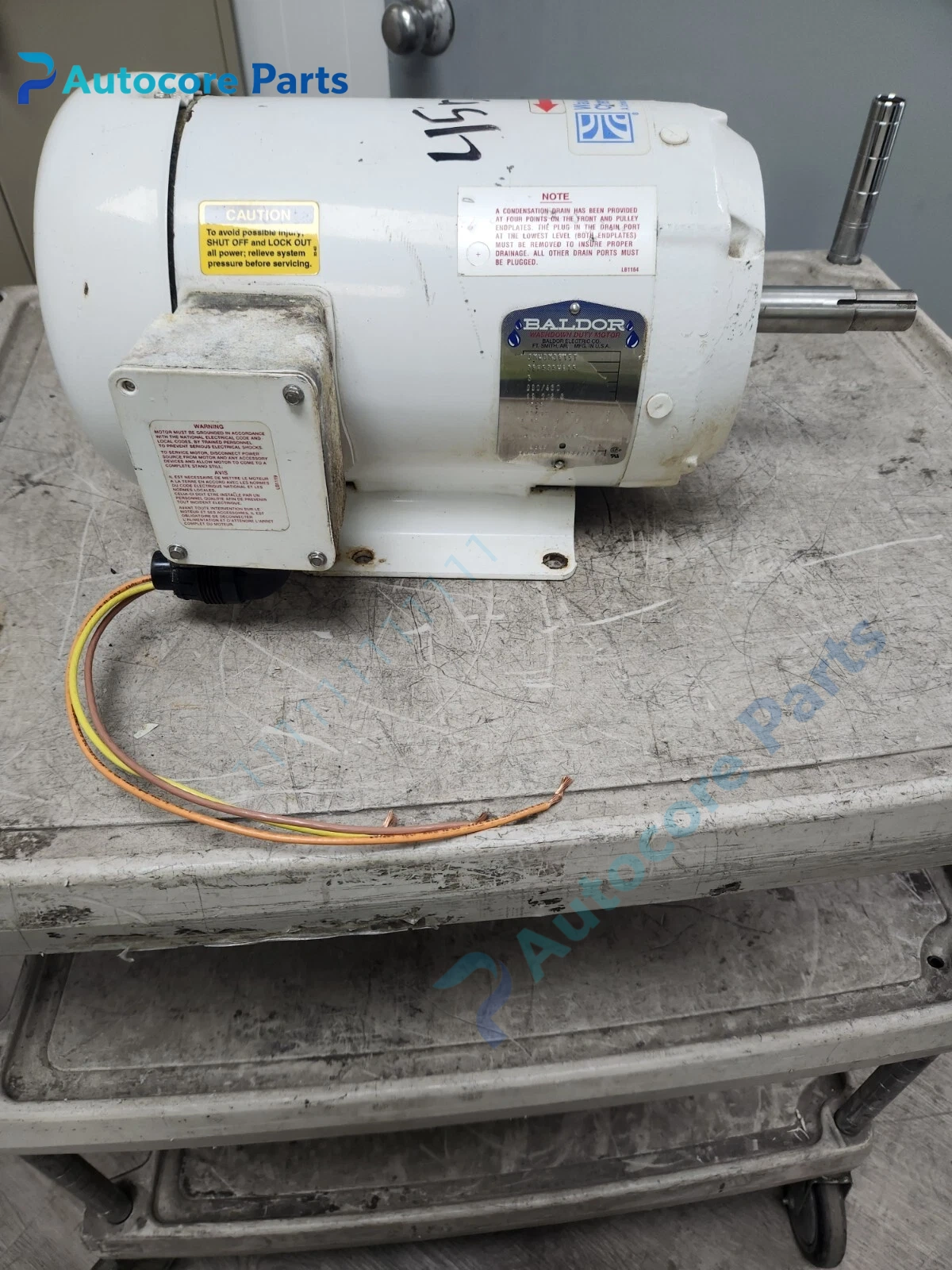

Baldor JMWDM3615T Washdown Duty Induction Motor Unit

Module Feature

JMWDM3615T belongs to Baldor washdown duty series three-phase squirrel-cage induction motor. Rated 5HP,1750RPM,208-230/460VAC,NEMA 184JM frame,C-face footless design,TEFC totally enclosed fan cooled. Constructed with corrosion-resistant epoxy coating,stainless steel fasteners and shaft slinger seal for high-pressure washdown environment. Design B torque curve,Class F insulation,service factor 1.15. Widely used for close-coupled pumps in food,beverage and sanitary processing plants.

Working principle

Three-phase power generates rotating magnetic field to drive squirrel-cage rotor. Shaft-mounted fan provides forced air cooling inside fully sealed TEFC housing. Special sealing structure prevents ingress of water,cleaning chemical and moisture during washdown sanitation cycle.

Onboard components

Epoxy coated motor frame,stator winding,squirrel-cage rotor,double-sealed ball bearings,shaft slinger,stainless steel hardware,cooling fan,fan cover,terminal box.

LED indicators

No built-in LED indicators.

Hardware self-diagnosis

Winding insulation resistance test,bearing noise & temperature check,seal inspection,visual check of coating damage and corrosion.

Programming software

No dedicated programming software.

Electrical & Process Parameters

Model:JMWDM3615T Brand:Baldor Device type:Washdown Duty 3-Phase Induction Motor Power:5HP Speed:1750RPM Voltage:208-230/460VAC Phase:3PH Frame:184JM Enclosure:TEFC Frequency:60Hz Insulation:Class F Service factor:1.15 Cooling:Shaft mounted fan forced cooling Protection:TEFC enclosure + shaft slinger seal against water and chemical splash

Mechanical & Structure

Mounting:C-face flange mount,footless Protection class:IP54 Housing:Epoxy coated cast iron housing

Environmental

Operating temperature:-10℃ ~ +40℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non-condensing Certification:CE,UL compliant Status: Baldor original washdown duty motor for sanitary pump application in food and beverage industry

Installation

Follow strict safety procedure before handling.Align C-face flange and couple directly to pump casing.Connect three-phase power cable to terminal box,verify rotation direction before commissioning.

Interface

C-face flange interface,power terminal block,keyed shaft output interface.

Diagnostic

Nuisance trip:overload,low voltage or insulation degradation caused by washdown moisture. Abnormal noise:bearing wear or rotor imbalance. Water ingress:damaged shaft slinger seal or cracked coating.

Product Brief

Baldor JMWDM3615T 5HP NEMA 184JM footless C-face TEFC washdown motor,1750RPM 208-230/460V,corrosion resistant construction for sanitary close-coupled pump in food and beverage wet processing environment.
