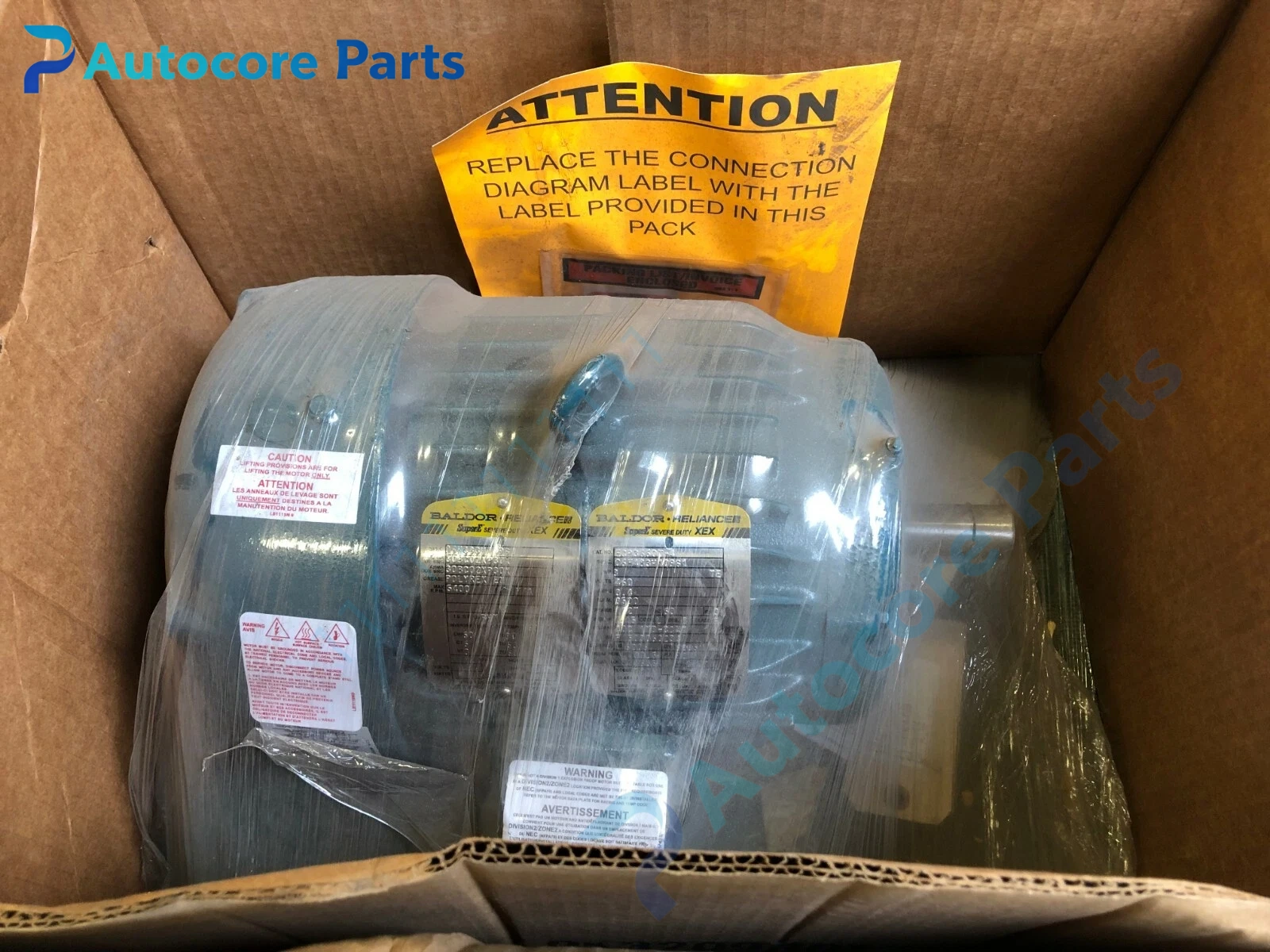

Baldor ECP3660T-4 Three Phase Induction Motor Unit

Module Feature

ECP3660T-4 belongs to Baldor Super-E ECP premium efficiency three-phase squirrel-cage induction motor. NEMA 182T cast iron foot mount frame,rated 3HP,3600RPM,230/460VAC,TEFC totally enclosed fan cooled. NEMA Premium efficiency,Design B torque characteristic,Class F insulation,service factor 1.15. Widely used for fans,pumps,compressors and general continuous-duty industrial equipment.

Working principle

Three-phase AC power generates rotating magnetic field in stator winding,induces current in squirrel-cage rotor to produce driving torque. Shaft-mounted external fan provides forced air cooling inside sealed TEFC housing. Cast iron frame improves heat dissipation and vibration resistance.

Onboard components

Cast iron motor frame,stator winding,squirrel-cage rotor assembly,ball bearings,shaft cooling fan,fan shroud,terminal box,keyed output shaft.

LED indicators

No built-in LED indicators.

Hardware self-diagnosis

Winding continuity & insulation resistance test,bearing temperature and noise inspection,fan and cover visual check,vibration measurement.

Programming software

No dedicated programming software.

Electrical & Process Parameters

Model:ECP3660T-4 Brand:Baldor Device type:Super-E ECP Premium Efficiency 3-Phase Induction Motor Power:3HP Speed:3600RPM Voltage:230/460VAC Phase:3PH Frame:182T Enclosure:TEFC Frequency:60Hz Insulation:Class F Service factor:1.15 Cooling:Shaft mounted fan forced cooling Protection:TEFC enclosure prevents dust and moisture ingress

Mechanical & Structure

Mounting:Foot mount Protection class:IP54 Housing:Cast iron housing

Environmental

Operating temperature:-10℃ ~ +40℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non-condensing Certification:CE,UL,NEMA Premium compliant Status: Baldor Super-E premium efficiency motor for continuous industrial pump,fan and compressor applications

Installation

Follow strict safety procedure before handling.Mount motor on rigid base and align coupling with load.Connect three-phase power cable to terminal box,verify rotation direction before full load commissioning.

Interface

Foot mounting holes,power terminal block,keyed shaft output interface.

Diagnostic

Fail to start:phase loss,low supply voltage or winding damage. Abnormal noise:bearing wear,loose fan or rotor imbalance. Overheat:overload,blocked cooling fan or mismatched supply voltage.

Product Brief

Baldor ECP3660T-4 Super-E 3HP NEMA 182T cast iron TEFC three-phase motor,3600RPM 230/460V,NEMA premium efficiency,for industrial fans,pumps and compressors continuous drive.
