Allied Telesis AT-MCR12 Media Converter Chassis Unit

Module Feature

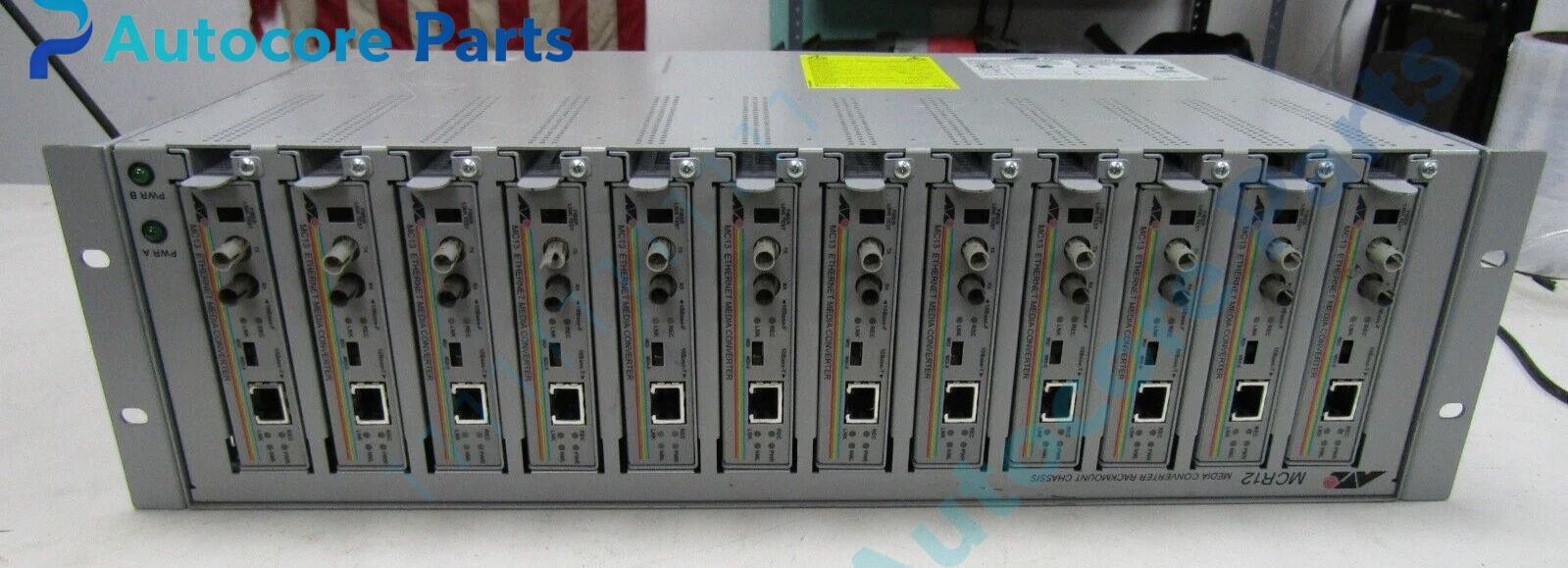

AT-MCR12 is a rack mount power distribution chassis manufactured by Allied Telesis. It provides 12 independent slots for MC1x / MC10x series standalone media converters. Built-in AT-PWR4 power supply, optional second hot-swappable power module for redundancy. Each media converter operates independently; individual units can be inserted or removed without powering down the whole chassis. Widely used in wiring closets and industrial automation network cabinets for Ethernet fiber media conversion. This model is discontinued.

Working principle

Internal backplane distributes power to each inserted media converter module. The chassis only supplies power and mechanical mounting; media conversion function is completed by the plug-in media converter. Dual power supply support enables load sharing to improve network uptime.

Onboard components

19-inch metal rack chassis,power distribution backplane,power supply slots,12 media converter bays,front panel power LED indicators,rack mounting brackets.

LED indicators

Power A LED,Power B LED for power supply status.

Hardware self-diagnosis

Power supply status monitoring,slot power detection,visual inspection of inserted media converter modules.

Programming software

No dedicated configuration software; media converters work as unmanaged devices.

Electrical & Process Parameters

Model:AT-MCR12 Brand:Allied Telesis Device type:12-Slot Media Converter Rack Chassis Mount:19 inch rack mount Slots:12 slots for standalone media converters Power supply:Built-in AT-PWR4, optional redundant hot-swap power Supported speed:10Mbps /100Mbps Cooling:Natural convection cooling Protection:Overvoltage & overcurrent protection on power distribution circuit

Mechanical & Structure

Mounting:19 inch rack mount / desktop Protection class:IP20 Housing:Metal chassis

Environmental

Operating temperature:0℃ ~ +40℃ Storage temperature:-40℃ ~ +70℃ Ambient humidity:5~90% non-condensing Certification:CE,UL,FCC compliant Status: Allied Telesis discontinued 12-slot media converter rack chassis for copper-fiber Ethernet conversion

Installation

Follow strict ESD safety procedure before handling.Mount chassis to 19-inch rack. Install primary and optional redundant power supply. Insert compatible media converter modules into slots and connect network cables.

Interface

Media converter bay slots,AC/DC power inlet.

Diagnostic

No power:power supply failure or power inlet loose. Module not working:no power on slot or faulty media converter. Power alarm:loss of one redundant power feed.

Product Brief

Allied Telesis AT-MCR12 12-slot 19-inch rack mount chassis,supports MC1x/MC10x media converters,optional redundant power supply,used for centralized 10/100 Ethernet copper to fiber conversion.
