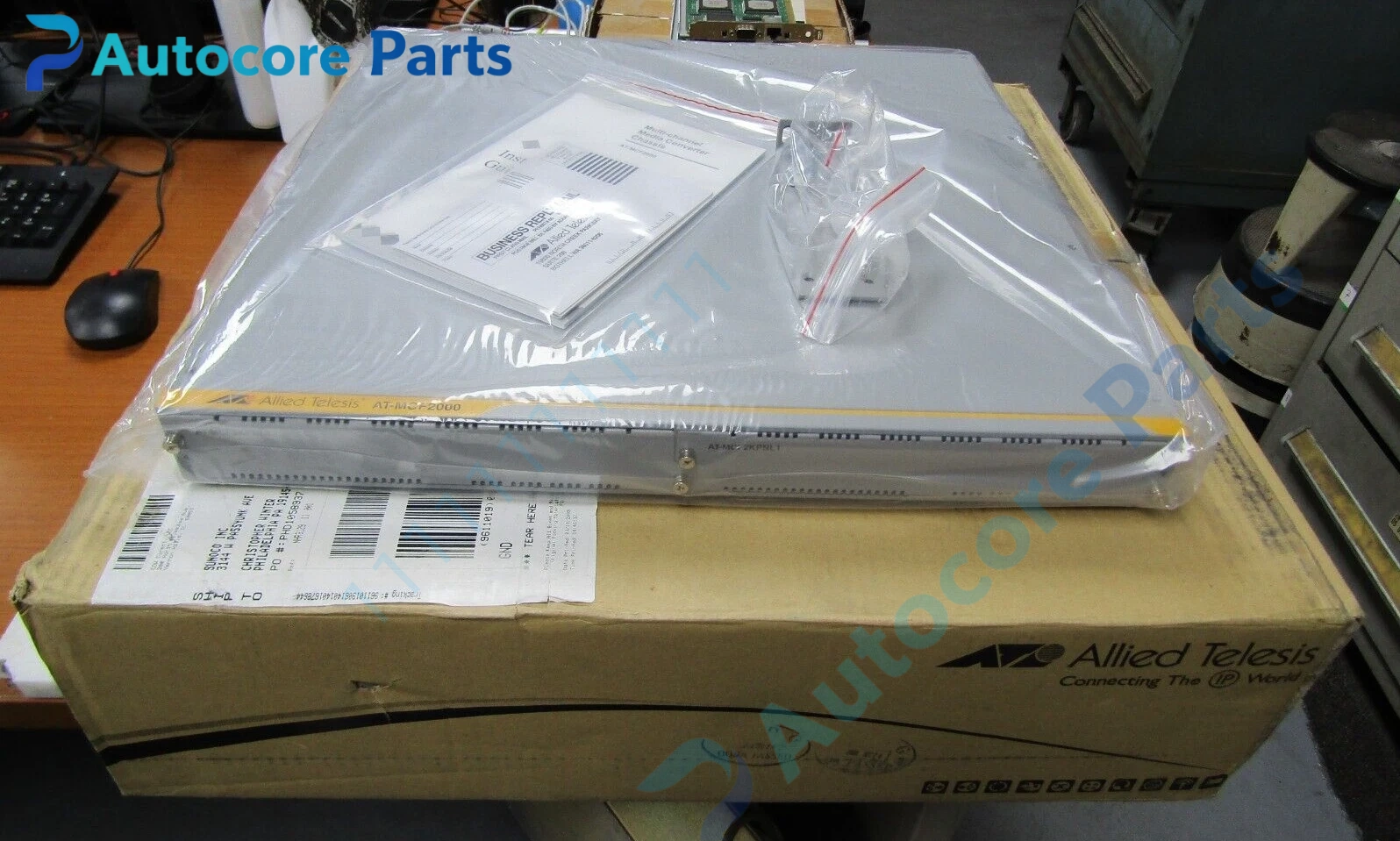

Allied Telesis AT-MCF2000 Media Converter Chassis Unit

Module Feature

AT-MCF2000 is a 1U modular media converter chassis manufactured by Allied Telesis. It adopts 2-slot card design,supports hot-swappable line cards,power supplies and management modules. Max 24 ports media conversion,works with SFP modules for fiber side. Supports SNMP,Telnet management and MissingLink function. Suitable for industrial automation,building network and long-distance Ethernet fiber transmission.

Working principle

Twisted-pair electrical Ethernet signal converts to optical fiber signal via pluggable media blades inside chassis. Management module monitors port status,link fault and alarms. Hot swap design allows module replacement without interrupting other network channels.

Onboard components

1U metal chassis,backplane bus,line card slots,power supply slot,management module slot,status LED panel,rack mounting brackets.

LED indicators

Power LED,link LED,activity LED,fault alarm LED for each port and module.

Hardware self-diagnosis

Power status detection,link signal monitoring,module presence check,temperature monitoring,fault alarm output.

Programming software

AT-S85 / AT-S97 management software,supports SNMP,parameter configuration,fault log and remote monitoring.

Electrical & Process Parameters

Model:AT-MCF2000 Brand:Allied Telesis Device type:1U Modular Media Converter Chassis Rack size:19 inch 1U rack mount Slot:2 slots for media blades Max port:24 ports Network standard:IEEE802.3,802.3u,802.3ab Interface:10/100/1000BASE-T, SFP fiber port Cooling:Forced air cooling Protection:Over temperature protection,link loss alarm,overvoltage protection

Mechanical & Structure

Mounting:19 inch rack mount / desktop Protection class:IP20 Housing:Metal chassis

Environmental

Operating temperature:0℃ ~ +40℃ Storage temperature:-40℃ ~ +70℃ Ambient humidity:5~90% non-condensing Certification:CE,UL,FCC Class A compliant Status: Allied Telesis 1U media converter chassis for industrial Ethernet fiber media conversion

Installation

Follow strict ESD safety procedure before handling.Mount chassis to 19-inch rack. Install power supply,management module and media blades. Connect copper and fiber cables,configure network parameters before commissioning.

Interface

Copper RJ45 port,SFP fiber slot,management port,power terminal.

Diagnostic

Link down:fiber/cable fault,wrong SFP module or port disable. Over temperature:fan failure or poor ventilation. Module unrecognized:bad backplane contact or faulty blade.

Product Brief

Allied Telesis AT-MCF2000 1U rack mount modular media converter chassis,support hot-swappable blades,max 24 ports,convert 10/100/1000BASE-T to fiber for industrial Ethernet long-distance communication.
