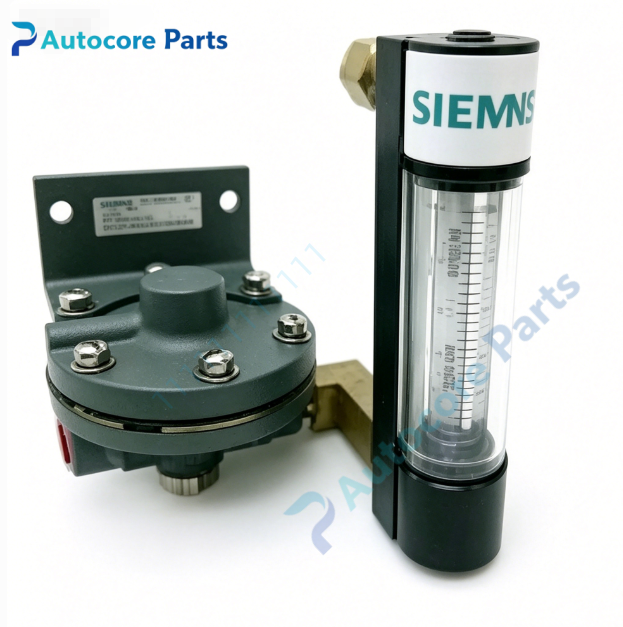

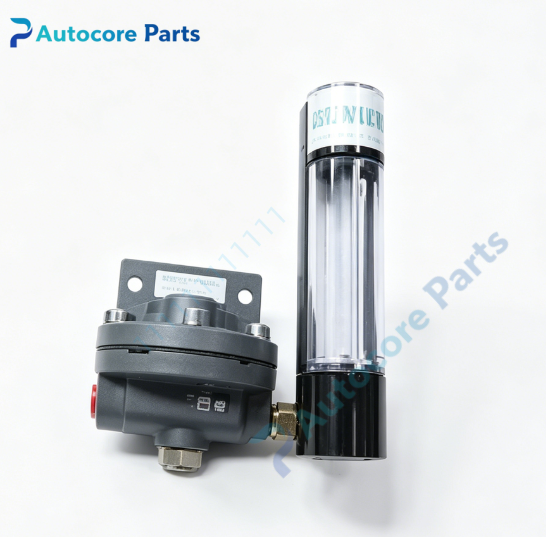

SIEMENS MOORE 62VA Pneumatic Valve Positioner

Technical SpecificationsModel:62VA Brand:SIEMENS MOORE Product Type:Pneumatic Valve Positioner Supply Air:20-100 psi Input Signal:3-15 psi pneumatic signal Mounting:Direct mount on valve actuator Operating temperature:-20℃ ~ +70℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~95%, non-condensing Weight:2.15kg Dimension:110mm140mm175mm

System compatibility62VA is compatible with standard spring-diaphragm pneumatic valve actuators. It pairs with pneumatic controllers or I/P converters to drive process control valves.

FunctionThis pneumatic valve positioner receives 3-15psi pneumatic command signal, compares it against the actual valve stem position, and adjusts instrument air output to the valve actuator. It eliminates actuator hysteresis and dead band, improves valve positioning accuracy for pressure, temperature, flow and liquid level regulation.

InstallationShut off instrument air supply before installation. Mount positioner directly on valve actuator stem bracket. Connect instrument air supply, control signal input and actuator air lines. Perform zero and span calibration after air supply is stable.

InterfacePneumatic signal ports, instrument air inlet, feedback lever and linkage for valve stem position sensing.

FeatureDirect field mount pneumatic positioner, 3-15psi standard input signal, mechanical stem feedback, compact metal housing, stable performance in harsh plant environments. Obsolete legacy spare part, used for old pneumatic control valve system maintenance and replacement.

DiagnosticValve fails to move: check instrument air supply, filter blockage, signal line leakage. Positioning drift: inspect feedback linkage, calibrate zero and span. Slow valve response: check for air line restriction or diaphragm leakage.

Product BriefSIEMENS MOORE 62VA is a field mounted pneumatic valve positioner, widely used in petrochemical, power and pulp & paper industries for pneumatic control valve precise positioning.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
