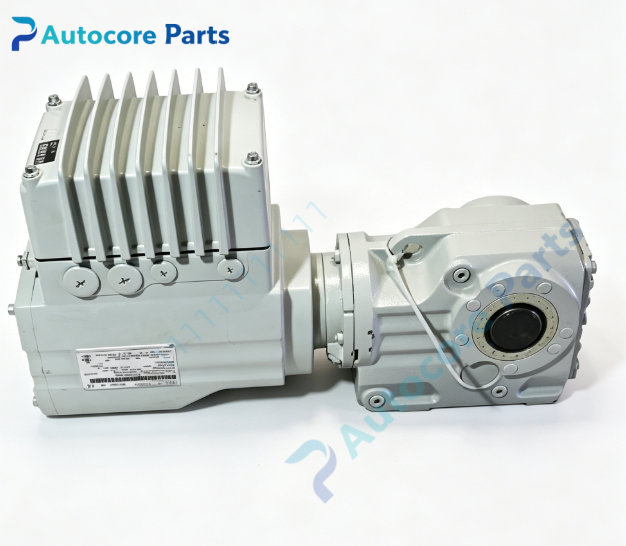

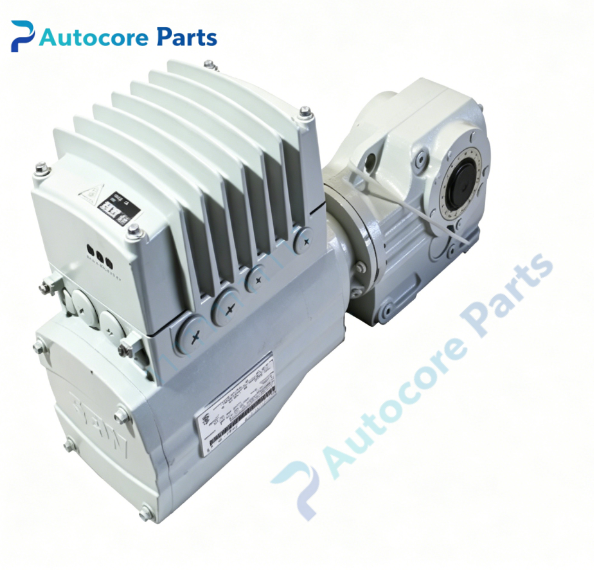

SEW DRC2-015-SNI-A Electronic Motor

Technical SpecificationsModel:DRC2-015-SNI-A Brand:SEW Product Type:Integrated Electronic Synchronous Motor Size:DRC2 Rated power:1.5kW Continuous torque:7.2Nm Peak overload:250% Efficiency class:IE4 Communication:SNI Single Line Network Installation Cooling:Natural convection Protection class:IP65 Insulation class:F Operating temperature:-20℃ ~ +40℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~85%,non-condensing Certification:CE

System compatibilityDRC2-015-SNI-A belongs to SEW DRC series decentralized electronic motor. It can be used as standalone motor or combined with SEW R,F,K,W series gear reducers to form integrated gearmotors. Compatible with SNI single-line bus system, matched with SEW fieldbus controllers. Widely used for conveying, packaging, material handling, legacy decentralized drive system maintenance and spare replacement.

FunctionThis DRC integrated electronic motor combines permanent magnet synchronous motor and built-in drive electronics into one compact unit. SNI single line network realizes power and signal transmission via one single cable, greatly simplifies field wiring. It supports speed control, positioning function and STO safety torque off. High IE4 energy efficiency reduces long-term power consumption, suitable for distributed multi-axis conveyor systems.

InstallationDisconnect main power before installation. Mount motor directly or assemble with SEW gearbox. Use SNI single cable for both power and communication connection. Install cable shielding properly to suppress electromagnetic interference. Configure motor parameters via DBG keypad before commissioning. Verify STO safety circuit wiring for safety related applications.

InterfaceSNI single line network connection port, optional brake connector, STO safety input terminals.

FeatureSEW DRC2-015-SNI-A compact decentralized mechatronic drive, 1.5kW IE4 high efficiency design. SNI single cable technology reduces wiring workload and cost. Built-in drive electronics, no separate cabinet inverter required. IP65 enclosure, dust-proof and splash-proof for on-machine installation. High overload capacity up to 250%. Discontinued legacy spare part, only for DRC series decentralized motor maintenance replacement. Suitable for distributed conveyor and packaging automation equipment.

DiagnosticMotor no rotation: SNI cable loose, communication interruption or STO safety circuit triggered; Overload alarm: mechanical jamming or excessive load; Communication drop: poor shielding, cable damage or bus terminal mismatch; Overheating: poor ventilation, continuous heavy overload; Positioning deviation: encoder fault or parameter misconfiguration.

Product BriefSEW DRC2-015-SNI-A is DRC2 size 1.5kW IE4 decentralized electronic synchronous motor with SNI single line network interface, integrated drive electronics for distributed conveyor and packaging automation.

DisclaimerAll parameters are for reference only and not the basis of quotation. Goods are scarce,overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
