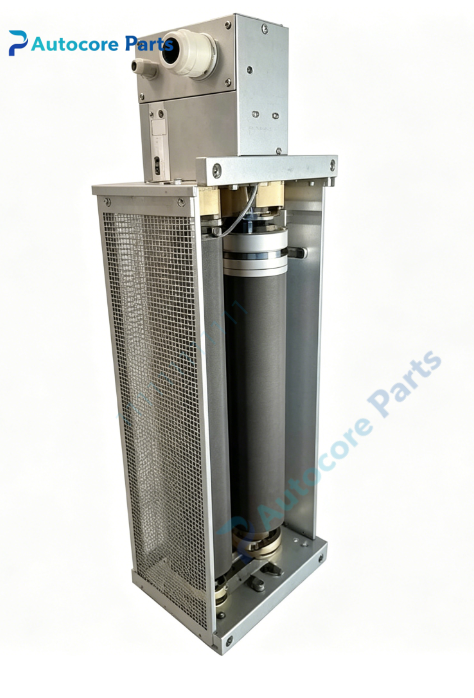

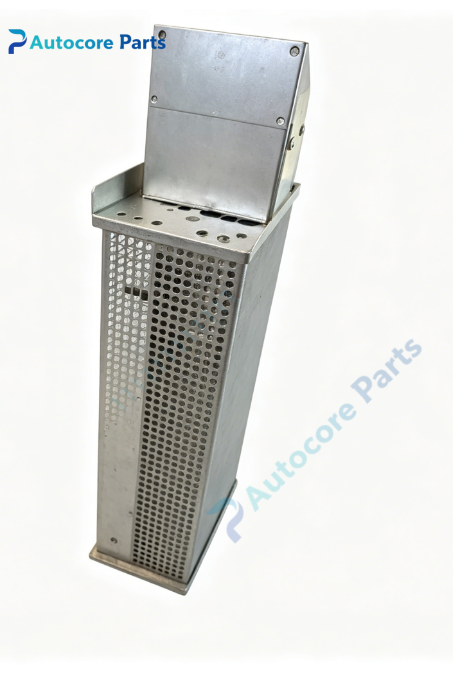

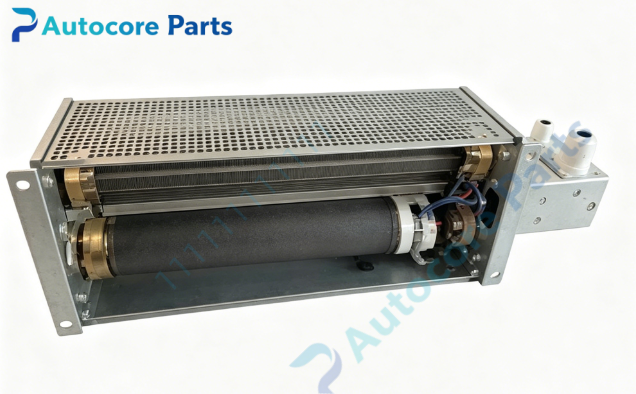

SEW BW147-T Braking Resistor

Technical SpecificationsModel:BW147-T Brand:SEW Product type:Ceramic Core Wire Wound Dynamic Braking Resistor Part No:18201342 Weight:2.0kg Dimension:240mm95mm135mm Resistance:47Ω ±10% Continuous braking power:1.2kW Peak braking power:3.6kW Protection class:IP20 Operating temperature:-20℃ ~ +40℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~85%,non-condensing Terminal:2.5mm ceramic terminal Certification:CE

System compatibilityBW147-T is SEW BW-T series braking resistor with built-in thermal sensor. Compatible with MOVIDRIVE MDX60B, MDX61B servo drives and MOVITRAC B inverters. Widely used for packaging machinery, medium conveyor and material handling equipment, legacy SEW drive system maintenance and spare replacement.

FunctionThis ceramic core wire-wound braking resistor consumes regenerative energy generated by motor deceleration. When DC bus voltage rises, drive internal brake chopper activates and releases excess energy through this resistor to suppress overvoltage fault. Integrated temperature sensor for overtemperature monitoring, sensor signal can be wired to drive fault input. Ceramic terminal design for high voltage stable connection.

InstallationPower off the drive DC bus before installation. Mount BW147-T vertically inside control cabinet, keep enough air circulation. Separate high voltage braking power cables and low voltage thermal signal wiring. Connect power terminals to drive brake port X3 (+R/-R). Wire built-in thermal sensor terminals to drive digital fault input. Test braking response and thermal alarm function after wiring.

InterfaceBrake power ceramic terminals, integrated thermal sensor terminals, shield grounding terminal.

FeatureSEW BW147-T ceramic core wire wound braking resistor. 47 ohm impedance, continuous 1.2kW rating. Built-in temperature sensor for thermal monitoring. High peak load capacity, suitable for frequent start-stop applications. High temperature resistant ceramic core winding. Discontinued legacy spare part, only for SEW servo and inverter system maintenance replacement. Suitable for medium logistics conveyor and packaging automation equipment.

DiagnosticDC bus overvoltage alarm during deceleration: resistor open circuit or loose ceramic terminal; Overtemperature fault: poor ventilation, excessive braking duty cycle; Thermal signal no feedback: temperature sensor wire break; Insulation breakdown: resistor winding damage.

Product BriefSEW BW147-T is BW-T series 47Ω 1.2kW IP20 ceramic core braking resistor with built-in thermal sensor, used to dissipate regenerative energy for SEW MOVIDRIVE and MOVITRAC servo drives and inverters.

DisclaimerAll parameters are for reference only and not the basis of quotation. Goods are scarce,overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
