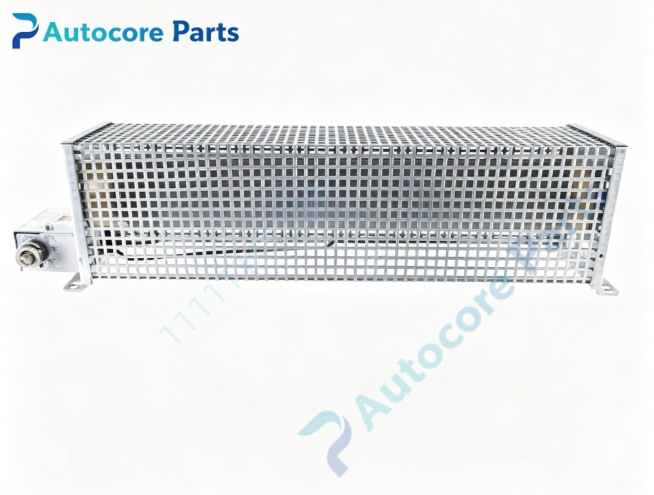

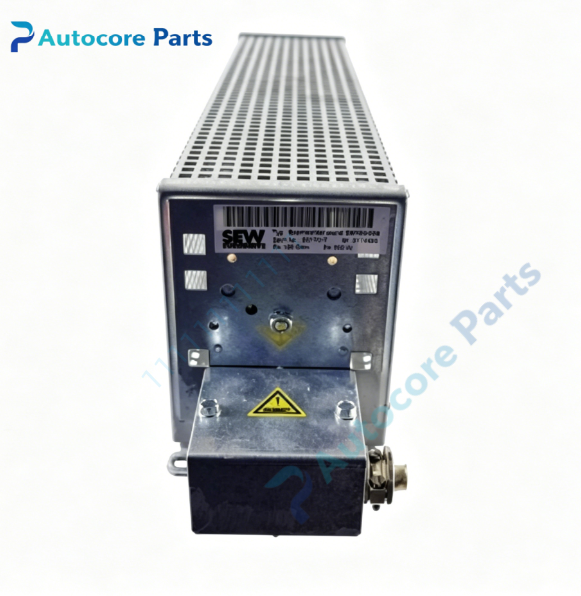

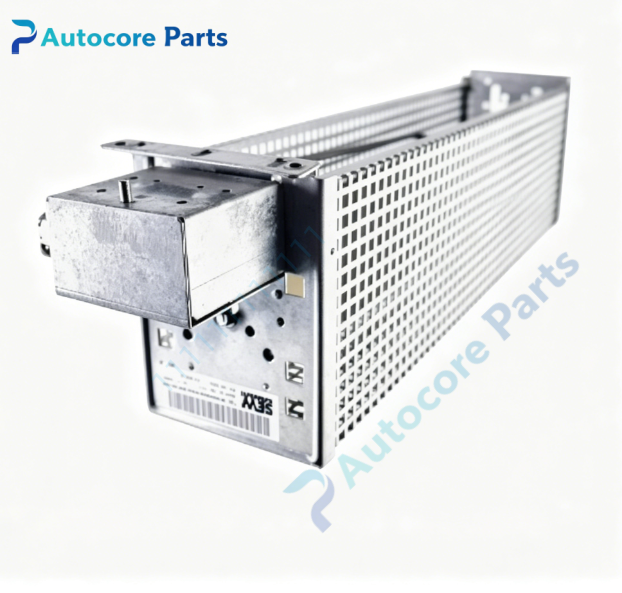

SEW BW100-006 Braking Resistor

Technical SpecificationsModel:BW100-006 Brand:SEW Product type:Wire Wound External Dynamic Braking Resistor Weight:2.6kg Dimension:260mm90mm140mm Resistance:100Ω ±10% Continuous braking power:0.6kW Protection class:IP20 Operating temperature:-20℃ ~ +40℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~85%,non-condensing Certification:CE

System compatibilityBW100-006 is SEW BW series wire-wound braking resistor. Compatible with MOVIDRIVE MDX60B, MDX61B servo drives and MOVITRAC B inverters. Widely used for packaging machinery, medium conveyor equipment, legacy SEW drive system maintenance and spare replacement.

FunctionThis wire-wound braking resistor consumes regenerative energy generated by motor deceleration. When DC bus voltage rises, the drive internal brake chopper activates and releases excess energy through this resistor to suppress overvoltage fault. Terminal block connection design, requires external thermal protection relay for overheat monitoring.

InstallationPower off the drive DC bus before installation. Mount BW100-006 vertically inside control cabinet, keep enough air circulation. Separate high voltage braking cables and low voltage control wiring. Connect resistor terminals to drive brake port X3 (+R/-R). Configure external thermal relay for overtemperature protection. Test braking function after wiring.

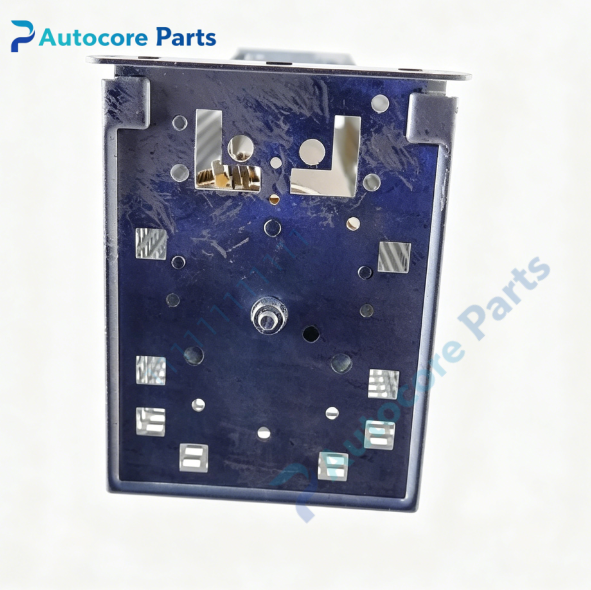

InterfaceBrake power connection terminals, shield grounding terminal.

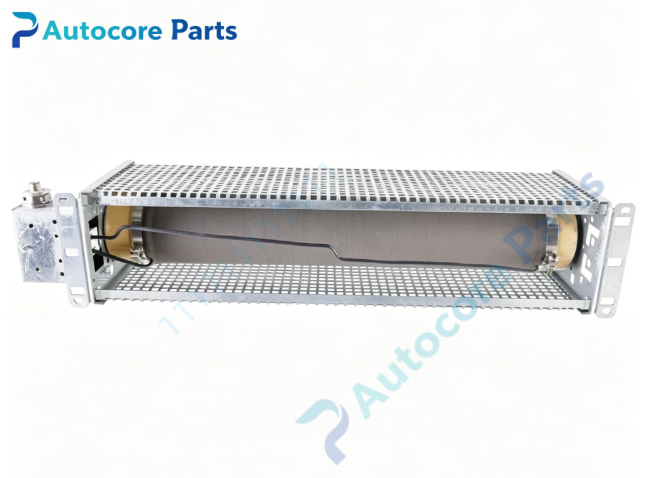

FeatureSEW BW100-006 wire wound braking resistor. 100 ohm impedance, continuous 0.6kW rating. IP20 cabinet installation type. Good peak load capacity for frequent deceleration applications. High temperature resistant winding. Discontinued legacy spare part, only for SEW servo and inverter system maintenance replacement. Suitable for packaging automation and medium logistics conveyor equipment.

DiagnosticDC bus overvoltage alarm during deceleration: resistor open circuit or loose terminal; Resistor overheat: excessive braking duty cycle; No braking action: drive brake chopper not triggered; Insulation breakdown: resistor winding damage.

Product BriefSEW BW100-006 is BW series 100Ω 0.6kW IP20 wire wound braking resistor, used to dissipate regenerative energy for SEW MOVIDRIVE and MOVITRAC servo drives and inverters.

DisclaimerAll parameters are for reference only and not the basis of quotation. Goods are scarce,overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
