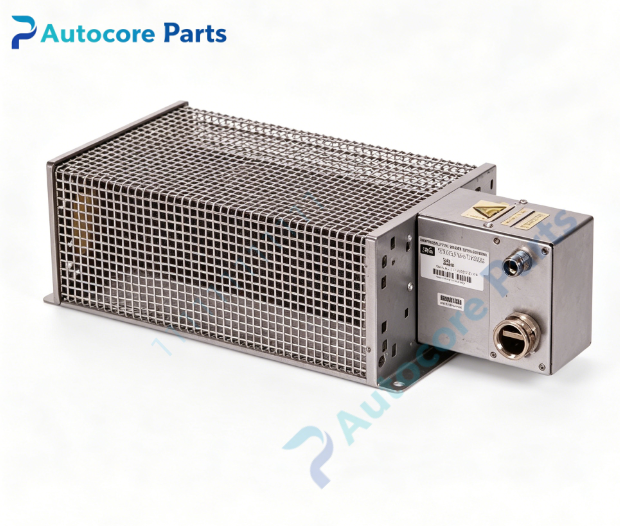

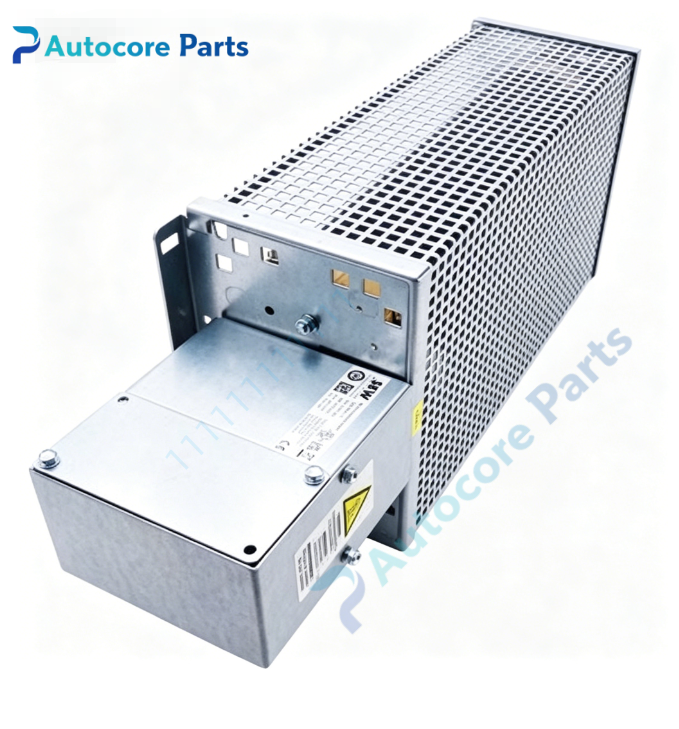

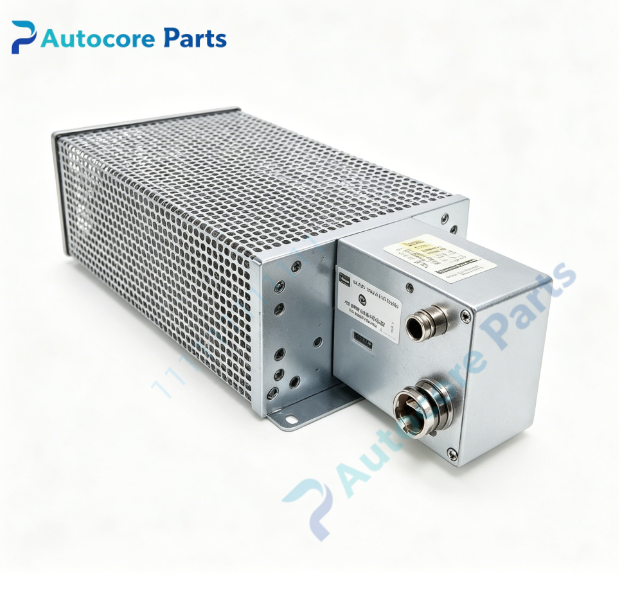

SEW BW168-T Braking Resistor

Technical SpecificationsModel:BW168-T Brand:SEW Product type:Ceramic Core Wire Wound Dynamic Braking Resistor Part No:18201334 Weight:3.0kg Dimension:250mm100mm140mm Resistance:68Ω ±10% Continuous braking power:0.8kW Peak braking power:2.4kW Protection class:IP20 Operating temperature:-20℃ ~ +40℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~85%,non-condensing Terminal:2.5mm ceramic terminal Certification:CE

System compatibilityBW168-T is SEW BW-T series braking resistor equipped with built-in thermal switch. Compatible with MOVIDRIVE MDX60B, MDX61B servo drives and MOVITRAC B inverters. Widely used for packaging machinery, medium conveyor and material handling equipment, legacy SEW drive system maintenance and spare replacement.

FunctionThis ceramic core wire-wound braking resistor consumes regenerative energy generated during motor deceleration. When DC bus voltage exceeds threshold, the drive internal brake chopper will activate and release surplus energy through this resistor to avoid DC bus overvoltage fault. The integrated thermal switch provides overtemperature monitoring, thermal signal can be wired to drive digital fault input. Ceramic terminals ensure stable high-voltage connection.

InstallationPower off the drive DC bus before installation. Mount BW168-T vertically inside control cabinet, reserve sufficient space for air cooling. Separate high-voltage braking power cables and low-voltage thermal signal wiring. Connect power ceramic terminals to drive brake port X3 (+R/-R). Wire built-in thermal switch terminals to drive fault input. Test braking response and thermal alarm function after wiring completion.

InterfaceBrake power ceramic terminals, integrated thermal switch terminals, shield grounding terminal.

FeatureSEW BW168-T ceramic core wire wound braking resistor. 68 ohm impedance, continuous 0.8kW rating. Built-in thermal switch for overheat monitoring. High peak load capacity, suitable for equipment with frequent start-stop and deceleration cycles. High temperature resistant ceramic winding structure. Discontinued legacy spare part, only used for maintenance replacement of SEW servo and inverter drive systems. Suitable for medium logistics conveyor and packaging automation equipment.

DiagnosticDC bus overvoltage alarm during deceleration: resistor open circuit or loose ceramic terminal; Overtemperature fault: poor cabinet ventilation or excessive braking duty cycle; No thermal alarm feedback: thermal switch wire breakage; Insulation breakdown: internal winding damage of resistor.

Product BriefSEW BW168-T is BW-T series 68Ω 0.8kW IP20 ceramic core braking resistor with built-in thermal switch, used to dissipate regenerative energy for SEW MOVIDRIVE and MOVITRAC servo drives and inverters.

DisclaimerAll parameters are for reference only and not the basis of quotation. Goods are scarce,overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
