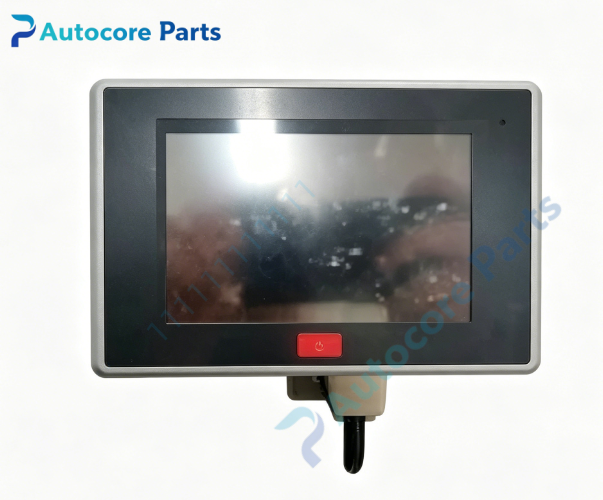

SEW DOP11C-51 Operator Terminal

Technical SpecificationsModel:DOP11C-51 Brand:SEW Product Type:Color Touchscreen HMI Operator Terminal Display:5" TFT LCD,800×480 pixels(16:9),64k colors,LED backlight Touch:Resistive touch panel Processor:ARM9 400MHz Memory:128MB DDR2 RAM,200MB application flash Power supply:DC24V Communication:2×RS232,RS422/RS485,10/100Mbps Ethernet Expansion:SD card slot,USB host port Front protection class:IP65 Mounting:Cabinet cutout panel mounting Operating temperature:0℃ ~ +50℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~85%,non-condensing Certification:CE

System compatibilityDOP11C-51 belongs to SEW DOP11C series HMI terminal. Compatible with SEW MOVIDRIVE series inverters, MOVI-PLC controllers and mainstream third-party PLC. Widely used for packaging machines, conveyor systems and automated assembly lines, for legacy automation system maintenance and spare replacement.

FunctionThis color touch HMI supports real-time process data display, drive parameter modification, manual start/stop control, alarm log and recipe management. Programmed via HMI-Builder.PRO engineering software. It supports data logging and project backup via SD card or USB storage. Built-in web server enables remote monitoring. Multiple communication interfaces realize simultaneous connection with SEW drives and PLC controllers.

InstallationCut off 24VDC power before installation. Insert panel into cabinet cutout and fasten mounting clips. Wire DC24V power, serial and Ethernet cables. Separate signal cables from high-power cables to reduce electromagnetic interference. Download HMI project via Ethernet, serial port or SD card before commissioning.

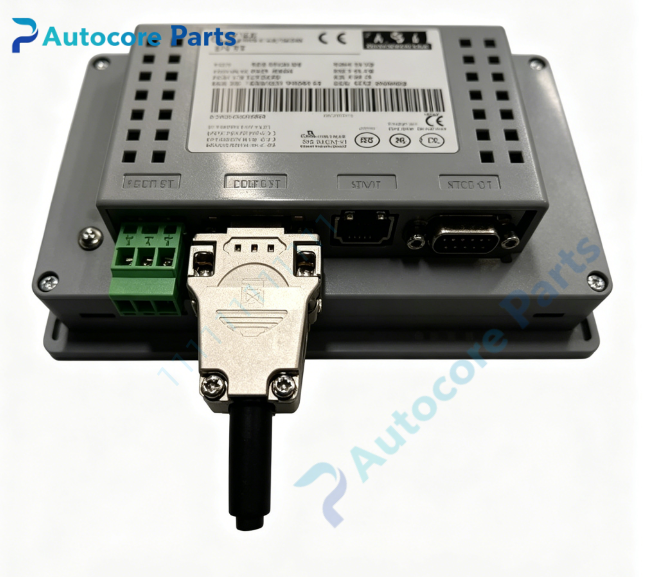

Interface2×RS232, RS422/RS485 serial ports, RJ45 Ethernet, SD card slot, USB port, DC24V power terminals.

FeatureSEW DOP11C-51 compact 5-inch wide screen HMI, high resolution TFT color display. IP65 front panel, dustproof and splashproof for industrial workshop. Equipped with SD and USB interface for easy project backup and data recording. Powerful ARM processor supports complex visualization projects. Discontinued legacy spare part, only for DOP11C series HMI maintenance replacement. Suitable for motion control, packaging and material handling automation equipment.

DiagnosticNo screen backlight: missing 24VDC supply or loose power terminal; Touch unresponsive: touch panel damage or touch calibration error; Communication failure: mismatched baud rate, wrong IP address or damaged communication cable; Project loading failed: corrupted project file or SD/USB media failure; Data logging abnormal: insufficient storage space.

Product BriefSEW DOP11C-51 is DOP11C series 5" 800×480 color resistive touch HMI terminal with multi serial, Ethernet, SD and USB interfaces, used for local operation, real-time monitoring and fault visualization of SEW drive and PLC automation systems.
