SEW DOP11B-30 Operator Terminal

Technical SpecificationsModel:DOP11B-30 Brand:SEW Product Type:Color Touchscreen HMI Operator Terminal Part No:18209696 Display:5.7" STN color touch screen, 320×240 pixels, 64k colors, backlight Power supply:DC24V,450mA Application memory:12MB Communication:RS232, RS422/RS485, RJ45 Ethernet, USB port Front protection class:IP66 Mounting:Horizontal or vertical cabinet cutout mounting Operating temperature:0℃ ~ +50℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~85%,non-condensing Certification:CE

System compatibilityDOP11B-30 belongs to SEW DOP11B series HMI terminal. It can communicate with SEW MOVIDRIVE series inverters and mainstream PLC systems. Widely applied on packaging machines, conveyor systems and automated assembly lines, for legacy automation system maintenance and spare replacement.

FunctionThis color touch HMI supports real-time data visualization, drive parameter modification, equipment start-stop operation, alarm display and recipe management. It uses HMI-Builder engineering software for screen programming and project download. Multiple communication interfaces enable simultaneous connection with SEW drives and third-party controllers. It supports alarm logging and data recording for on-site troubleshooting.

InstallationCut off 24VDC power before installation. Install via cabinet panel cutout mounting and lock mounting clips. Wire DC24V power, serial communication and Ethernet cables. Separate signal wiring from high-power cables to reduce electromagnetic interference. Download HMI project via serial or Ethernet port before commissioning.

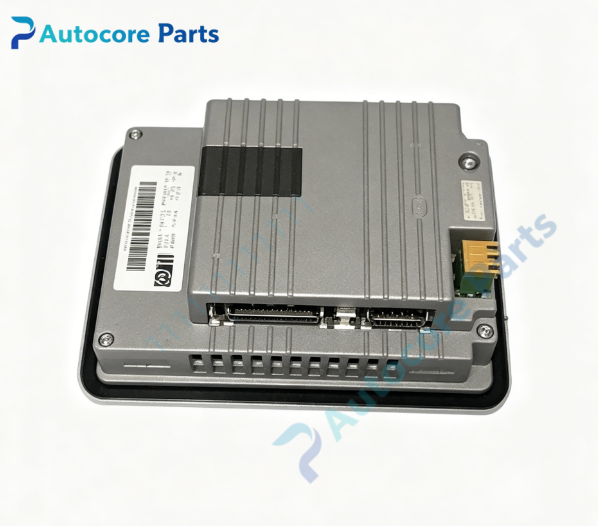

InterfaceRS232, RS422/RS485 serial ports, RJ45 Ethernet, USB port, DC24V power terminals, expansion slot.

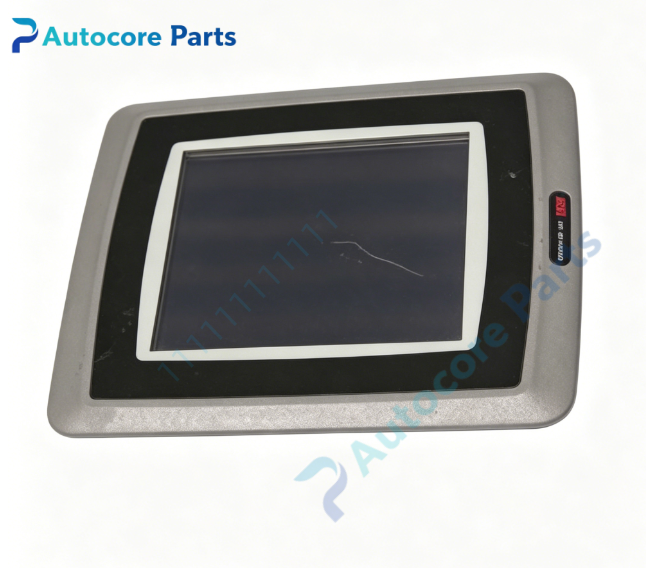

FeatureSEW DOP11B-30 5.7-inch color touch HMI, high contrast STN color display with backlight. IP66 front panel, dustproof and splashproof, suitable for harsh workshop environment. Equipped with Ethernet and multi-serial ports for flexible networking. Built-in 12MB flash memory for HMI project storage. Discontinued legacy spare part, only for DOP11B series HMI maintenance replacement. Suitable for medium-complexity motion control visualization and local operation.

DiagnosticNo screen backlight: missing 24VDC supply or loose power terminal; Touch unresponsive: touch panel damage or calibration error; Communication failure: mismatched baud rate, wrong IP address or damaged cable; Project cannot download: Ethernet/serial port setting error; Screen flickering: unstable 24V power supply.

Product BriefSEW DOP11B-30 is DOP11B series 5.7" color touchscreen HMI terminal with Ethernet, USB and multi serial interfaces, used for local operation, data monitoring and fault visualization of SEW drive and PLC automation systems.

DisclaimerAll parameters are for reference only and not the basis of quotation. Goods are scarce,overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
