Sanyo Denki PQM0A100EXXYST Servo Amplifier

Module Feature

Sanyo Denki PQM0A100EXXYST belongs to SANMOTION series AC servo amplifier. It is 200V class single/three phase input servo drive, designed to drive Sanyo Denki P series AC servo motors. Supports position, speed and torque three control modes. Built-in pulse command input, analog speed/torque input and serial communication interface. Multiple safety protection functions including overcurrent, overvoltage, undervoltage, overheat, overload and encoder error protection. DIN rail cabinet mounting, compact housing structure. Widely used for motion axis control in semiconductor wet bench and chemical delivery automation equipment.

Working principle: The servo drive receives motion command signal from host controller. It converts AC input power into three-phase variable frequency AC power to drive servo motor. It receives encoder feedback signal from motor in real time, closed-loop calculation to adjust output current, realize precise position, speed and torque control. When fault occurs, the drive will cut off motor output immediately and output alarm signal.

Onboard components:Main control PCB, power IGBT module, pulse input terminal block, encoder feedback port, status LED indicators, DC power terminal, brake control terminal

LED indicatorsFront panel LED indicators for power, ready, servo enable, alarm and communication status.

Hardware self-diagnosis

Visual inspection of power terminals and encoder port; power-on self-test; input voltage detection; motor wiring test; alarm code reading and loopback signal test.

Programming software

Sanyo Denki SANMOTION setup software, used for motor parameter auto recognition, gain tuning, command mode setting, fault log readout.

Electrical & Process Parameters

Input voltage:AC200V class (single/3 phase) Control mode:Position / Speed / Torque Command input:Pulse train, analog signal, serial communication Protection:Overcurrent, overvoltage, undervoltage, overheat, overload, encoder fault Mounting:DIN rail

Mechanical & Structure

Mounting:Cabinet DIN rail installation Protection class:IP20

Environmental

Operating temperature:0℃ ~ +50℃ Ambient humidity:5~95% non-condensing Certification:CE compliant Status:Sanyo Denki SANMOTION AC servo drive

System compatibility

Compatible with Sanyo Denki P series servo motors such as P50B series, used for automation equipment positioning axis control.

Function

PQM0A100EXXYST servo drive manufactured by Sanyo Denki. It acts as power drive and closed-loop controller for servo motor. Wrong encoder wiring, overloaded load or parameter mismatch will trigger servo alarm and stop motion. It is core motion control driver for wet bench automation equipment.

Installation

Follow lockout/tagout safety procedure before installation. Power off the system. Mount servo drive on DIN rail. Wire AC power, motor power cable and encoder feedback cable. Connect control signal wiring. Set motor parameters via configuration software, perform jog test and positioning test before formal operation.

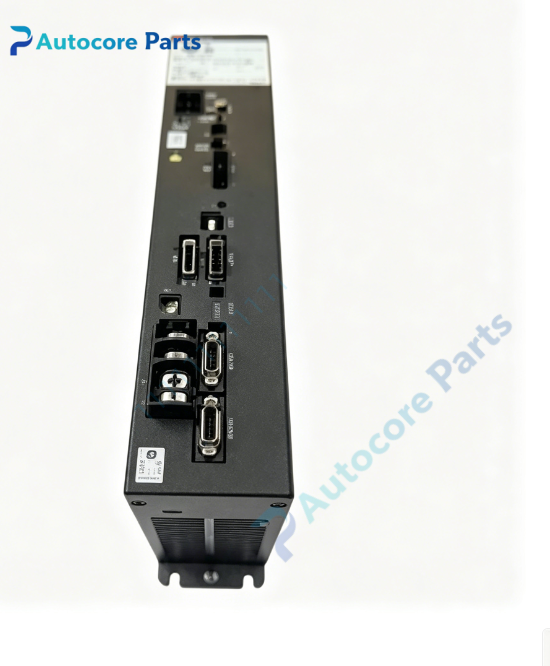

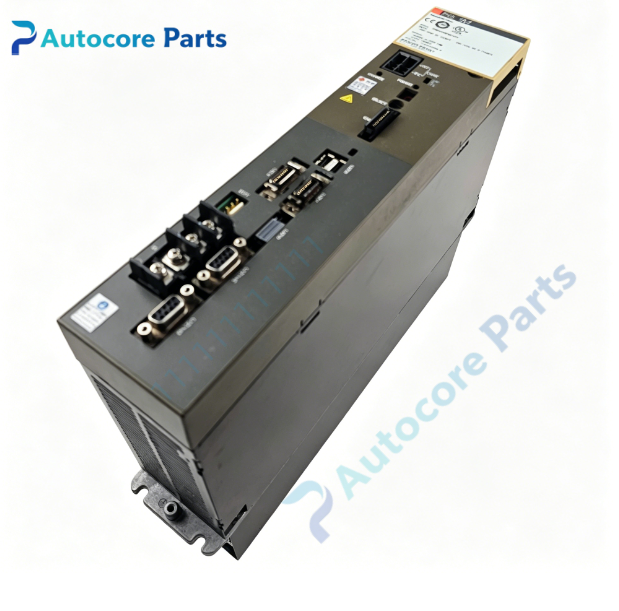

InterfaceAC power input terminal, motor power output terminal, encoder feedback connector, control signal pulse terminal block, front status LED indicators on housing of PQM0A100EXXYST.

Diagnostic

Servo not ready:Power missing or internal hardware fault. Motor no movement:Enable signal missing, command wiring error or parameter mismatch. Overload alarm:Mechanical stuck, load too heavy or motor damage. Encoder alarm:Encoder cable broken, poor contact or encoder failure.

Product Brief

PQM0A100EXXYST Sanyo Denki SANMOTION AC servo drive,AC200V class,supports position/speed/torque control,DIN rail mount,matching P series servo motors,for semiconductor wet bench and chemical delivery equipment motion axis control.
