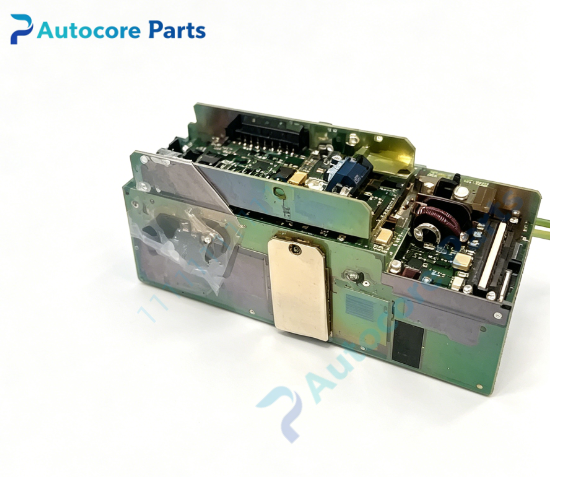

Sanyo Denki A8PU10ABFW02 Servo Amplifier

Module Feature

Sanyo Denki A8PU10ABFW02 belongs to SANMOTION PU series digital AC servo amplifier. AC200V single/three phase input, rated capacity 1.0kW. Adopts current and speed dual closed-loop digital control, fast dynamic response and low speed fluctuation. Supports position, speed, torque three control modes, accepts pulse train and analog command input. Built-in comprehensive protection functions including overcurrent, overvoltage, undervoltage, overheat, overload, encoder fault and emergency stop protection. DIN rail compact mounting design, easy to install inside electrical control cabinet. Widely used for medium load motion axis control in semiconductor wet bench and chemical delivery automation equipment.

Working principle: The servo drive receives motion command from upper controller. It converts input AC power into three-phase variable frequency AC power to drive matched servo motor. The encoder feeds back real-time position and speed signal to amplifier, the controller executes high-speed closed-loop calculation to adjust output current, realizing precise torque, speed and position control. When fault condition is detected, the amplifier will immediately cut off power output and trigger alarm signal to upper system.

Onboard components:Power IGBT module,digital main control PCB,pulse / analog command terminal block,encoder feedback port,DC bus terminal,front LED status indicators,emergency stop terminal

LED indicatorsFront panel LED indicators for power, servo ready, enable state, fault alarm and communication status.

Hardware self-diagnosis

Visual inspection of power terminals and encoder connector; power-on self-test; input voltage detection; motor wiring continuity check; read alarm code and verify signal loop.

Programming software

Sanyo Denki SANMOTION setup software for motor parameter auto recognition, servo gain tuning, command mode configuration and alarm log reading.

Electrical & Process Parameters

Input voltage:AC200V class (single / 3 phase) Rated capacity:1.0kW Control mode:Position / Speed / Torque Command input:Pulse train, analog signal Protection:Overcurrent, overvoltage, undervoltage, overheat, overload, encoder fault, E-stop Mounting:DIN rail

Mechanical & Structure

Mounting:Cabinet DIN rail installation Protection class:IP20

Environmental

Operating temperature:0℃ ~ +50℃ Ambient humidity:5~95% non-condensing Certification:CE compliant Status:Sanyo Denki SANMOTION PU series digital AC servo amplifier

System compatibility

Matched with Sanyo Denki PU series 1.0kW servo motors for automation medium load axis positioning.

Function

A8PU10ABFW02 servo drive manufactured by Sanyo Denki. It provides power drive and closed-loop motion control for matched servo motor, delivers fast response and high precision positioning. Incorrect encoder wiring, mechanical overload or improper parameter setting will trigger servo alarm and stop movement. It is digital motion control driver for semiconductor wet bench and chemical delivery automation equipment.

Installation

Follow lockout/tagout safety procedure before installation. Cut off power of the whole servo system. Mount servo drive on DIN rail and reserve heat dissipation clearance. Wire AC power cable, motor power cable and encoder feedback cable. Connect control signal and emergency stop circuit. Configure parameters via SANMOTION software, perform jog test and positioning verification before formal operation.

InterfaceAC power input terminal, motor power output terminal, encoder feedback connector, pulse/analog signal terminal block, emergency stop terminal, front LED indicators on housing of A8PU10ABFW02.

Diagnostic

Servo not ready:Power supply missing or internal hardware damage. Motor no rotation:Servo enable signal missing, wrong wiring or incorrect motor parameters. Overload alarm:Mechanical jam, over load or motor winding defect. Encoder alarm:Cable broken, poor contact or encoder failure.

Product Brief

A8PU10ABFW02 Sanyo Denki SANMOTION PU series 1.0kW AC servo drive,AC200V class,digital dual loop control,supports pulse/analog command,DIN rail mount,matching PU series servo motors,for semiconductor wet bench and chemical delivery medium load precision motion axis control.
